1 peripheral interface connectors, 1 layout, Eripheral – IEI Integration KINO-945GSE2 User Manual
Page 29: Nterface, Onnectors
KINO-945GSE2 Motherboard
Page 17
3.1 Peripheral Interface Connectors
This chapter outlines all internal and external connectors on the KINO-945GSE2.
3.1.1 Layout
Figure 3-1 shows the on-board peripheral connectors, rear panel peripheral connectors
and on-board jumpers.

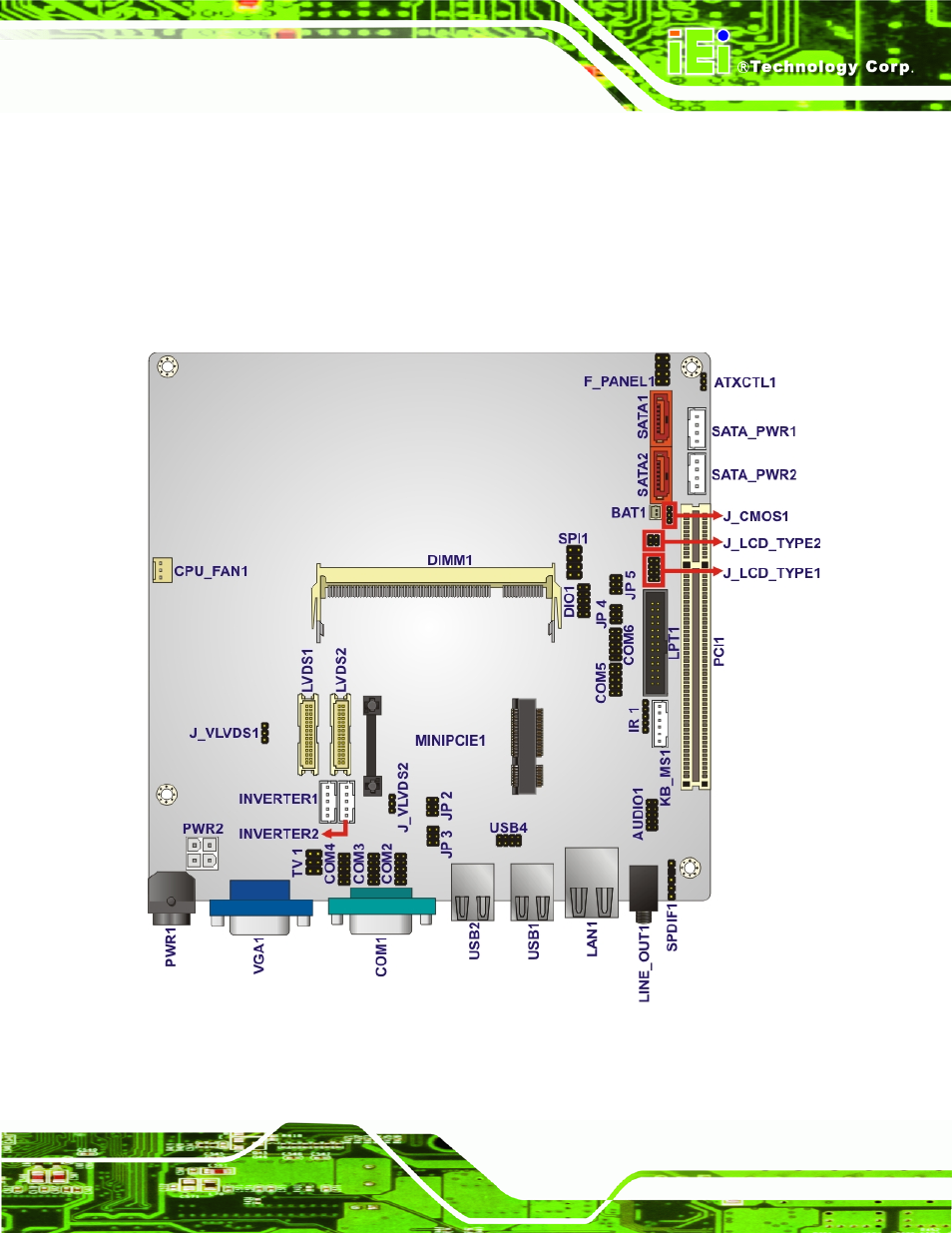

Figure 3-1: Connector and Jumper Locations [Front Side]
