KINO-945GSE2 Motherboard

Page 31

3.2.12 Parallel Port Connector

CN Label:

LPT1

CN Type:

26-pin box header

CN Location:

See Figure 3-13

CN Pinouts:

See Table 3-14

The parallel port connector connects to a parallel port connector interface or some other

parallel port device such as a printer.

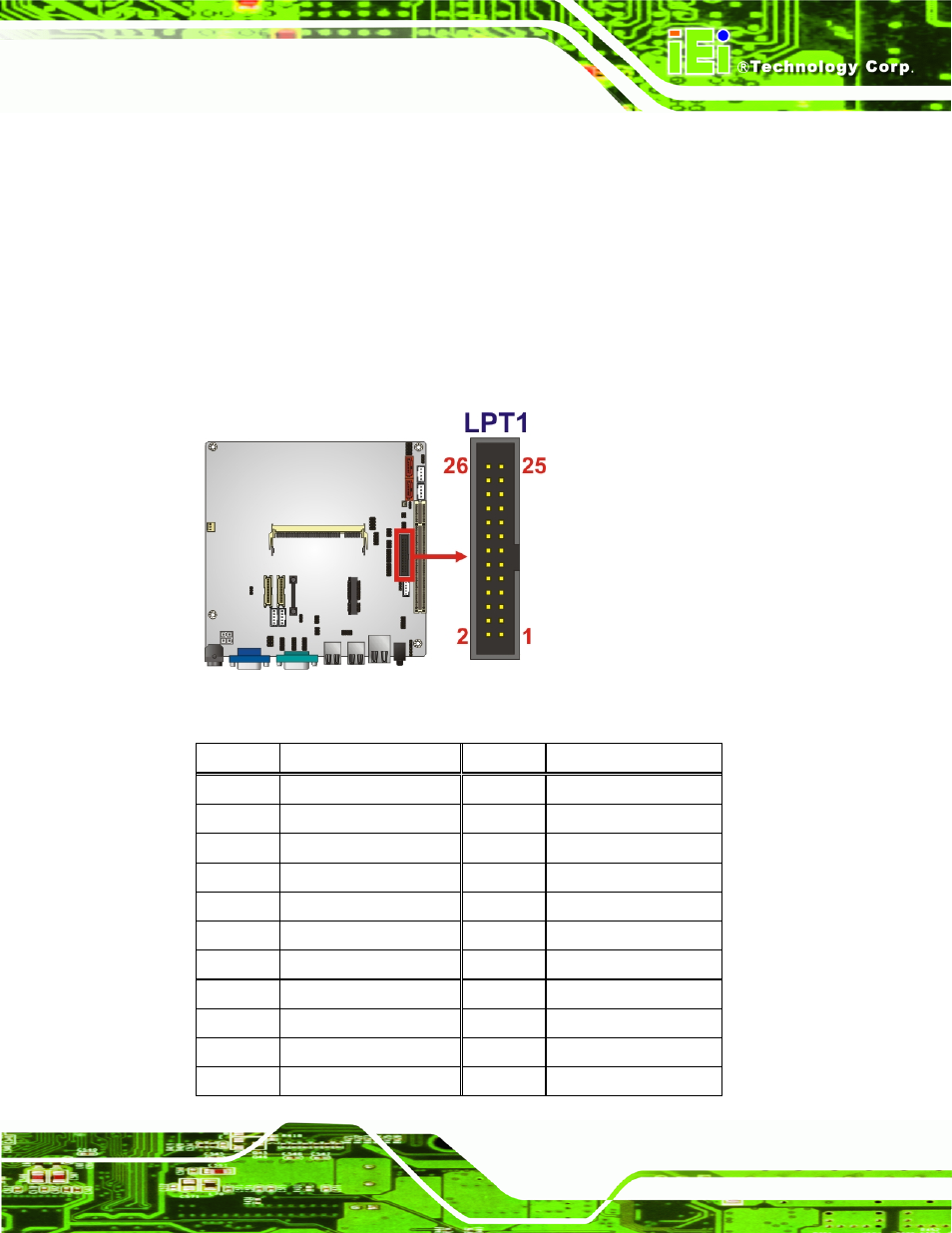

Figure 3-13: Parallel Port Connector Location

Pin Description

Pin Description

1 STROBE#

2 AUTO

FORM

FEED#

3 DATA

0

4 ERROR#

5 DATA

1

6 INITIALIZE#

7

DATA 2

8

PRINTER SELECT LN#

9 DATA

3

10

GND

11 DATA

4

12 GND

13 DATA

5

14 GND

15 DATA

6

16 GND

17 DATA

7

18 GND

19 ACKNOWLEDGE# 20 GND

21 BUSY

22 GND
