KINO-945GSE2 Motherboard

Page 29

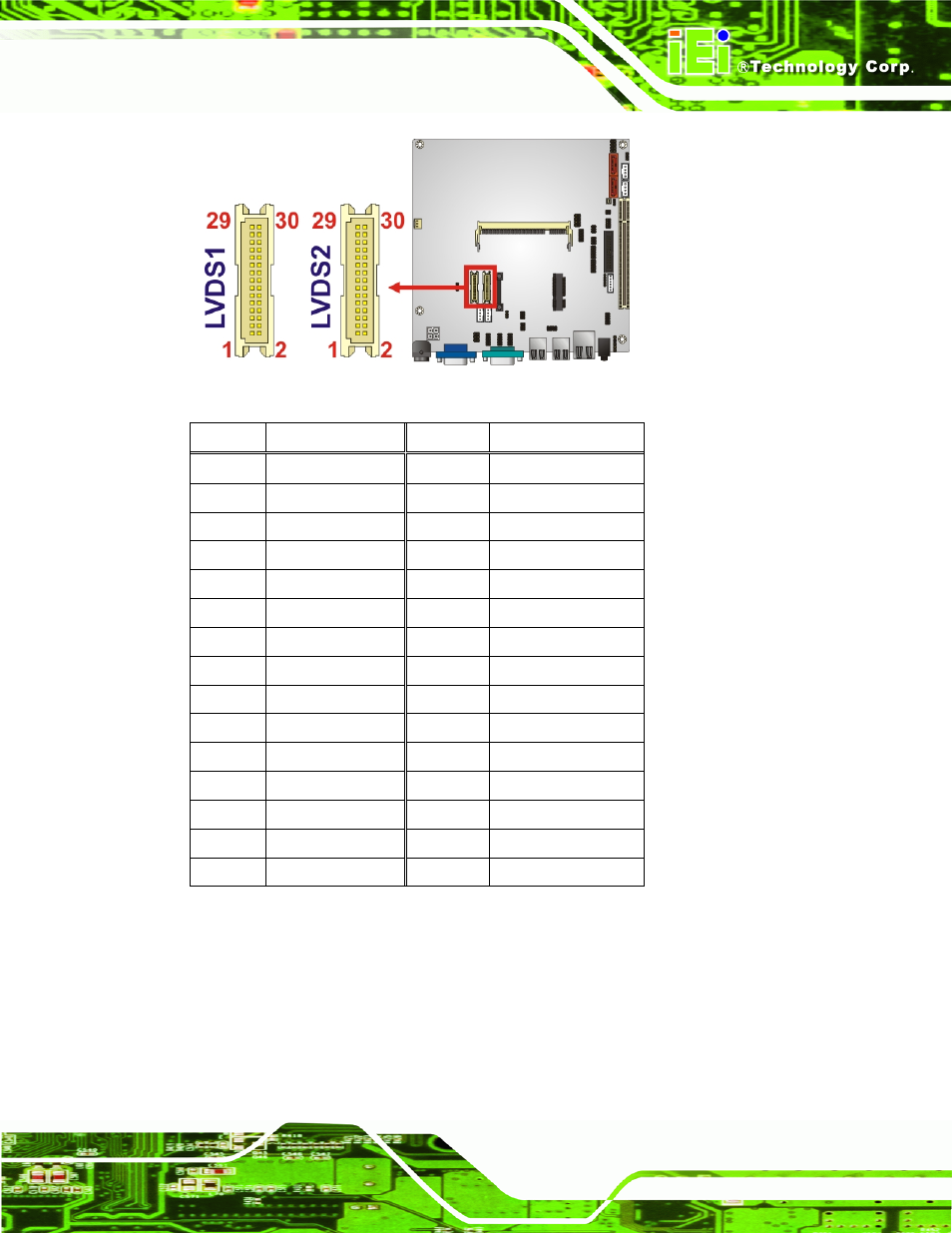

Figure 3-11: LVDS LCD Connector Pinout Locations

Pin Description Pin Description

1 GND1

2 GND2

3 A_Y0+

4 A_Y0-

5 A_Y1+

6 A_Y1-

7 A_Y2+

8 A_Y2-

9 A_CLK+

10 A_CLK-

11 N/C

12 N/C

13 GND3

14 GND4

15 B_Y0+

16 B_Y0-

17 B_Y1+

18 B_Y1-

19 B_Y2+

20 B_Y2-

21 B_CLK+

22 B_CLK-

23 N/C

24 N/C

25 GND5

26 GND6

27 VCC_LCD

28 VCC_LCD

29 VCC_LCD

30 VCC_LCD

Table 3-12: LVDS LCD Port Connector Pinouts

3.2.11 LVDS2 LCD Connector

CN Label:

LVDS2

CN Type:

30-pin crimp

CN Location:

See Figure 3-11
