KINO-945GSE2 Motherboard

Page 43

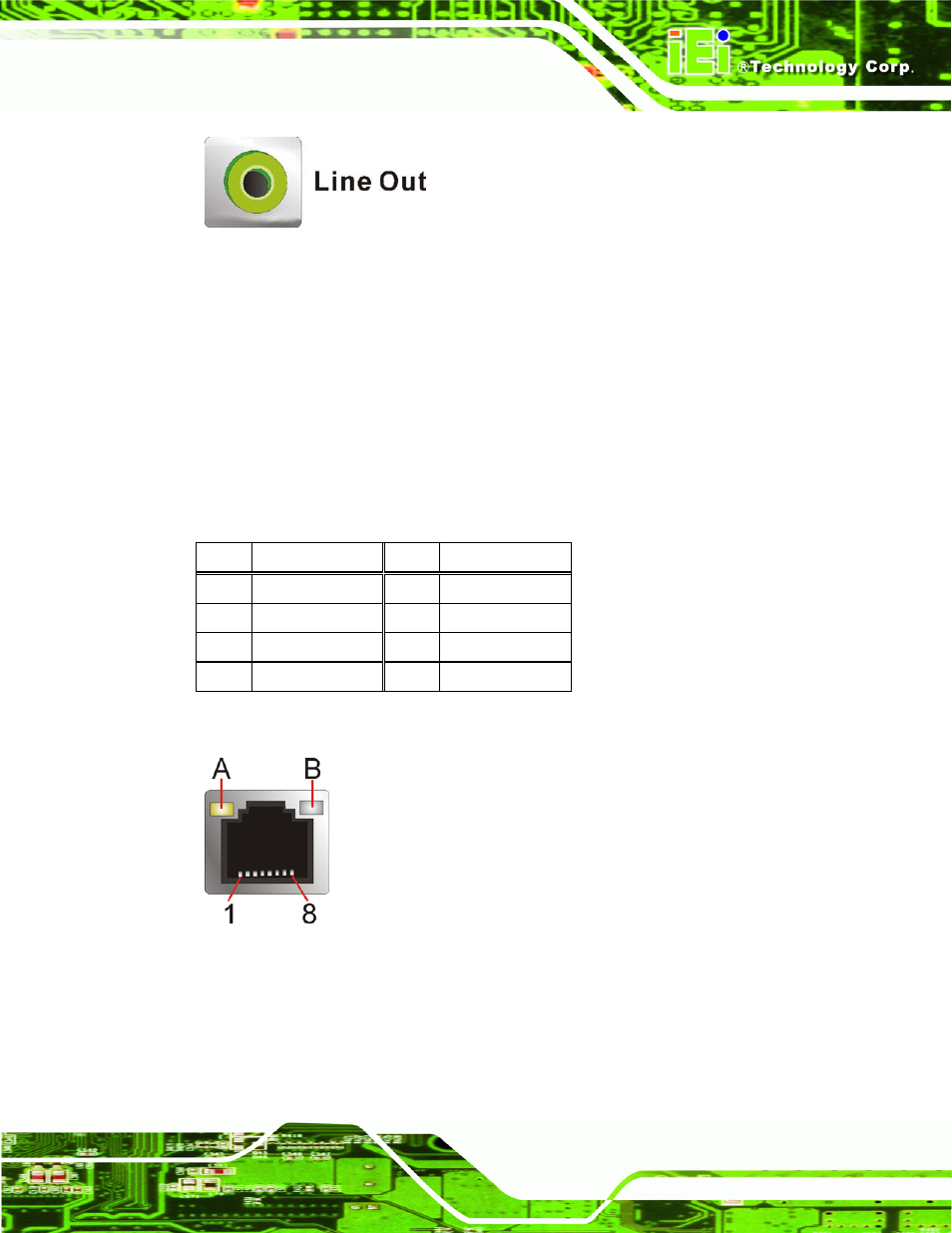

Figure 3-24: Audio Connector

3.3.3 LAN Connector

CN Label:

LAN1

CN Type:

RJ-45

CN Location:

See Figure 3-23

CN Pinouts:

See Table 3-25

A 10/100/1000 Mb/s connection can be made to a Local Area Network.

Pin Description

1 MDIA3-

5 MDIA1+

2 MDIA3+

6 MDIA2+

3 MDIA2-

7 MDIA0-

4 MDIA1-

8 MDIA0+

Table 3-25: Ethernet Connector Pinouts

Figure 3-25: Ethernet Connector
