KINO-945GSE2 Motherboard

Page 36

3.2.16 Serial Port Connectors (RS-232)

CN Label:

COM2, COM3, COM4, COM5 & COM6

CN Type:

10-pin header

CN Location:

See

6

Figure 3-17

CN Pinouts:

See

6

Table 3-18

The 10-pin serial port connectors provide RS-232 serial communications channels. The

COM serial port connectors can be connected to external RS-232 serial port devices.

COM3 uses JP2 for RS-422 and RS-485 connectivity.

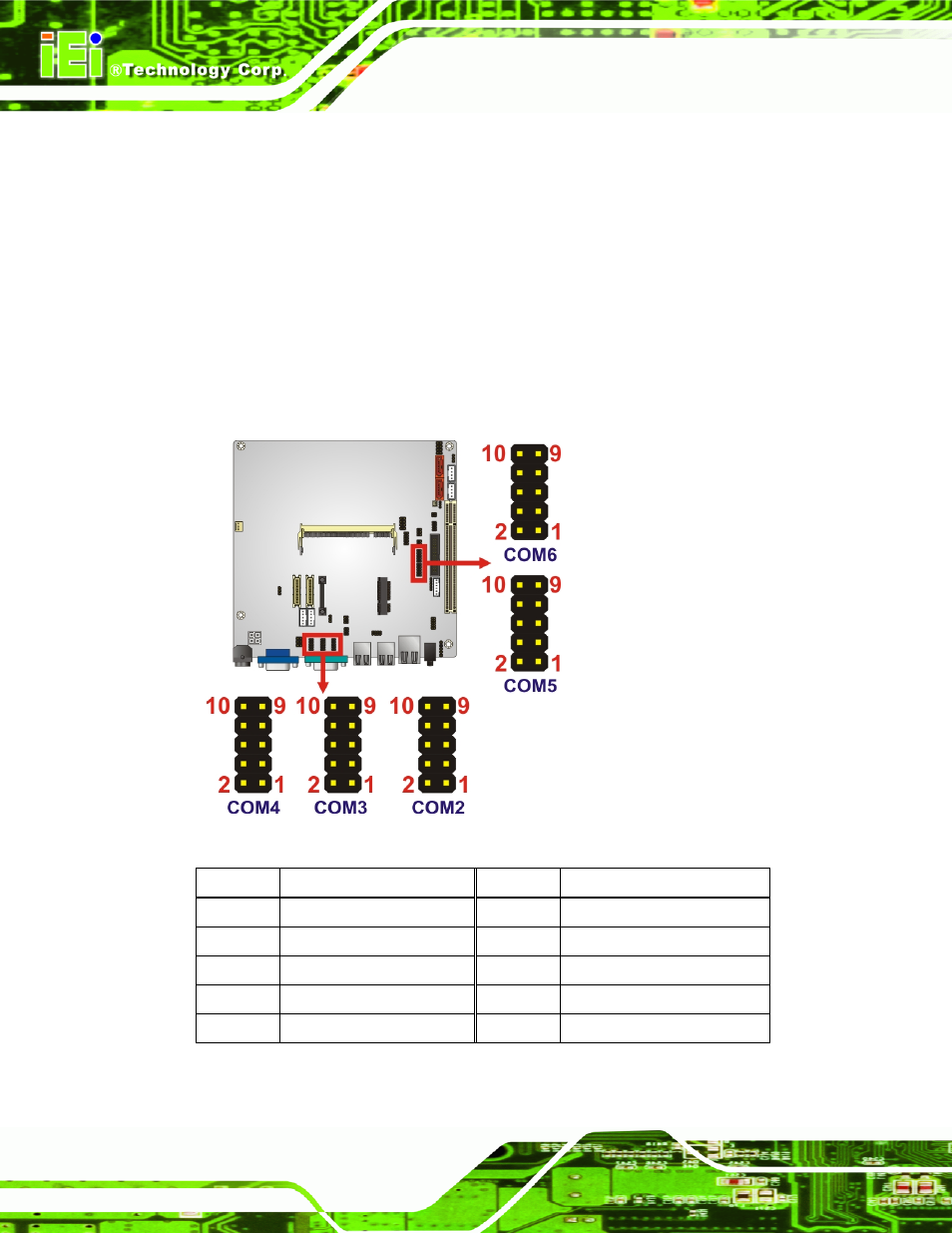

Figure 3-17: RS-232 Connector Pinout Locations

Pin Description

Pin Description

1 DCD

2 DSR

3 RXD

4 RTS

5 TXD

6 CTS

7 DTR

8 RI

9 GND

10

N/C

Table 3-18: RS-232 Connector Pinouts
