KINO-945GSE2 Motherboard

Page 41

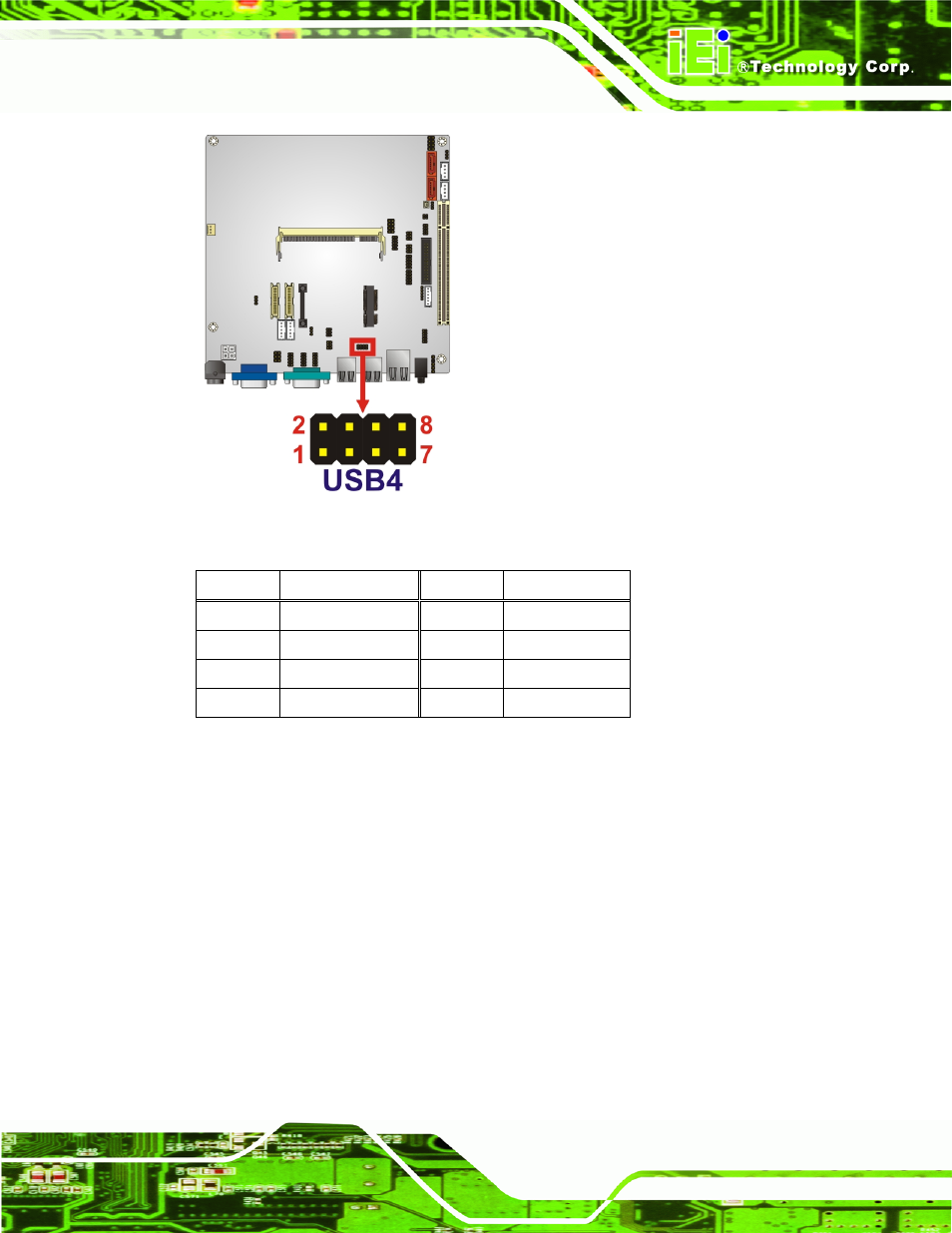

Figure 3-22: USB Connector Pinout Locations

Pin Description Pin Description

1 VCC

2 GND

3 DATA-

4 DATA+

5 DATA+

6 DATA-

7 GND

8 VCC

Table 3-23: USB Port Connector Pinouts

3.3 External Peripheral Interface Connector Panel

6

Figure 3-23 shows the KINO-945GSE2 external peripheral interface connector (EPIC)

panel. The KINO-945GSE2 EPIC panel consists of the following:

1 x Power DIN

1 x VGA port

1 x Serial port

4 x USB connectors

1 x RJ-45

1 x Audio jack (line out)
