KINO-945GSE2 Motherboard
Page 27

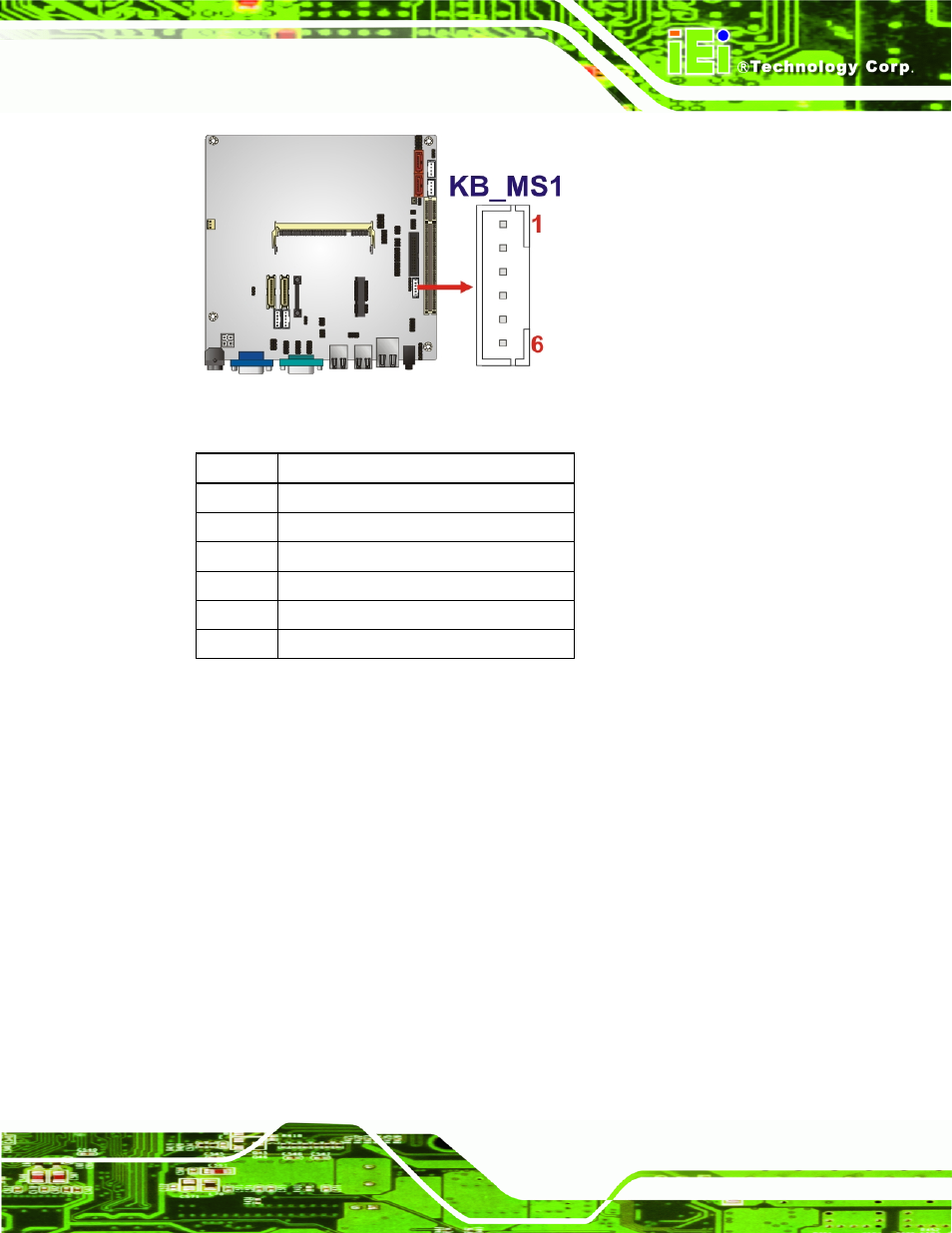

Figure 3-9: Keyboard/Mouse Connector Location
Pin Description
1 VCC
2 Mouse data
3 Mouse clock
4 Keyboard data
5 Keyboard clock
6 Ground
Table 3-10: Keyboard/Mouse Connector Pinouts
3.2.9 LCD Backlight Inverter Connector
CN Label: INVERTER1 (for LVDS1) & INVERTER2 (for LVDS2)
CN Type: 6-pin wafer
CN Location: See Figure 3-10
CN Pinouts: See Table 3-11
The backlight inverter connector provides the backlight on the LCD display connected to
the KINO-945GSE2 with +12 V of power.
