KINO-945GSE2 Motherboard

Page 23

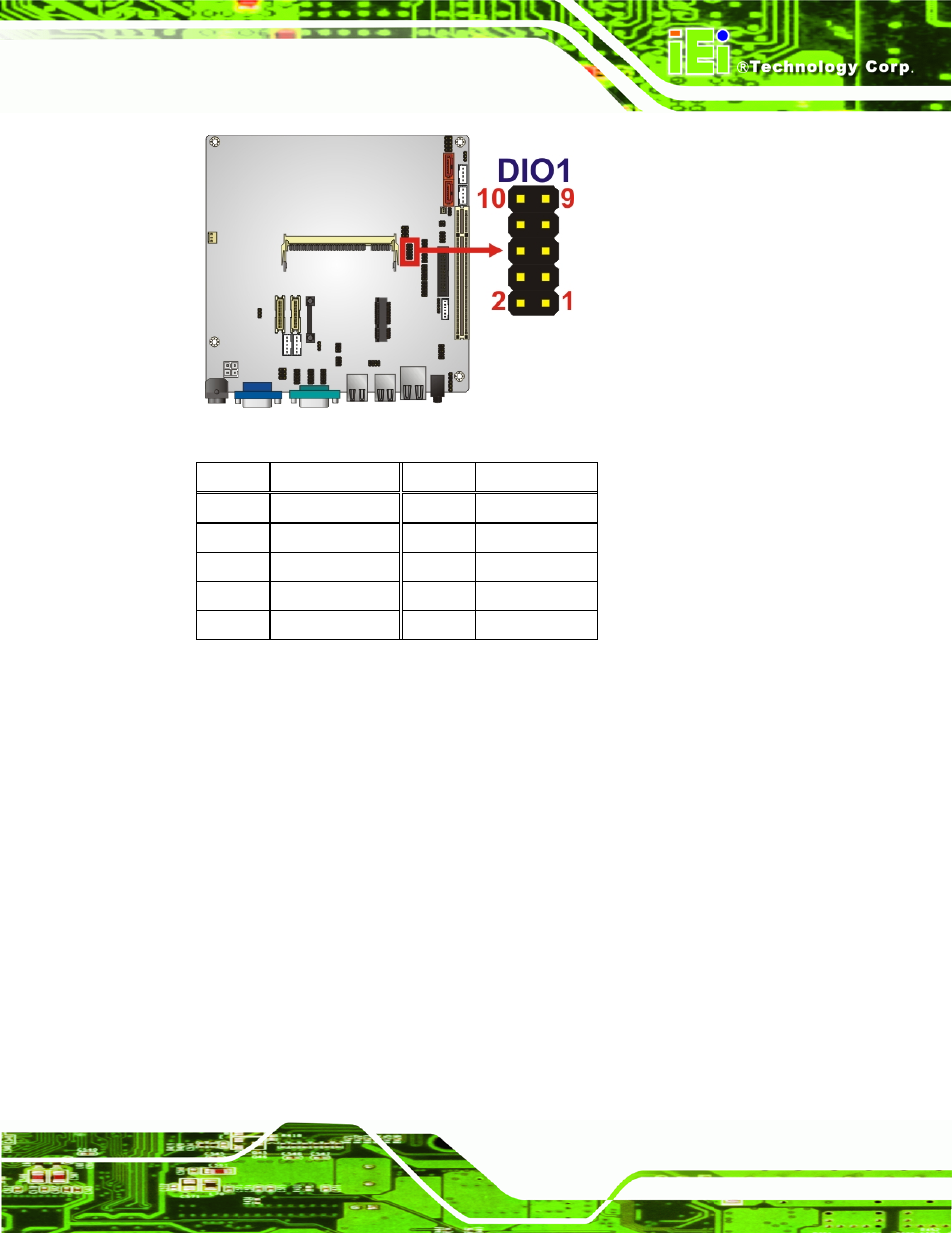

Figure 3-5: Digital I/O Connector Locations

Pin Description Pin Description

1 GND

2 VCC

3 Output

3 4 Output

2

5 Output

1 6 Output

0

7 Input

3

8 Input

2

9

Input 1

10

Input 0

Table 3-6: DIO Connector Pinouts

3.2.5 Fan Connector

CN Label:

CPU_FAN1

CN Type:

3-pin wafer

CN Location:

See

5

Figure 3-6

CN Pinouts:

See

5

Table 3-7

The cooling fan connector provides a 12 V, 500mA current to the cooling fan. The

connector has a "rotation" pin to get rotation signals from fans and notify the system so the

system BIOS can recognize the fan speed. Please note that only specified fans can issue

the rotation signals.
