KINO-945GSE2 Motherboard

Page 44

LED Description

LED Description

A on:

linked

blinking: data is being sent/received

B

off: 10 Mb/s

green: 100 Mb/s

orange: 1000 Mb/s

Table 3-26: Connector LEDs

3.3.4 Serial Port Connector

CN Label:

COM1

CN Type:

DB-9 connectors

CN Location:

See Figure 3-23

CN Pinouts:

See Table 3-27 and Figure 3-26

The 9-pin DB-9 COM 1 serial port connector is connected to RS-232 serial

communications devices.

Pin Description Pin Description

1 DCD

6 DSR

2 RX

7 RTS

3 TX

8 CTS

4 DTR

9 RI

5 GND

Table 3-27: RS-232 Serial Port Pinouts

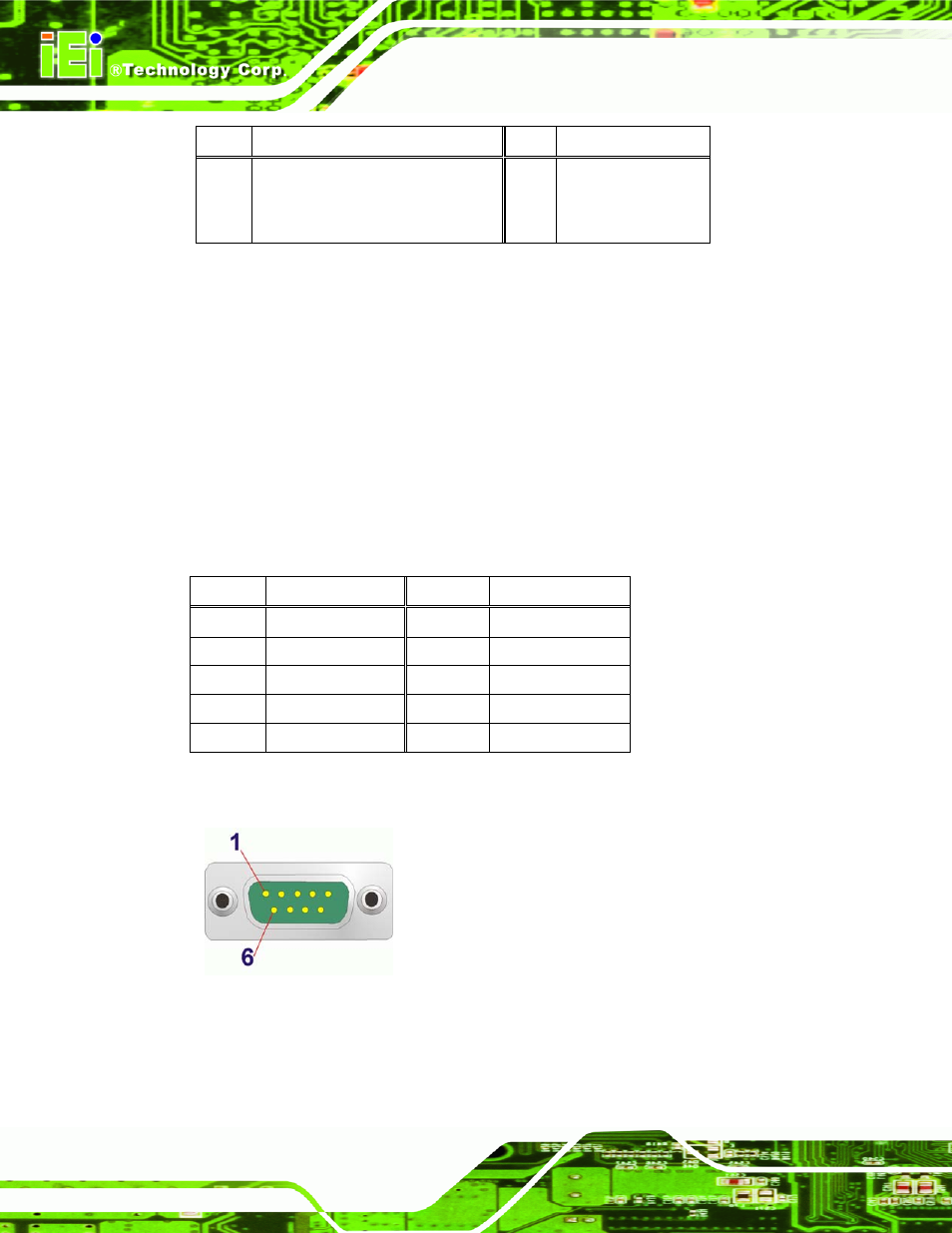

Figure 3-26: RS-232 Serial Port Pinout Locations
