4.5.4 COM6 Mode Setting

Jumper Label:

JP4

Jumper Type:

6-pin header

Jumper Settings:

See Table 4-5

Jumper Location:

See Figure 4-5

Sets the communication protocol used by the serial port.

Setting Description

1-2

RS-232

3-4 RS-422

5-6 RS-485

Table 4-5: COM6 Mode Setting

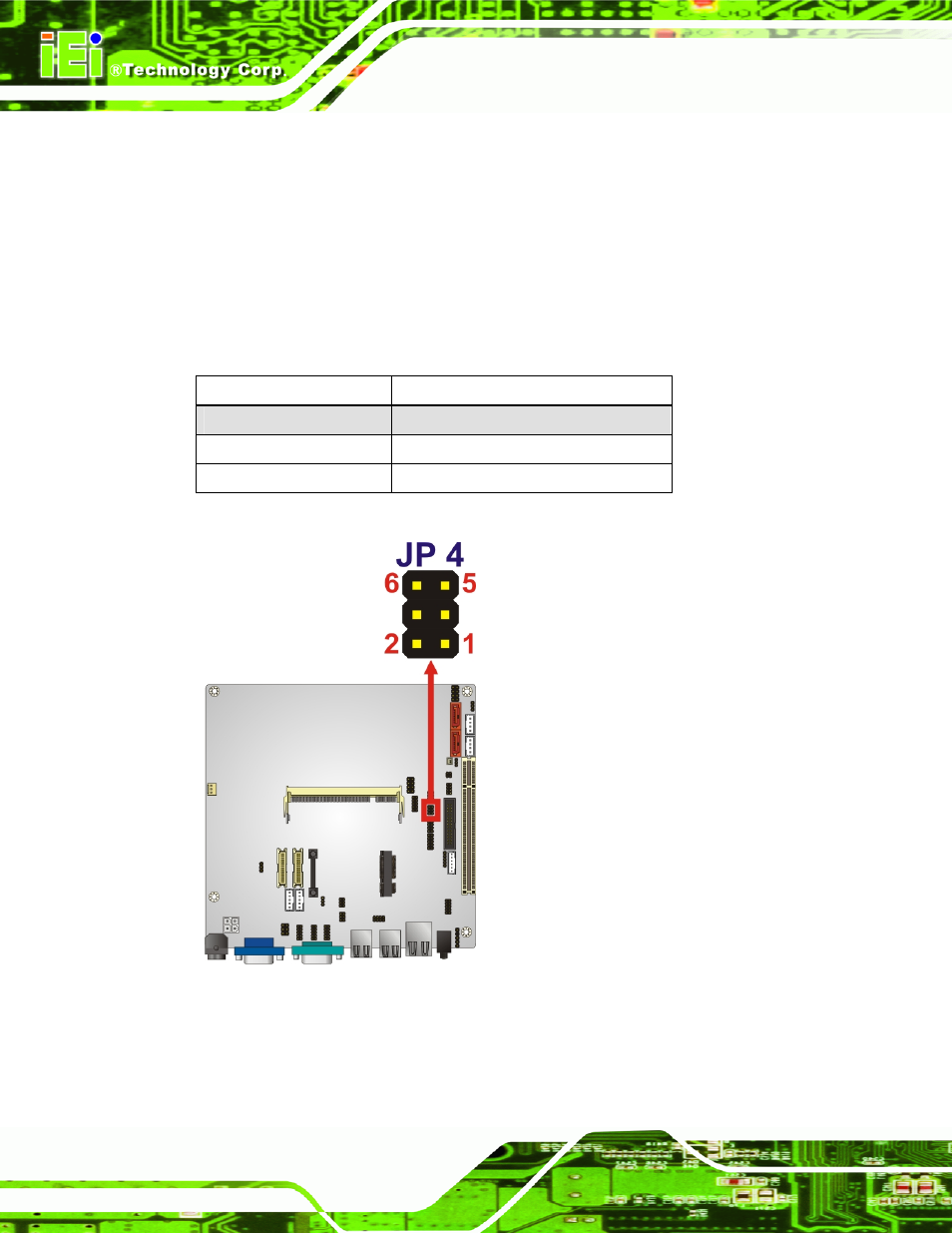

Figure 4-5: COM6 Mode Setting Jumper Location
