KINO-945GSE2 Motherboard

Page 26

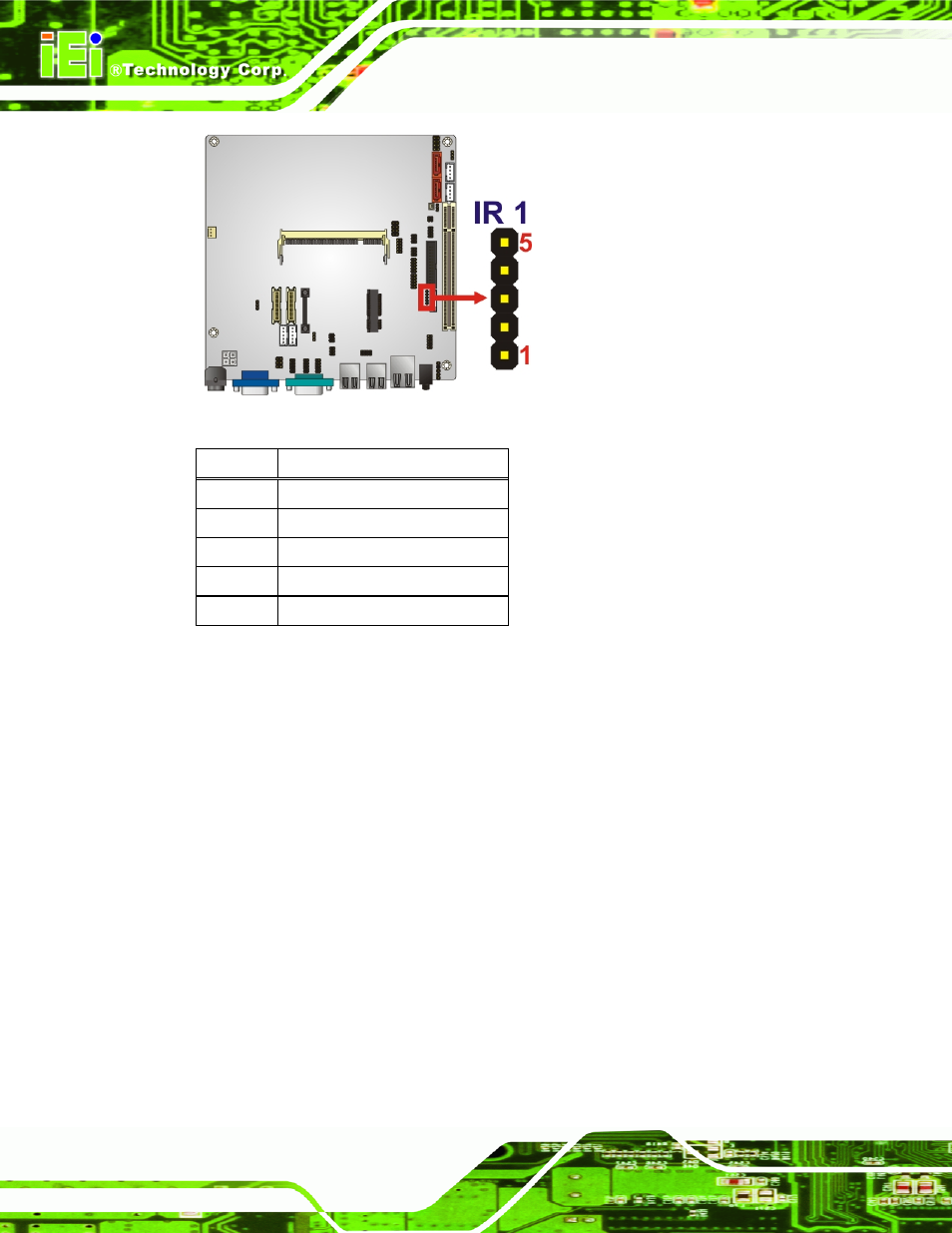

Figure 3-8: Infrared Connector Pinout Locations

Pin Description

1 VCC

2 NC

3 IR-RX

4 GND

5 IR-TX

Table 3-9: Infrared Connector Pinouts

3.2.8 Keyboard/Mouse Connector

CN Label:

KB_MS1

CN Type:

6-pin wafer

CN Location:

See Figure 3-9

CN Pinouts:

See Table 3-10

The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a

PS/2 keyboard and mouse.
