3.2.18 SPDIF Connector

CN Label:

SPDIF1

CN Type:

5-pin header

CN Location:

See Figure 3-19

CN Pinouts:

See Table 3-20

Use the SPDIF connector to connect digital audio devices to the system.

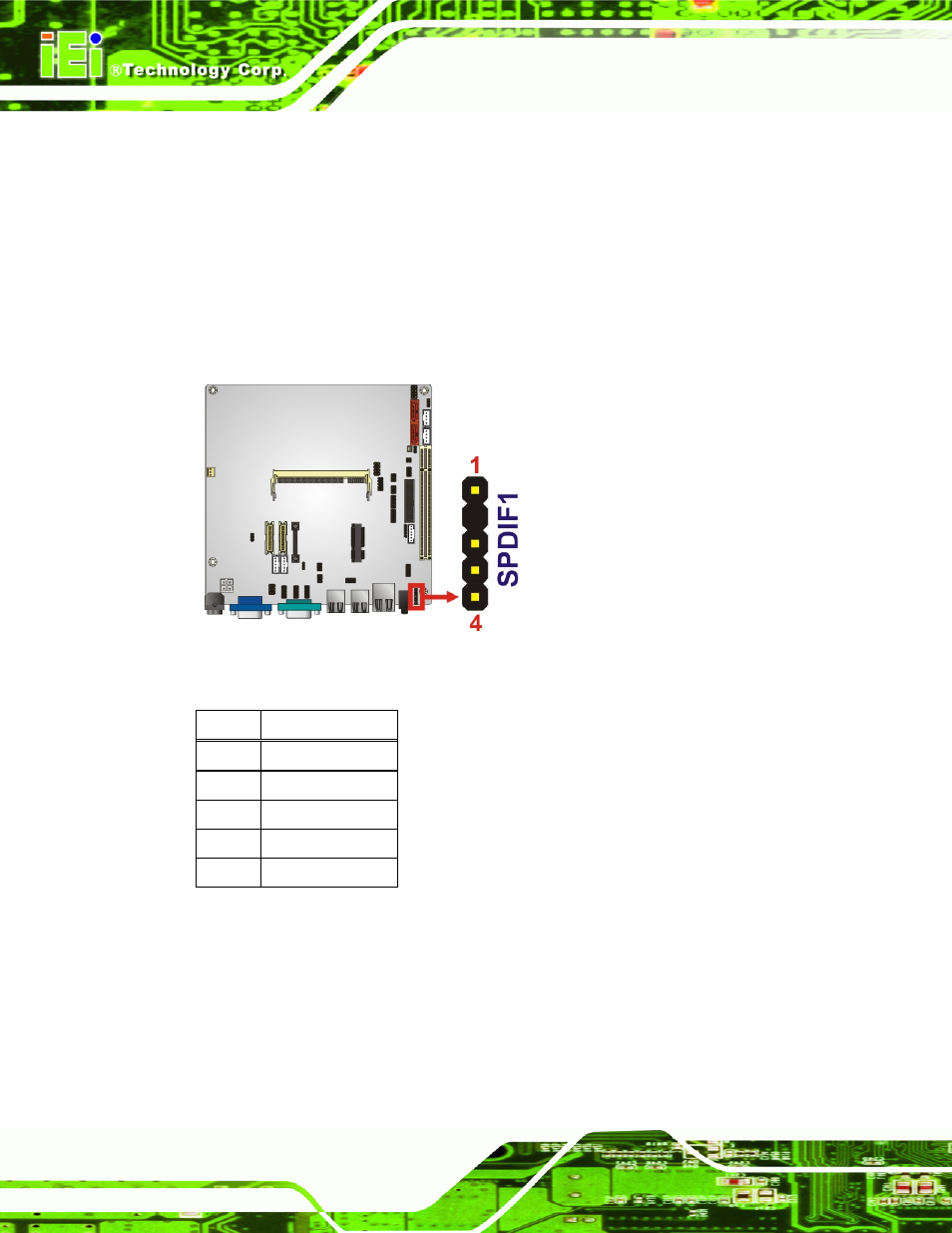

Figure 3-19: SPDIF Connector Location

Pin Description

1 5

V

2 NC

3 SPDIF

OUT

4 Ground

5 SPDIF

IN

Table 3-20: SPDIF Connector Pinouts

3.2.19 SPI Flash Connector

CN Label:

SPI1

CN Type:

8-pin header

CN Location:

See Figure 3-20
