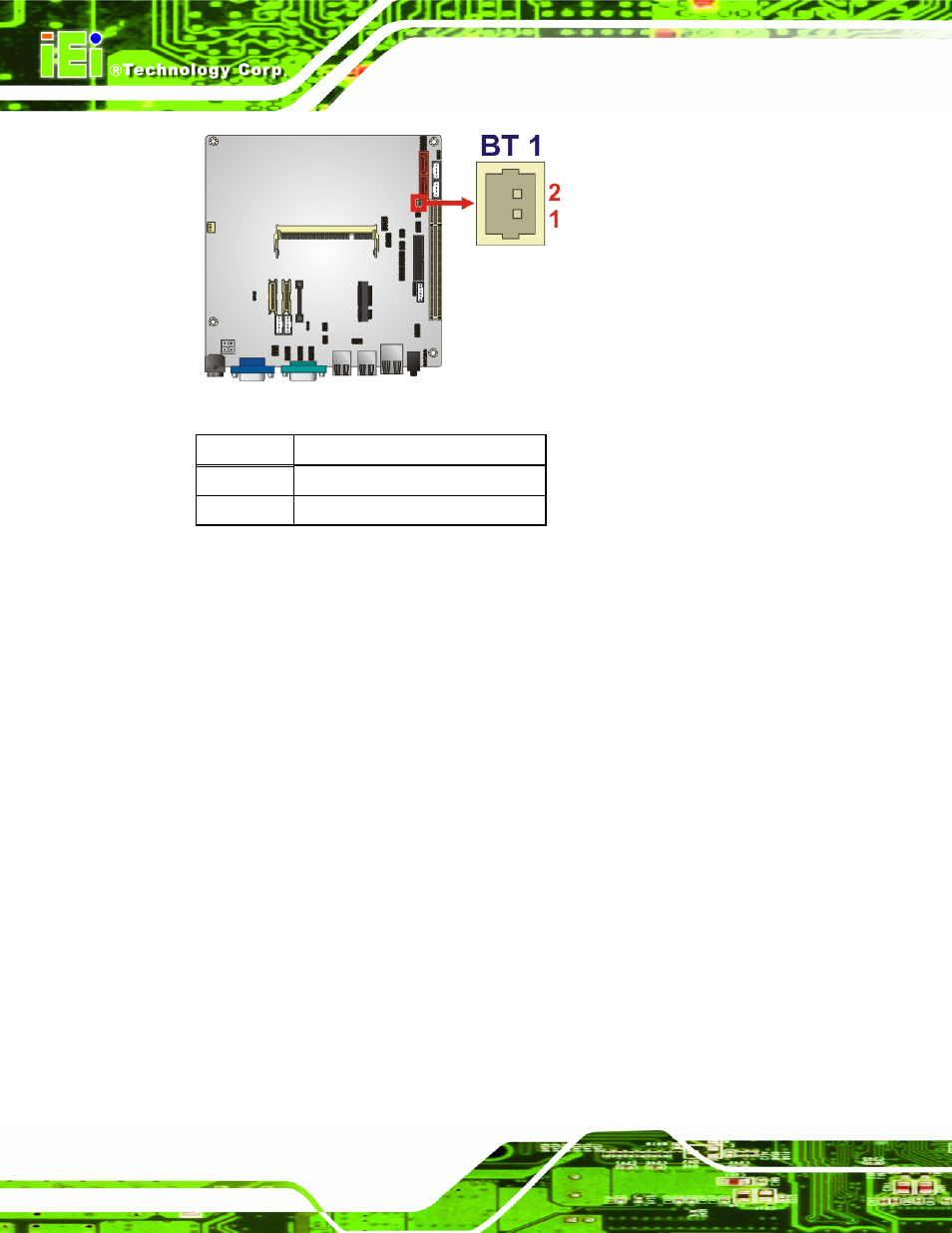

Figure 3-4: Battery Connector Location

Pin Description

1 Battery+

2 Ground

Table 3-5: Battery Connector Pinouts

3.2.4 Digital I/O Connector

CN Label:

DIO1

CN Type:

10-pin header

CN Location:

See Figure 3-5

CN Pinouts:

See Table 3-6

The digital input/output connector is managed through a Super I/O chip. The DIO

connector pins are user programmable.
