KINO-945GSE2 Motherboard

Page 24

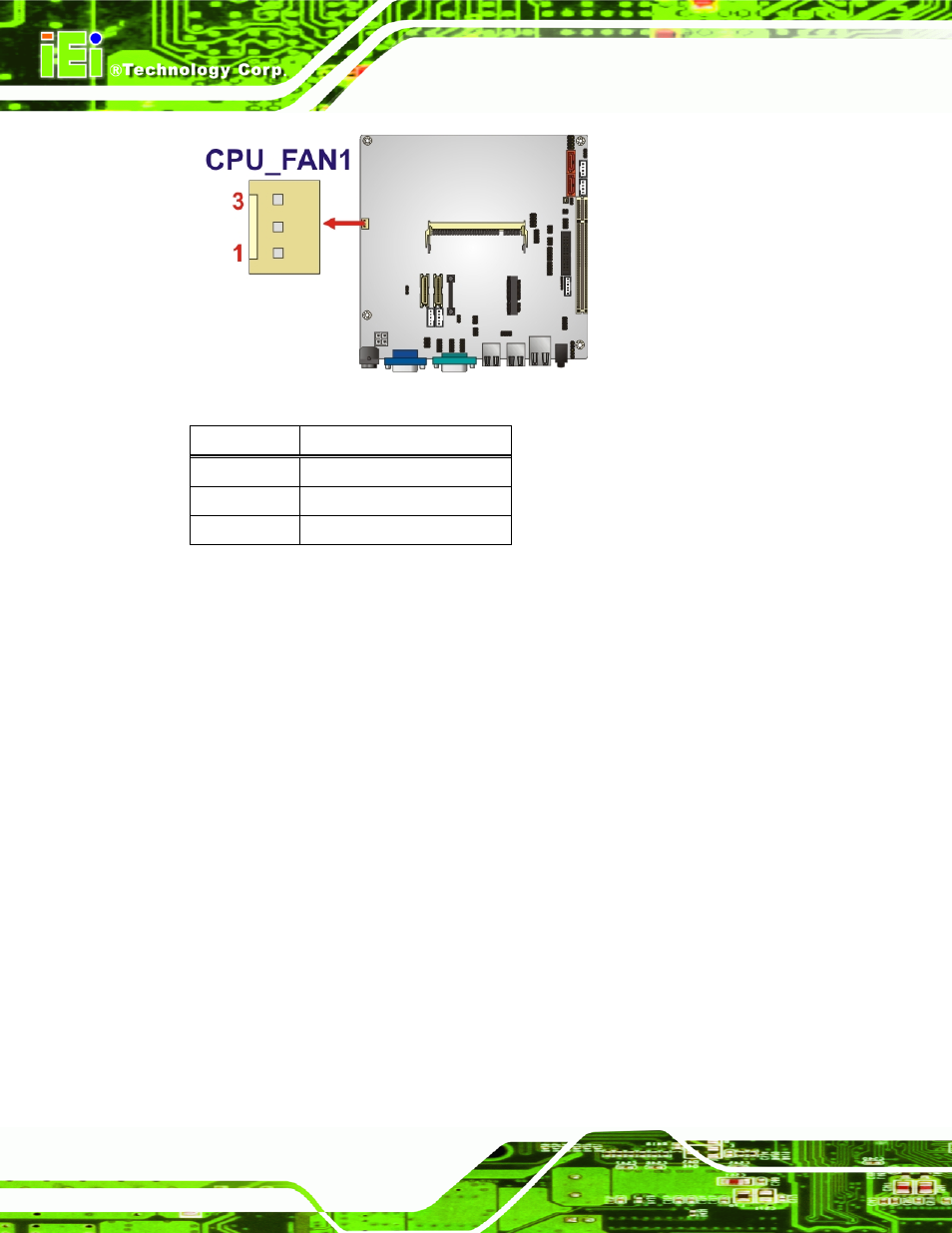

Figure 3-6: CPU Fan Connector Location

Pin Description

1

Fan Speed Detect

2 +12

V

3 GND

Table 3-7: CPU Fan Connector Pinouts

3.2.6 Front Panel Connector

CN Label:

F_PANEL1

CN Type:

8-pin header

CN Location:

See Figure 3-7

CN Pinouts:

See Table 3-8

Connects to the buttons and LEDs on the front panel of the computer.
