KINO-GM45A Mini-ITX SBC
Page 55
JP1 Description
Open LVDS1 640 x 480 (18-bit)
Short 1-2 LVDS1 800 x 600 (18-bit)
Short 3-4 LVDS1 1024 x 768 (18-bit) Default
Short 1-2, 3-4 LVDS1 1024 x 768 (24-bit)
Short 5-6 Reserve
Short 1-2, 5-6 LVDS1 1280 x 1024 (48-bit)
Short 3-4, 5-6 LVDS1 1600 x 1200 (48-bit)
Short 1-2, 3-4, 5-6 Reserve
Table 4-5: LVDS Panel Resolution Jumper Settings
The LVDS Panel Resolution jumper location is shown in Figure 4-9.

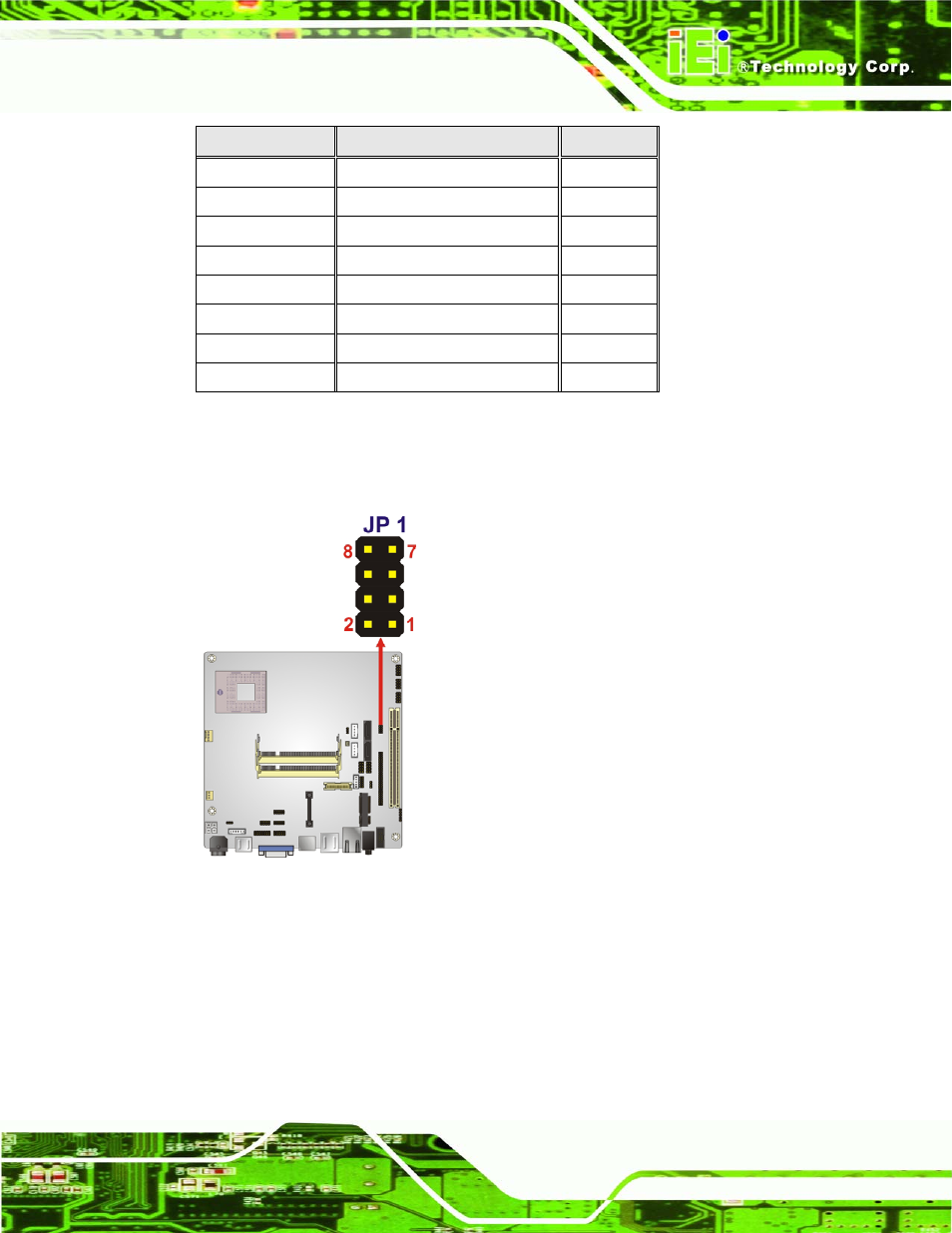

Figure 4-9: LVDS Panel Resolution Jumper Pinout Locations
