KINO-GM45A Mini-ITX SBC

Page 34

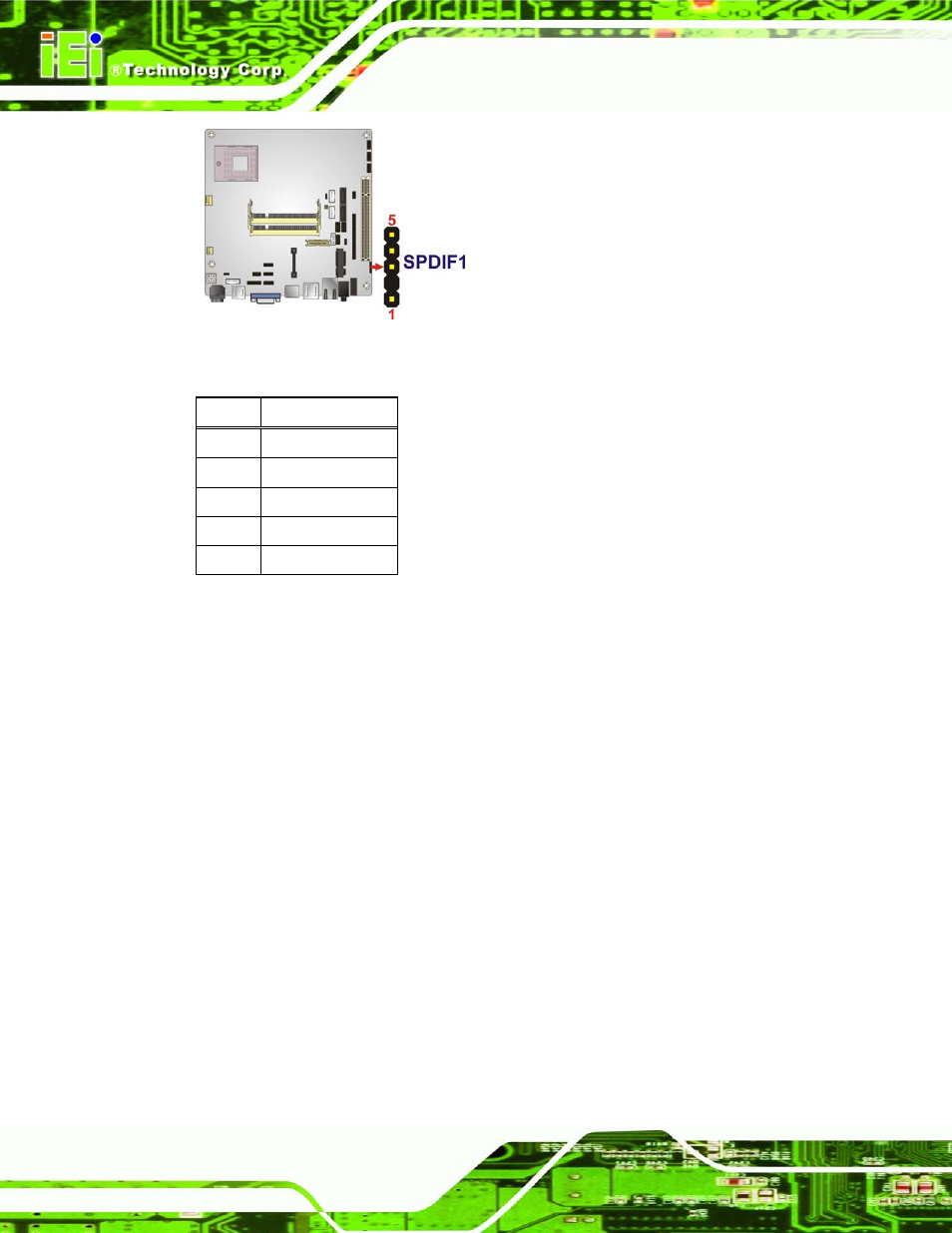

Figure 3-17: SPDIF Connector Location

PIN

DESCRIPTION

1

5V

2

NC

3

SPDIF OUT

4

GND

5

SPDIF IN

Table 3-18: SPDIF Connector Pinouts

3.2.17 SPI Flash Connector

CN Label:

JSPI1

CN Type:

8-pin header (2x4)

CN Location:

See Figure 3-18

CN Pinouts:

See Table 3-19

The 6-pin SPI Flash connector is used to flash the BIOS.
