KINO-GM45A Mini-ITX SBC
Page 35

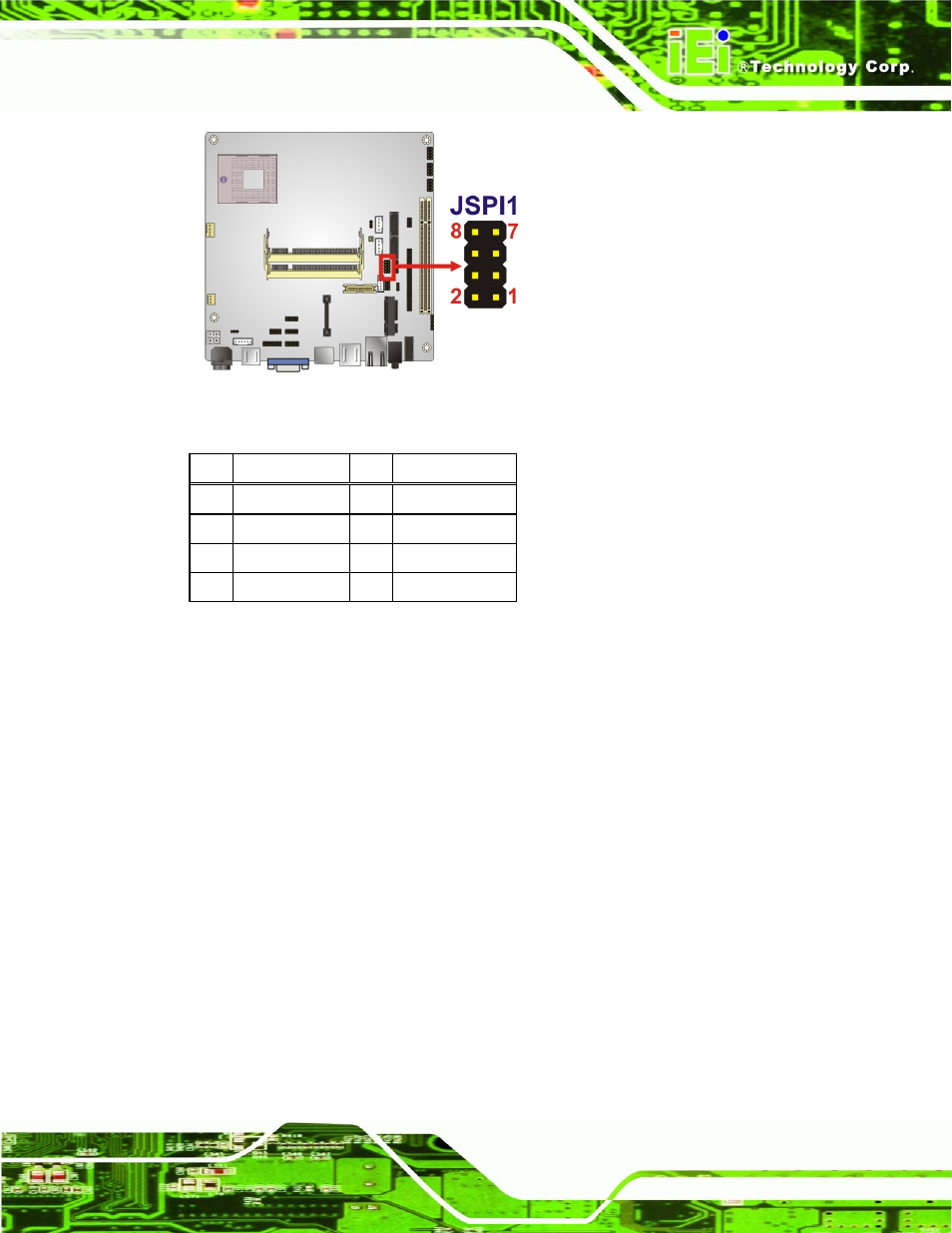

Figure 3-18: SPI Flash Connector
PIN DESCRIPTION PIN DESCRIPTION
1 SPI_VCC 2 GND
3 SPI_CS 4 SPI_CLK
5 SPI_SO 6 SPI_SI
7 NC 8 NC
Table 3-19: SPI Flash Connector
3.2.18 USB Connectors
CN Label: USB23, USB45 and USB67
CN Type: 8-pin header (2x4)
CN Location: See Figure 3-19
CN Pinouts: See Table 3-25
The USB connectors connect to USB devices. Each pin header provides two USB ports.
