KINO-GM45A Mini-ITX SBC

Page 21

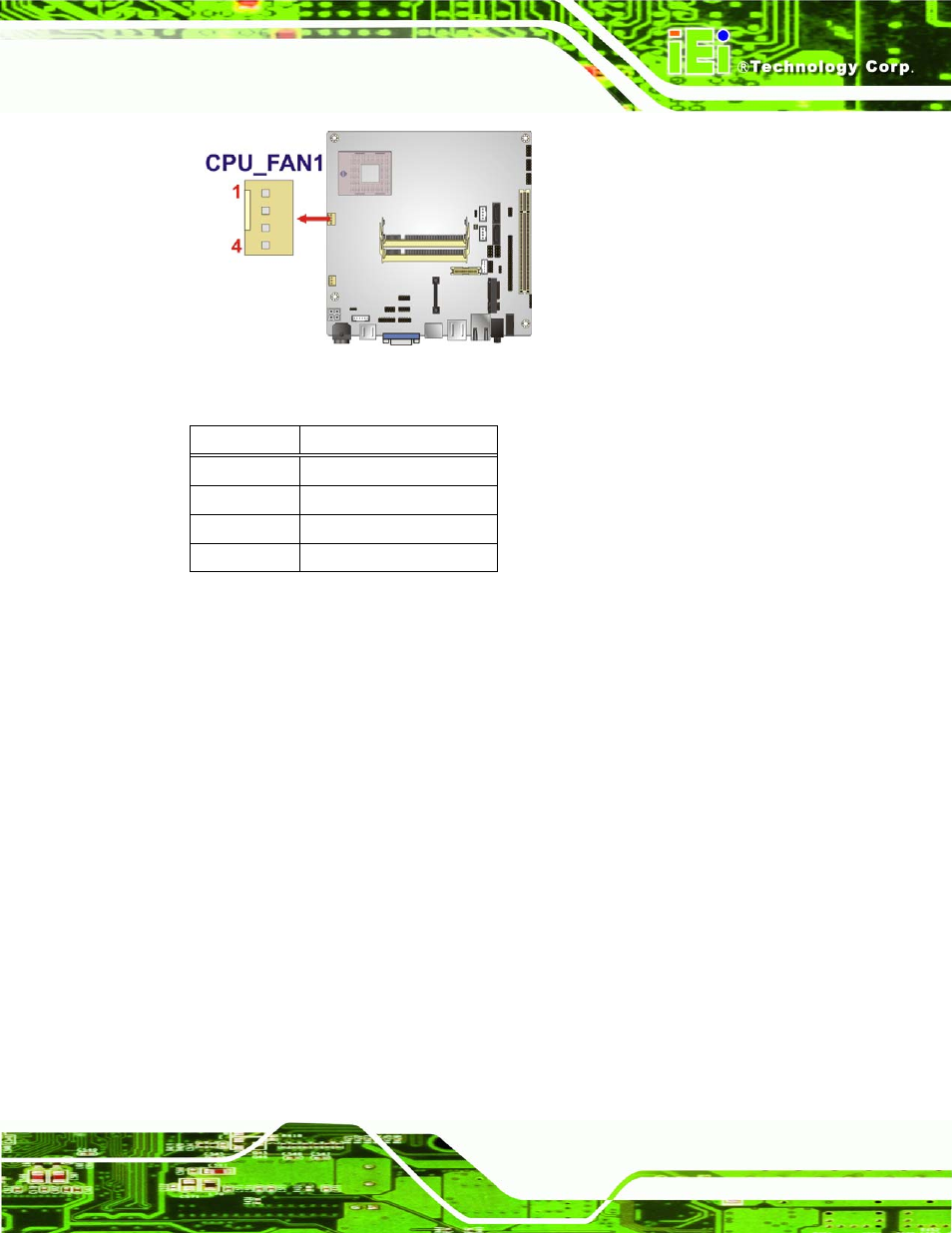

Figure 3-5: CPU Fan Connector Location

Pin Description

1 GROUND

2 +12V

3 CPUFANIN

4 CPUFANOUT

Table 3-6: CPU Fan Connector Pinouts

3.2.5 Fan Connector (System)

CN Label:

FAN1

CN Type:

3-pin wafer (1x3)

CN Location:

See

4

Figure 3-6

CN Pinouts:

See

4

Table 3-7

The cooling fan connector provides a 12V, 500mA current to the cooling fan. The

connector has a "rotation" pin to get rotation signals from fans and notify the system so the

system BIOS can recognize the fan speed. Please note that only specified fans can issue

the rotation signals.
