KINO-GM45A Mini-ITX SBC
Page 37

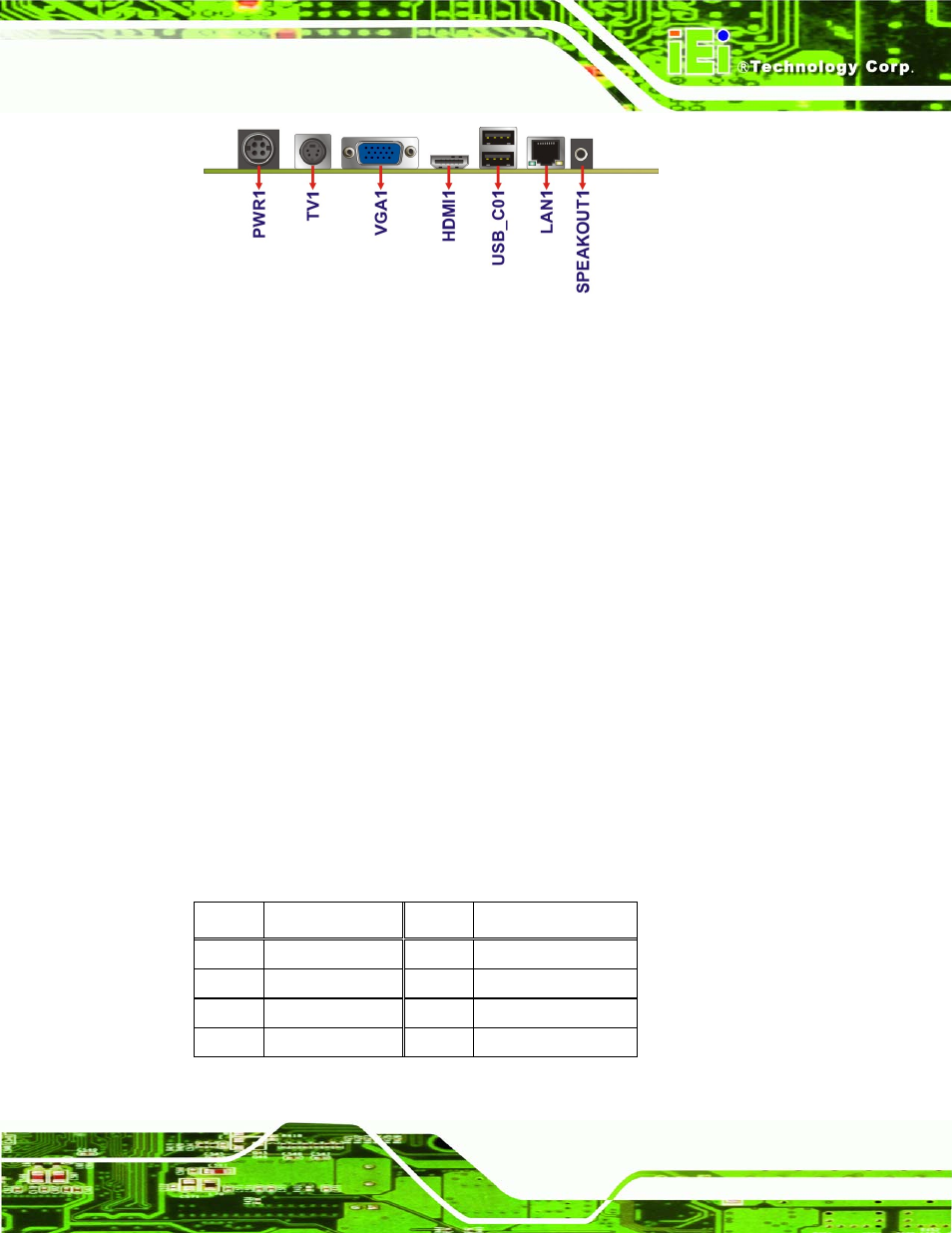

Figure 3-20: KINO-GM45A External Peripheral Interface Connector
3.3.1 Audio Connector
CN Label: SPEAKOUT1
CN Type: Audio jack
CN Location: See Figure 3-20
The audio line-out jack connects to a headphone or a speaker. With multi-channel
configurations, this port can also connect to front speakers.
3.3.2 Ethernet Connector
CN Label: LAN1
CN Type: RJ-45
CN Location: See
5
Figure 3-20
CN Pinouts: See
5
Table 3-21
The KINO-GM45A is equipped with one built-in RJ-45 Ethernet controller. The controller
can connect to the LAN through one RJ-45 LAN connector.
PIN DESCRIPTION PIN DESCRIPTION
1 MDIA3- 5 MDIA1+
2 MDIA3+ 6 MDIA2+
3 MDIA2- 7 MDIA0-
4 MDIA1- 8 MDIA0+
Table 3-21: LAN Pinouts
