KINO-GM45A Mini-ITX SBC

Page 36

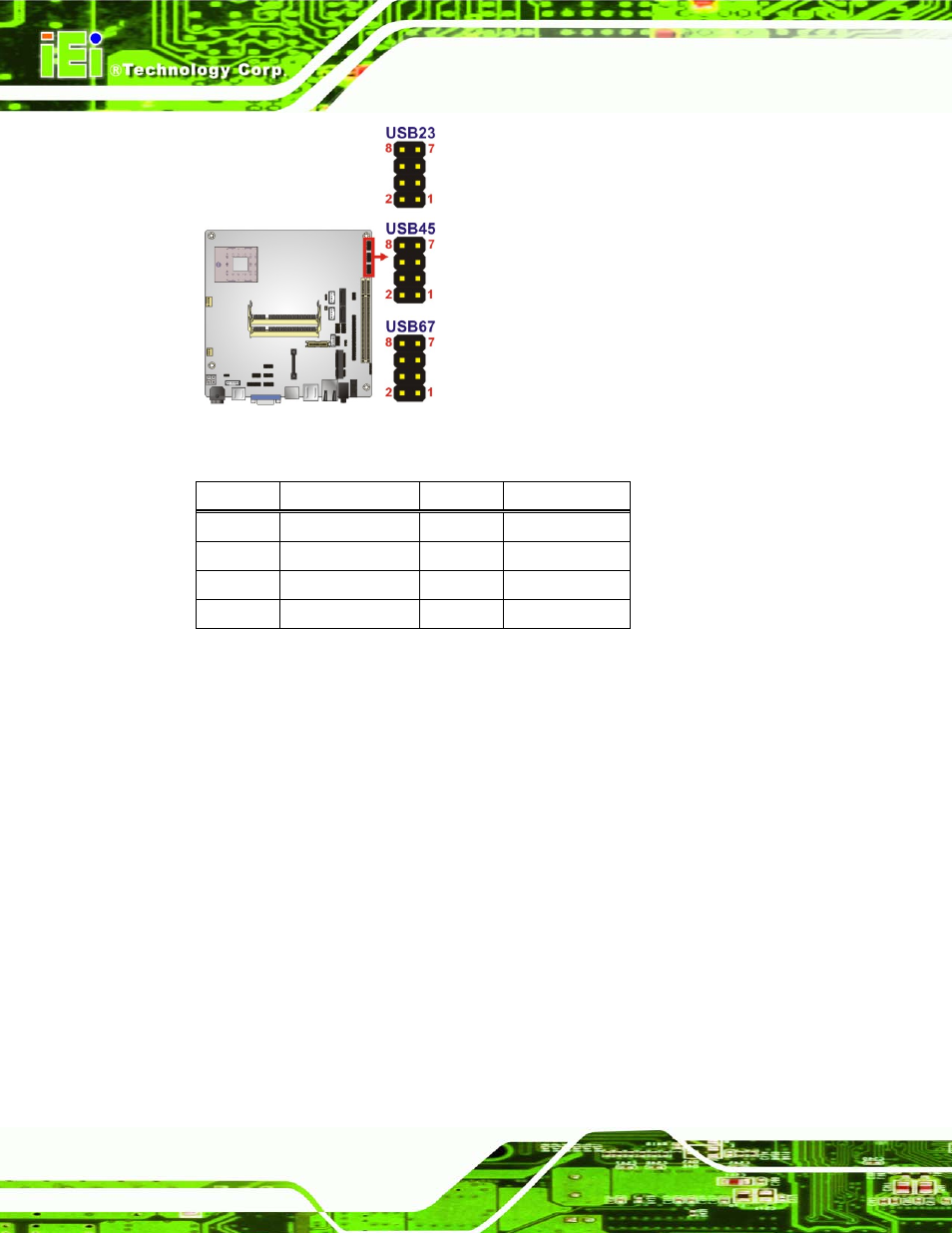

Figure 3-19: USB Connector Pinout Locations

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1

VCC

2

GND

3

DATA-

4

DATA+

5

DATA+

6

DATA-

7

GND

8

VCC

Table 3-20: USB Port Connector Pinouts

3.3 External Peripheral Interface Connector Panel

5

Figure 3-20 shows the KINO-GM45A external peripheral interface connector (EPIC) panel.

The KINO-GM45A EPIC panel consists of the following:

ƒ 1 x Audio speaker-out jack

ƒ 1 x Ethernet connector

ƒ 1 x HDMI connector

ƒ 1 x Power connector

ƒ 1 x TV out connector

ƒ 2 x USB connectors

ƒ 1 x VGA connector
