KINO-GM45A Mini-ITX SBC
Page 26
3.2.9 PCIe Mini Card Slot
CN Label: CN5
CN Type: 52-pin PCIe Mini Card Slot
CN Location: See
4
Figure 3-10
CN Pinouts: See Table 3-11
The PCIe mini card slot enables a PCIe mini card expansion module to be connected to
the board. Cards supported include among others wireless LAN (WLAN) cards.

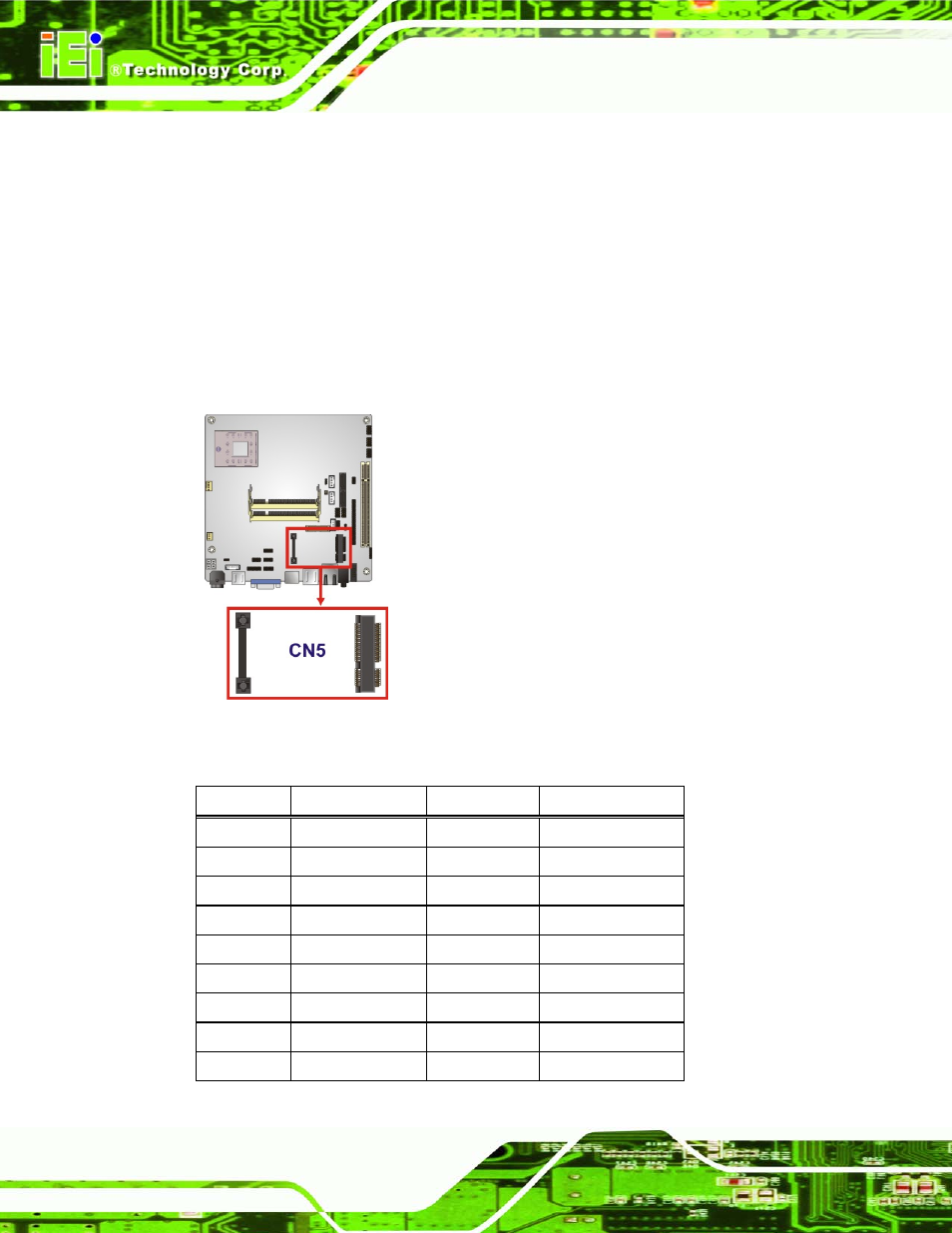

Figure 3-10: PCIe Mini Card Slot Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 PCIE_WAKE# 2 3.3V
3 N/C 4 GND
5 N/C 6 1.5V
7 CLKREQ# 8 N/C
9 GND 10 N/C
11 CLK- 12 N/C
13 CLK+ 14 N/C
15 GND 16 N/C
17 N/C 18 GND
