KINO-GM45A Mini-ITX SBC

Page 23

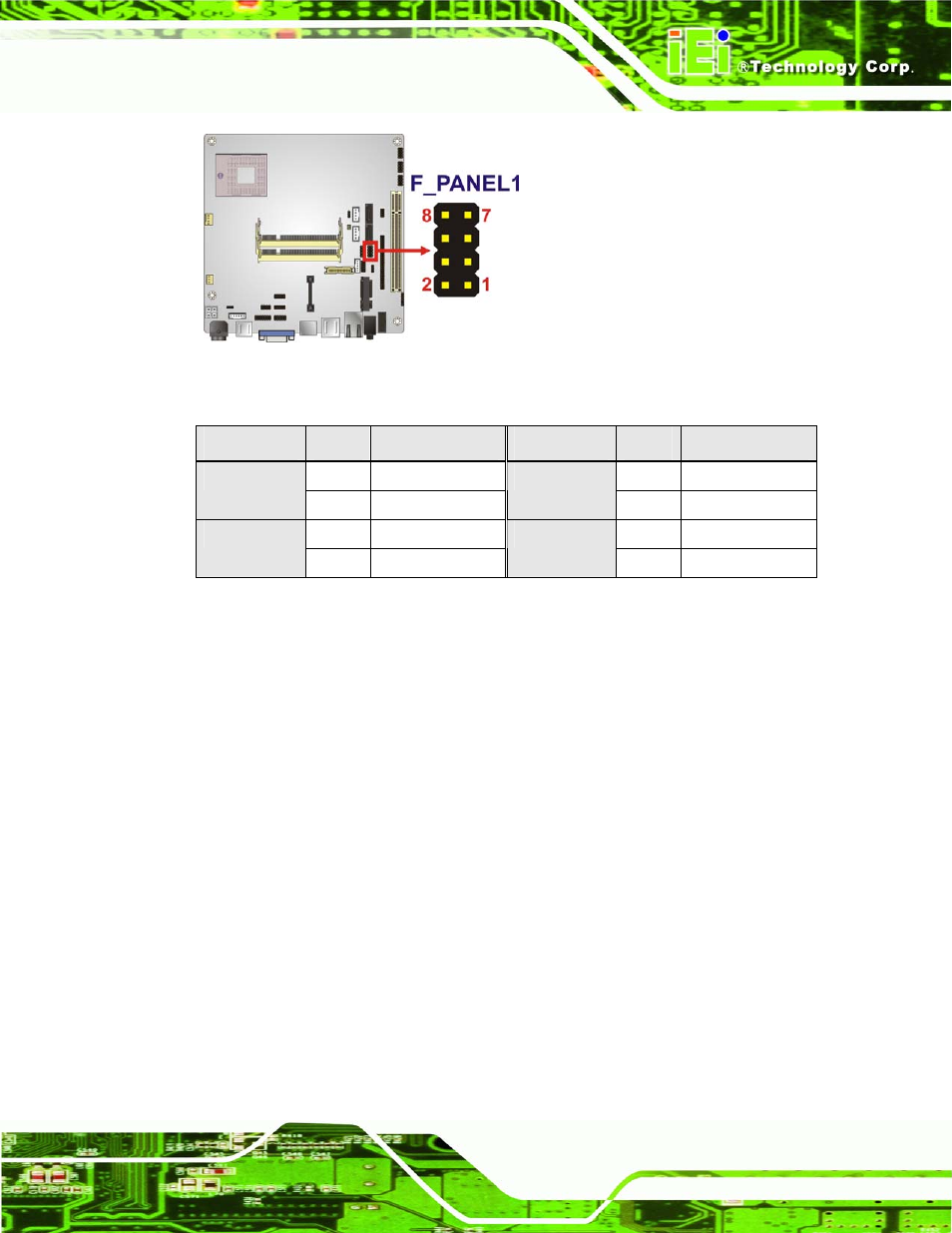

Figure 3-7: Front Panel Connector Location

FUNCTION

PIN

DESCRIPTION

FUNCTION

PIN

DESCRIPTION

1 PWRBTSW-

2 +V5S

Power Button

3 GROUND

Power LED

4 GROUND

5 +V5S

6 SYSRST-

HDD LED

7 -HDLED

Reset

8 GROUND

Table 3-8: Front Panel Connector Pinouts

3.2.7 Keyboard/Mouse Connector

CN Label:

KB_MS1

CN Type:

6-pin wafer (1x6)

CN Location:

See Figure 3-8

CN Pinouts:

See Table 3-9

The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a

PS/2 keyboard and mouse.
