KINO-GM45A Mini-ITX SBC

Page 30

3.2.12 SATA Drive Connectors

CN Label:

S_ATA1 and S_ATA2

CN Type:

7-pin SATA drive connectors

CN Location:

See

4

Figure 3-13

CN Pinouts:

See

4

Table 3-14

The two SATA II drive connectors are each connected to a SATA II drive. The SATA II

drives transfer data at speeds as high as 3.0 Gb/s.

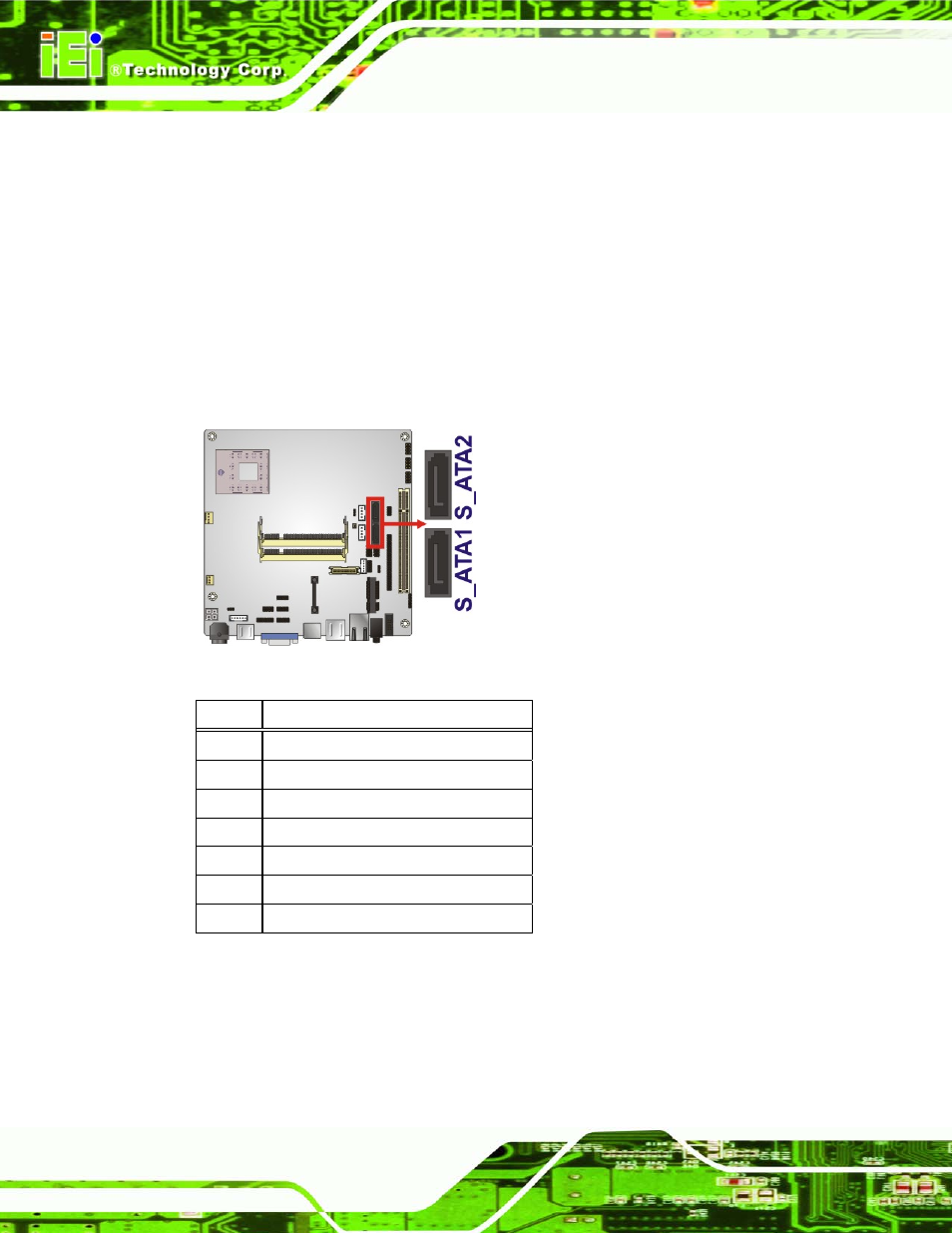

Figure 3-13: SATA Drive Connector Locations

PIN NO. DESCRIPTION

1 GND

2 TX+

3 TX-

4 GND

5 RX-

6 RX+

7 GND

Table 3-14: SATA Drive Connector Pinouts
