KINO-GM45A Mini-ITX SBC

Page 53

Clear CMOS

Description

Short 1 - 2

Keep CMOS Setup

Default

Short 2 - 3

Clear CMOS Setup

Table 4-3: Clear CMOS Jumper Settings

The location of the clear CMOS jumper is shown in

5

Figure 4-7 below.

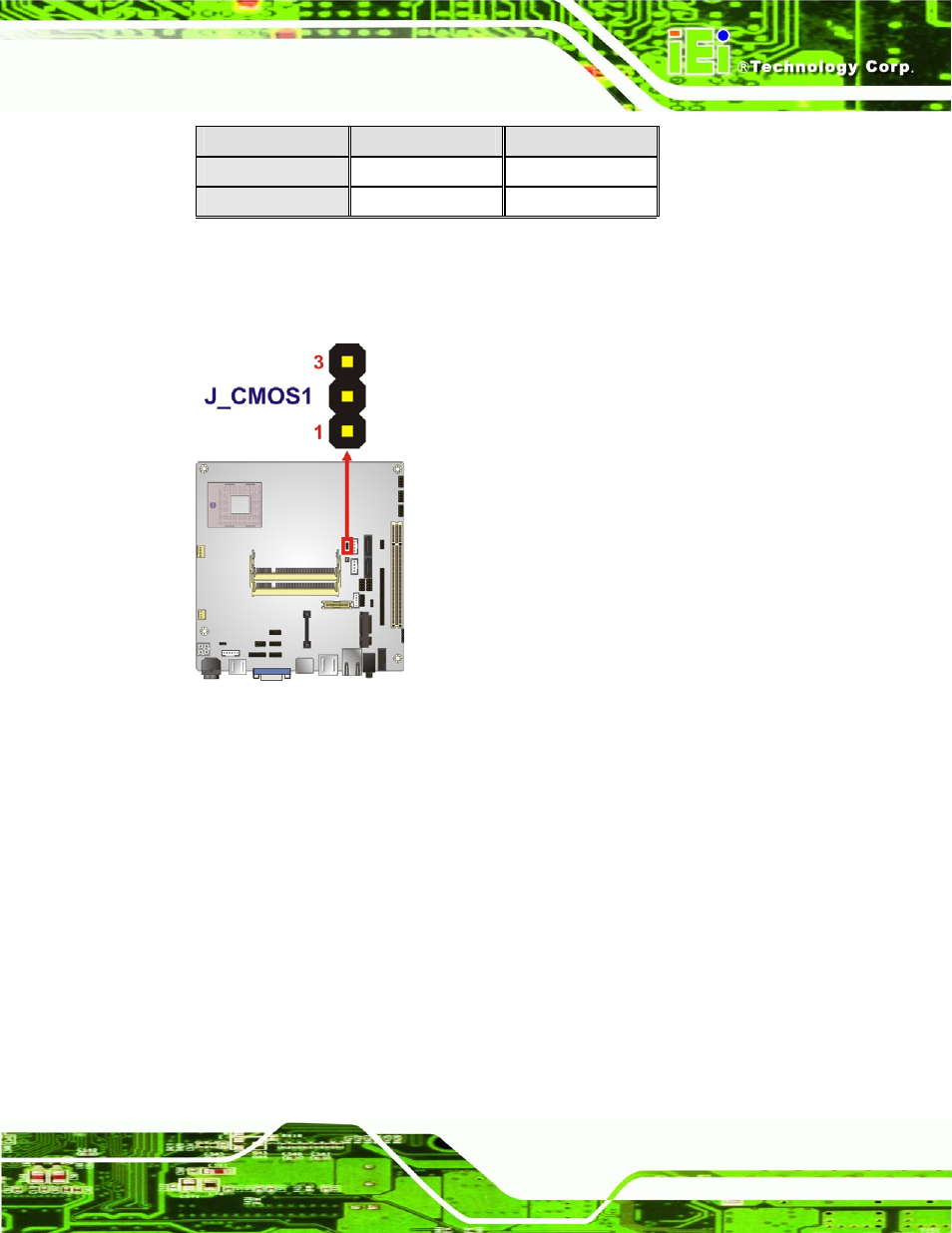

Figure 4-7: Clear CMOS Jumper

4.5.3 COM 2 Function Select Jumper

Jumper Label:

JP5

Jumper Type:

8-pin header (2x4)

Jumper Settings:

See Table 4-4

Jumper Location:

See Figure 4-8

The COM 2 Function Select jumper sets the communication protocol used by the second

serial communications port (COM 2) as RS-232, RS-422 or RS-485. The COM 2 Function

Select settings are shown in Table 4-4.
