KINO-GM45A Mini-ITX SBC
Page 40
CN Location: See
5
Figure 3-20
CN Pinouts: See
5
Table 3-25
The KINO-GM45A has two external USB 2.0 ports. The ports connect to both USB 2.0
and USB 1.1 devices.
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC 5 VCC
2 DATA- 6 DATA-
3 DATA+ 7 DATA+
4 GROUND 8 GROUND
Table 3-25: USB Port Connector Pinouts (USB1_2)
3.3.6 VGA Connector
CN Label: VGA1
CN Type: 15-pin Female
CN Location: See
5
Figure 3-20
CN Pinouts: See
5
Figure 3-22 and
5
Table 3-26
The KINO-GM45A has a single 15-pin female connector for connectivity to standard
display devices.

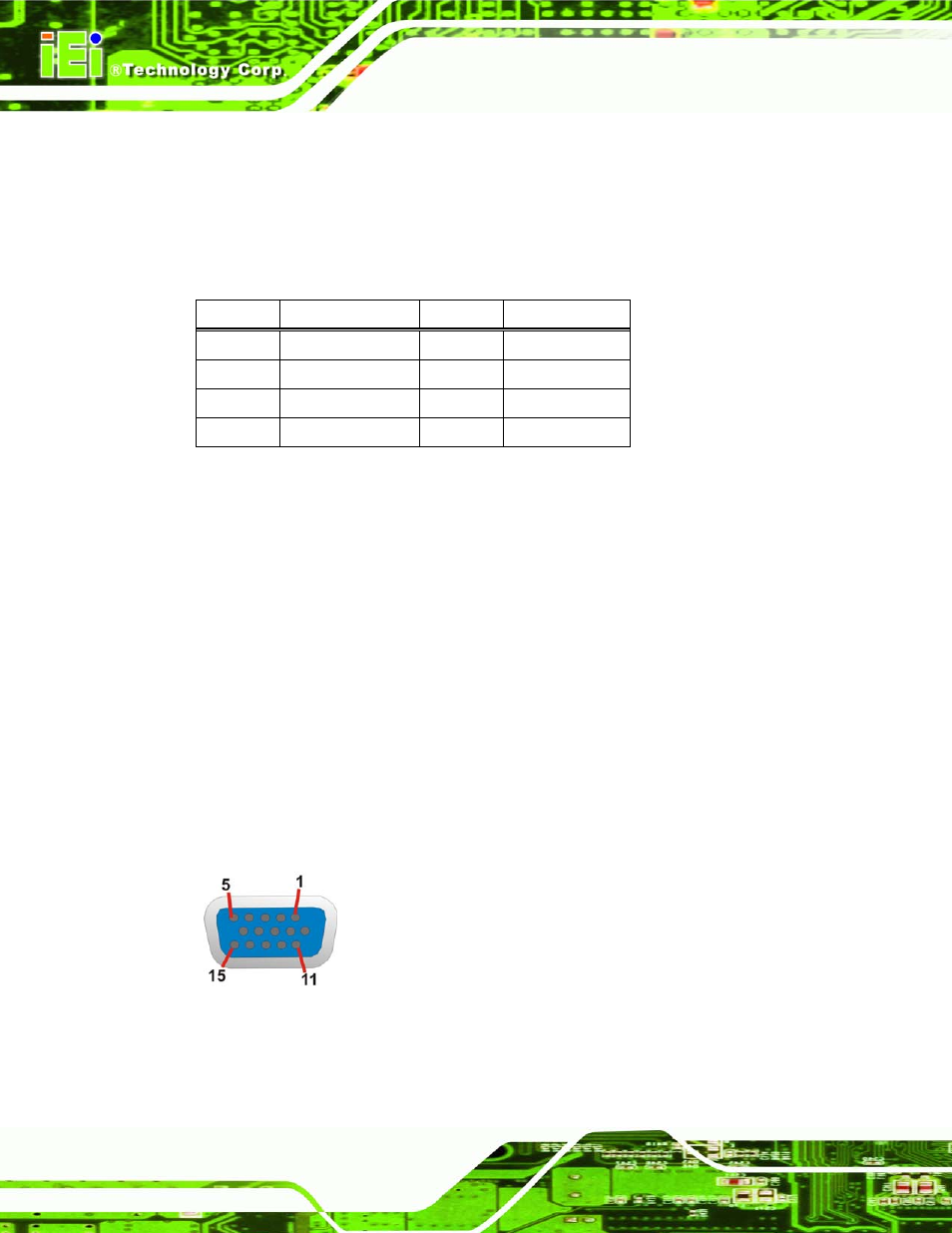

Figure 3-22: VGA Connector
