KINO-GM45A Mini-ITX SBC

Page 32

Used for RS-232/422/485 communications.

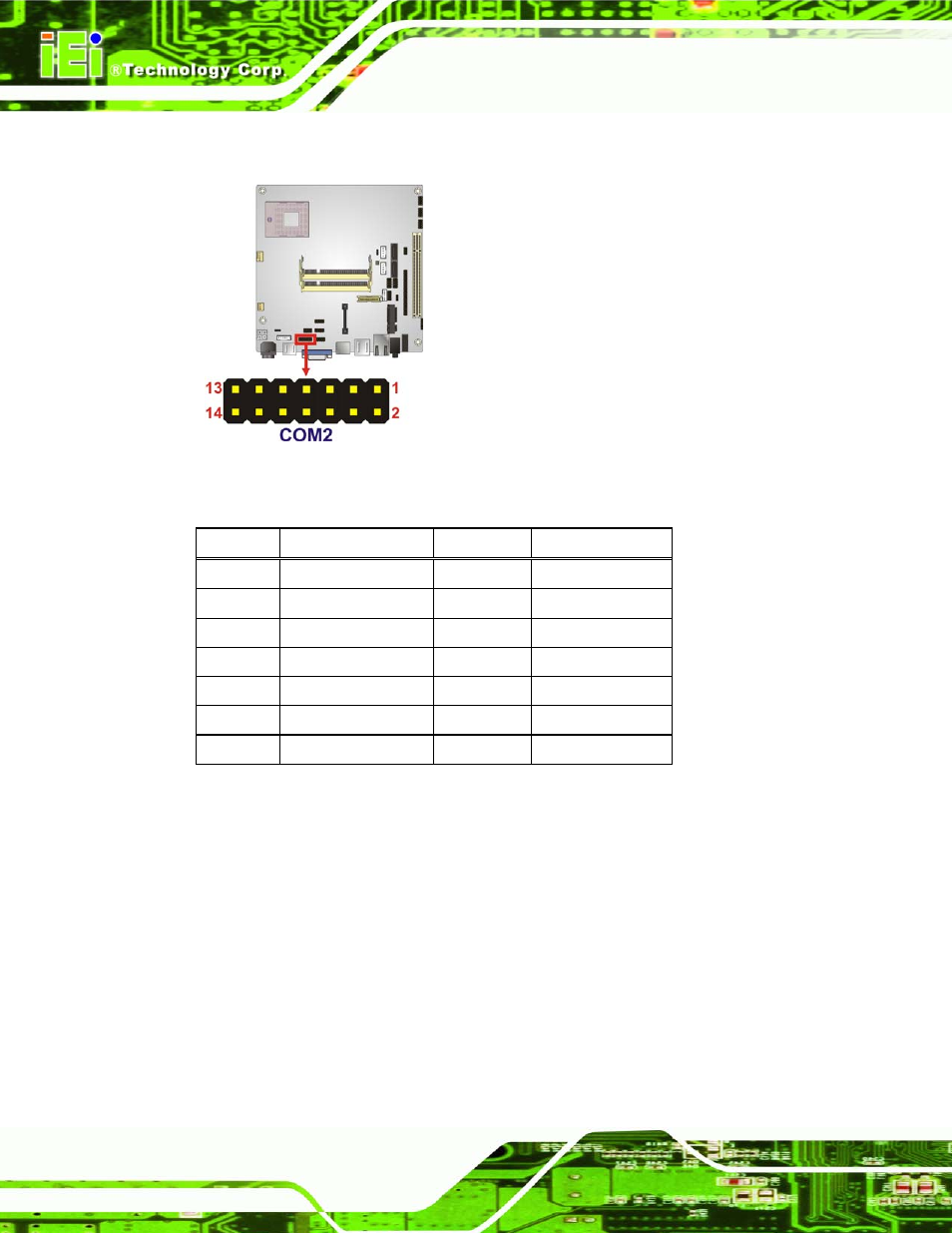

Figure 3-15: Serial Port Connector Location

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1

DCD

2

DSR

3

RXD

4

RTS

5

TXD

6

CTS

7

DTR

8

RI

9

GND

10

N/C

11

TXD485+

12

TXD485#

13

RXD485+

14

RXD485#

Table 3-16: Serial Port Connector Pinouts

3.2.15 Serial Port Connectors (RS-232)

CN Label:

COM1, COM3 and COM4

CN Type:

10-pin header (2x5)

CN Location:

See

4

Figure 3-16

CN Pinouts:

See

5

Table 3-17

These connectors provide RS-232 communications.
