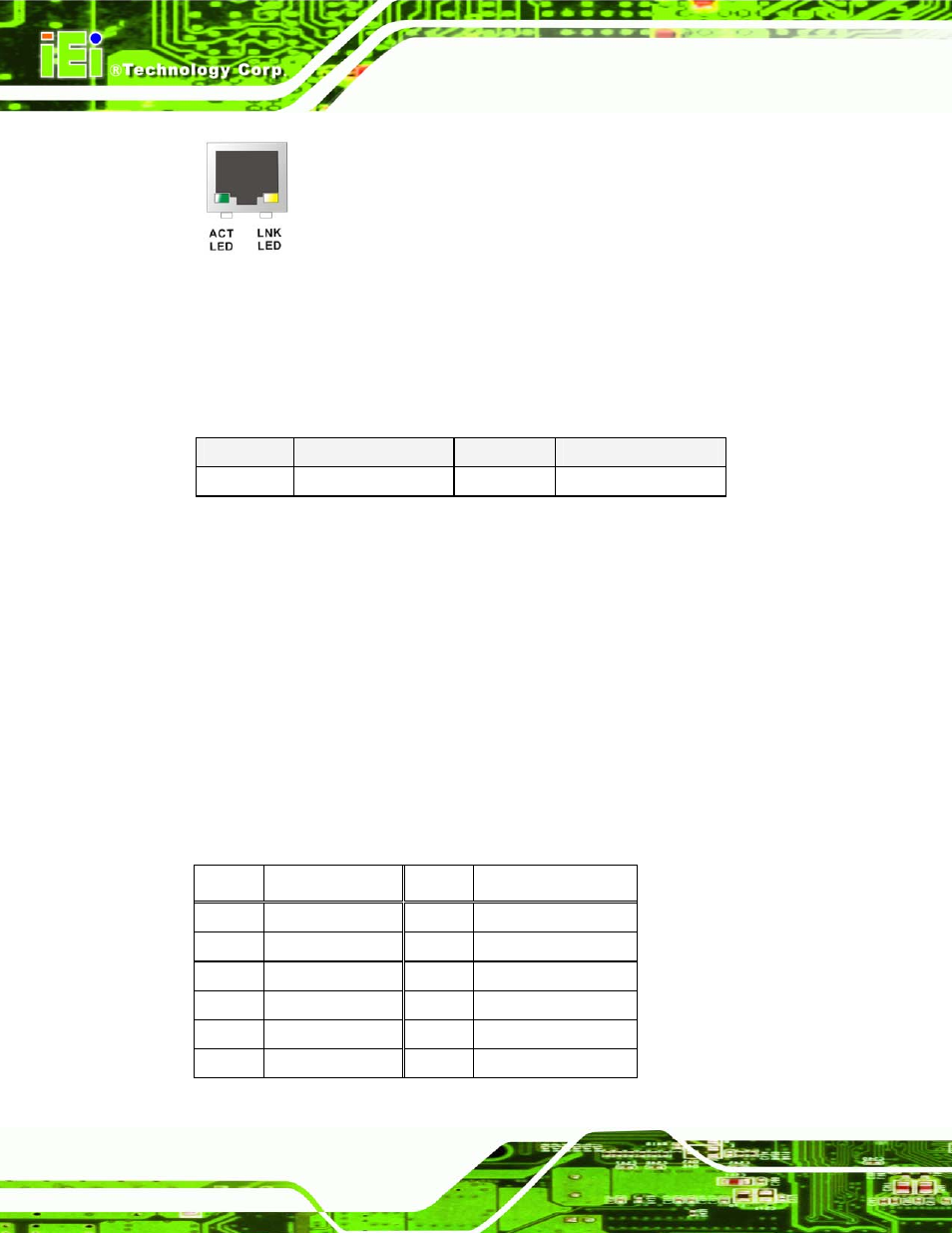

Figure 3-21: RJ-45 Ethernet Connector
The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green
LED indicates activity on the port and the yellow LED indicates the port is linked. See
5
Table 3-22.
STATUS DESCRIPTION STATUS DESCRIPTION
GREEN Activity YELLOW Linked
Table 3-22: RJ-45 Ethernet Connector LEDs
3.3.3 HDMI Connector
CN Label: HDMI1
CN Type: HDMI type A connector
CN Location: See
5
Figure 3-20
CN Pinouts: See
5
Table 3-23
The HDMI (High-Definition Multimedia Interface) connector connects to digital audio or
video sources.
PIN DESCRIPTION PIN DESCRIPTION
1 HDMI_DATA2 13 N/C
2 GND 14 N/C
3 HDMI_DATA2# 15 HDMI_SCL
4 HDMI_DATA1 16 HDMI_SDA
5 GND 17 GND
6 HDMI_DATA1# 18 +5V
