PCIE-Q350 PICMG 1.3 CPU Card

Page 79

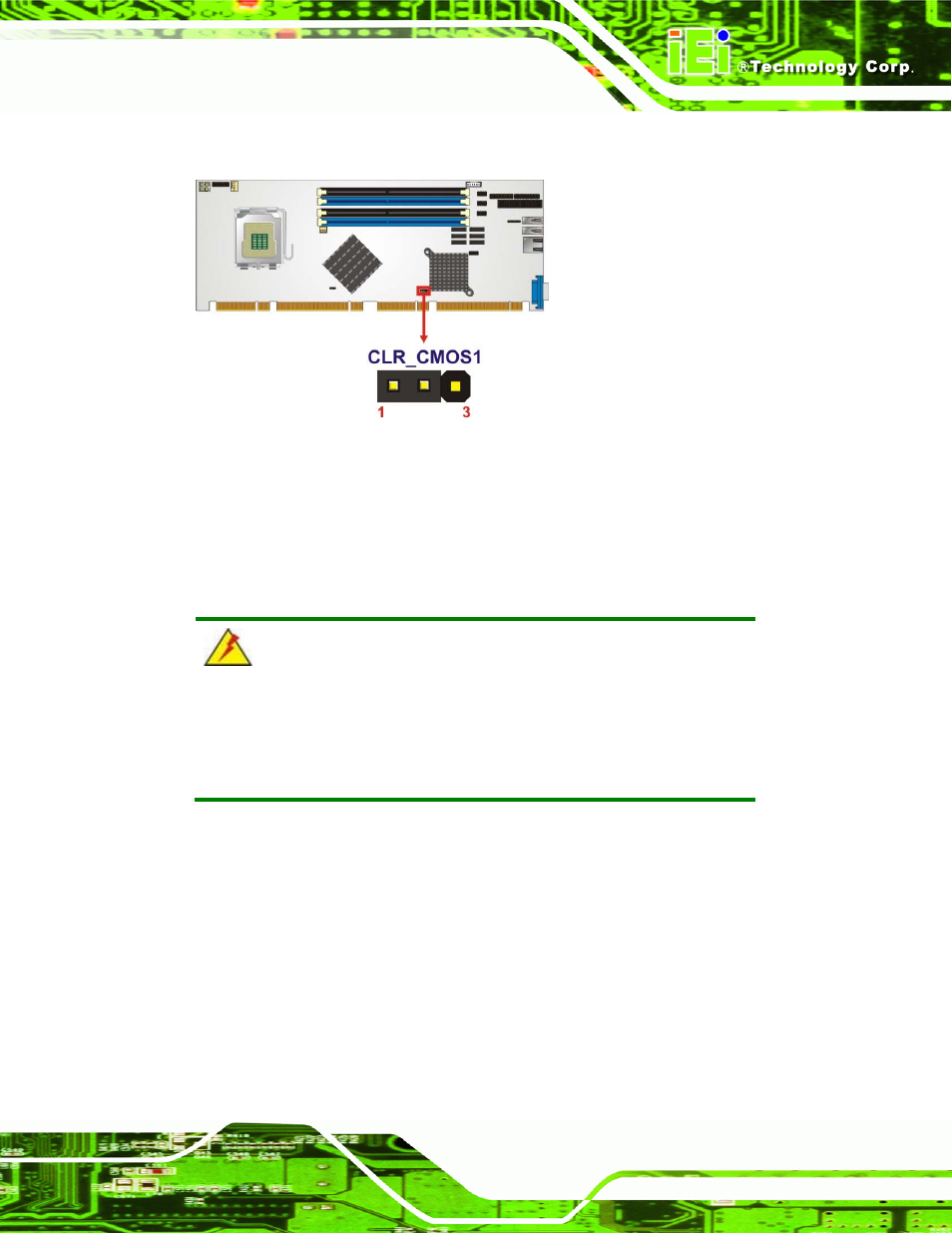

The location of the clear CMOS jumper is shown in Figure 5-9 below.

Figure 5-9: Clear CMOS Jumper

5.6 Chassis Installation

5.6.1 Airflow

WARNING:

Airflow is critical to the cooling of the CPU and other onboard

components. The chassis in which the PCIE-Q350 must have air vents

to allow cool air to move into the system and hot air to move out.

The PCIE-Q350 must be installed in a chassis with ventilation holes on the sides allowing

airflow to travel through the heat sink surface. In a system with an individual power supply

unit, the cooling fan of a power supply can also help generate airflow through the board

surface.
