PCIE-Q350 PICMG 1.3 CPU Card

Page 60

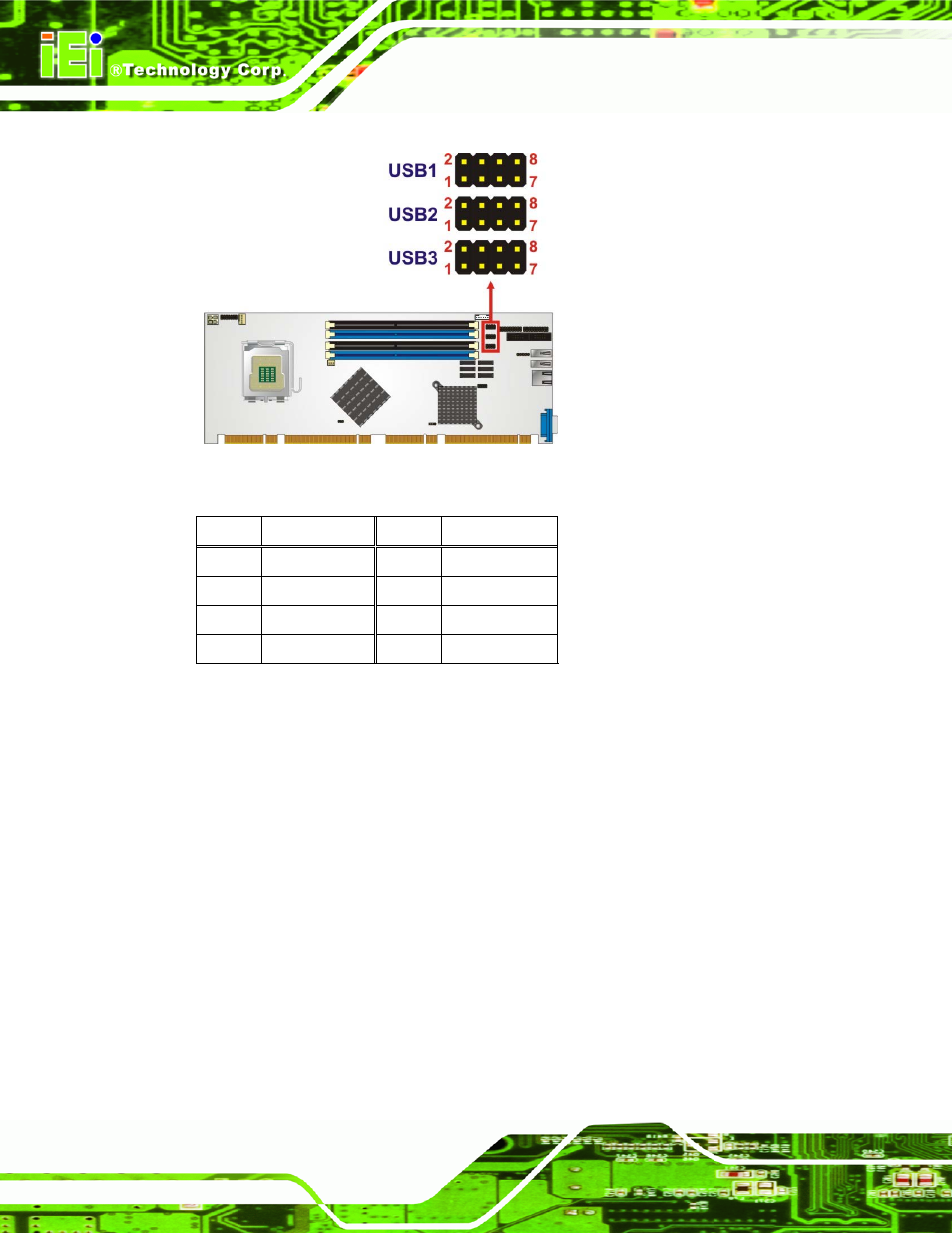

Figure 4-14: USB Connector Locations

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 VCC

2 GND

3 DATAN- 4 DATAM+

5 DATAN+ 6 DATAM-

7 GND

8 VCC

Table 4-15: USB Port Connector Pinouts

4.3 External Peripheral Interface Connector Panel

Figure 4-15 shows the PCIE-Q350 external peripheral interface connector (EPIC) panel.

The PCIE-Q350 EPIC panel consists of the following:

1 x DVI connector

1 x PS/2 connector

1 x RJ-45 LAN connector
