PCIE-Q350 PICMG 1.3 CPU Card
Page 21
Supports twelve USB 2.0 devices with six UHCI controllers and two EHCI
controller
Complies with System Management Bus (SMBus) Specification, Version 2.0
Supports Intel
®
High Definition Audio
Supports Intel
®
Matrix storage technology
Contains Low Pin Count (LPC) interface
Supports Firmware Hub (FWH) interface
Serial Peripheral Interface (SPI) for Serial and Shared Flash
Intel® Quiet System technology
2.5.3 Intel® ICH9DO High Definition Audio Implementation
NOTE:
The IEI® AC-KIT-888HD HDA audio kit is optional. If an IEI®
AC-KIT-888HD HDA audio kit is required please contact the vendor or
reseller the PCIE-Q350 was purchased from or contact and IEI® sales
representative directly by sending an email to [email protected] .
A RealTek ALC888 7.1+2 channel High Definition Audio (HDA) codec on an optional IEI®
AC-KIT-888HD HDA audio kit is connected to a 10-pin onboard audio connector that is
interfaced through the Intel® High Definition Audio serial link to the HDA controller
integrated on the Intel® ICH9DO. The audio connector is shown in Figure 2-9.

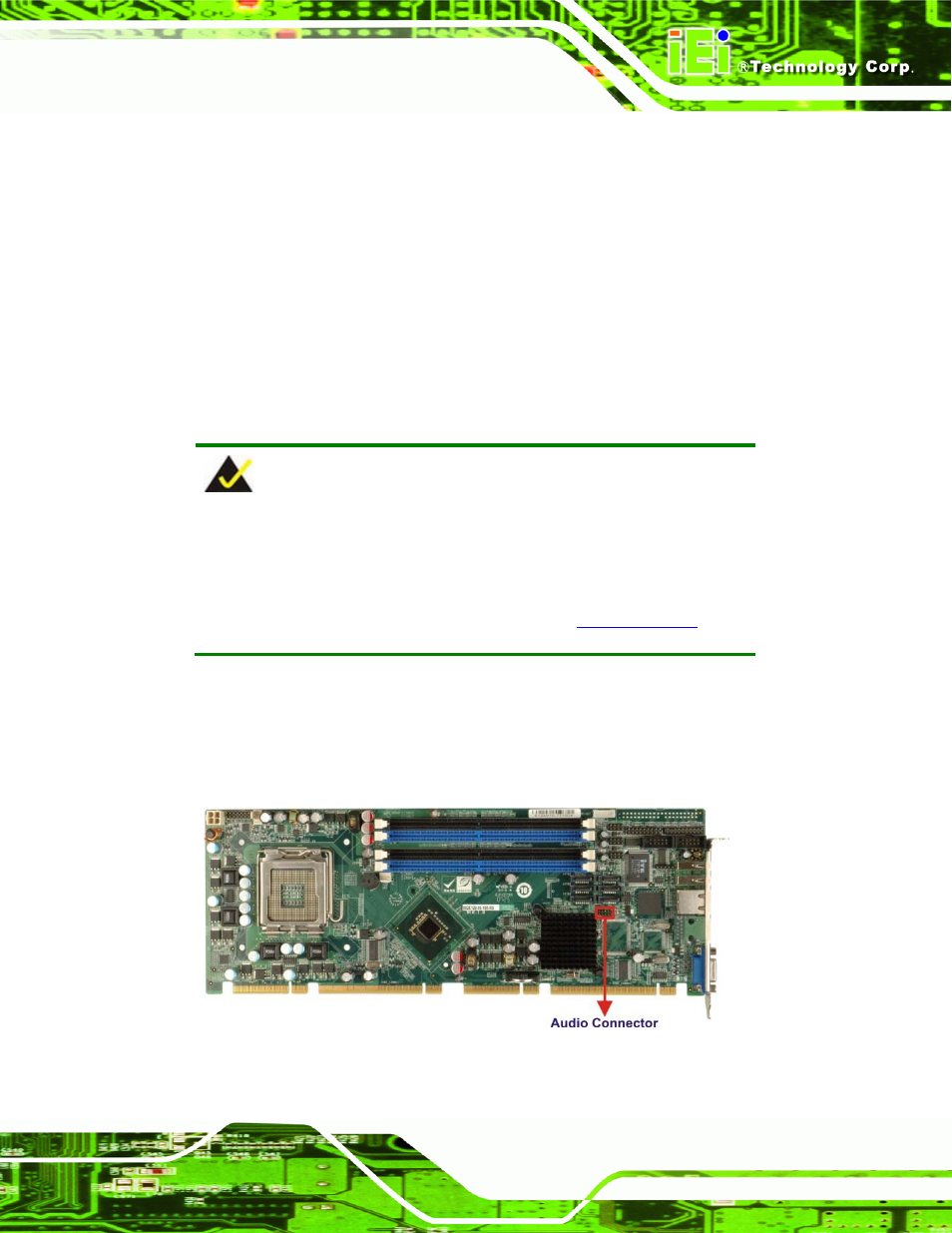

Figure 2-9: Audio Connector
