PCIE-Q350 PICMG 1.3 CPU Card

Page 91

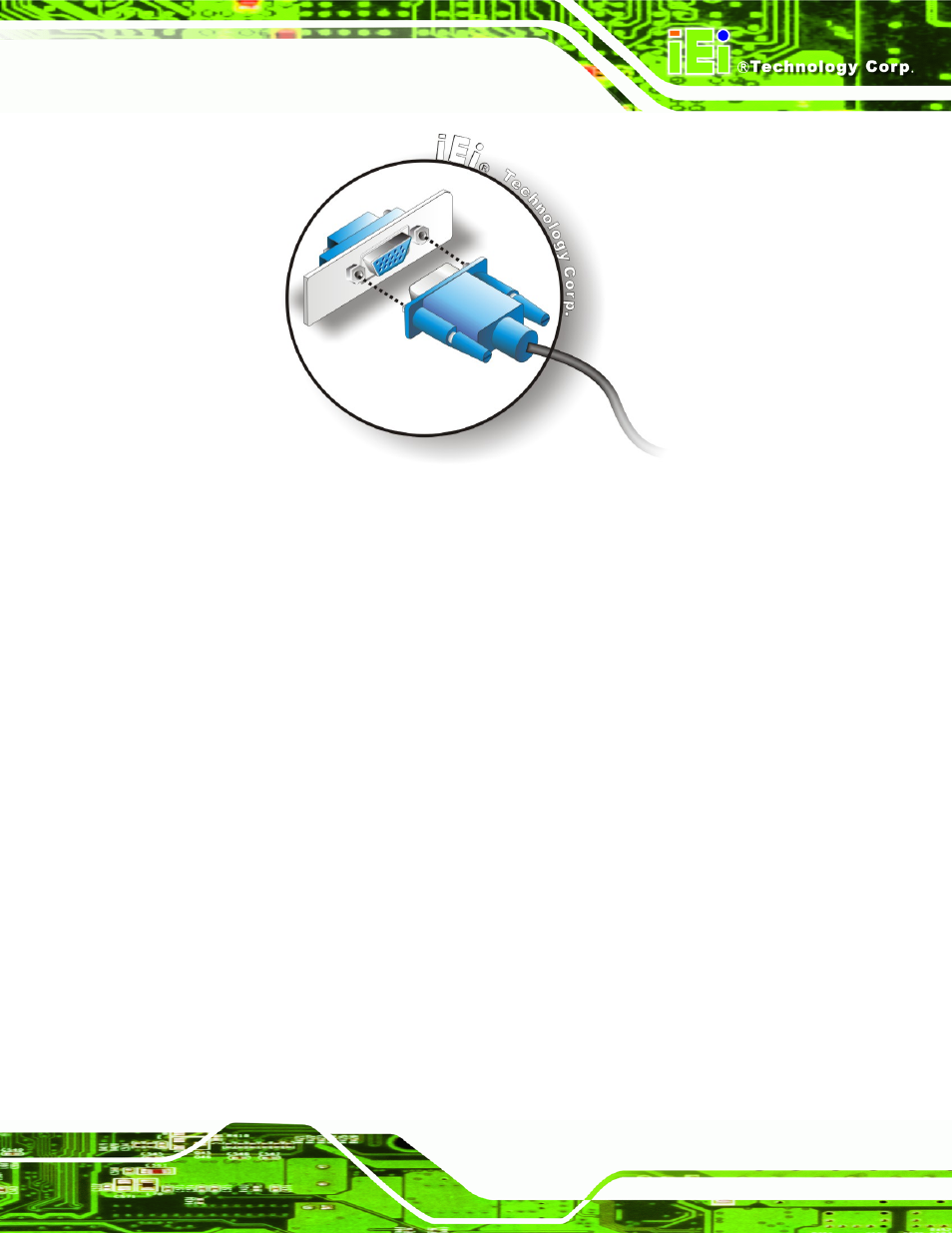

Figure 5-19: VGA Connector

Step 4:

Secure the connector. Secure the DB-15 VGA connector from the VGA

monitor to the external interface by tightening the two retention screws on either

side of the connector.

Step 0:
