CN Location: See Figure 4-9
CN Pinouts: See Table 4-10
The keyboard and mouse connector can be connected to a standard PS/2 cable or PS/2
Y-cable to add keyboard and mouse functionality to the system.

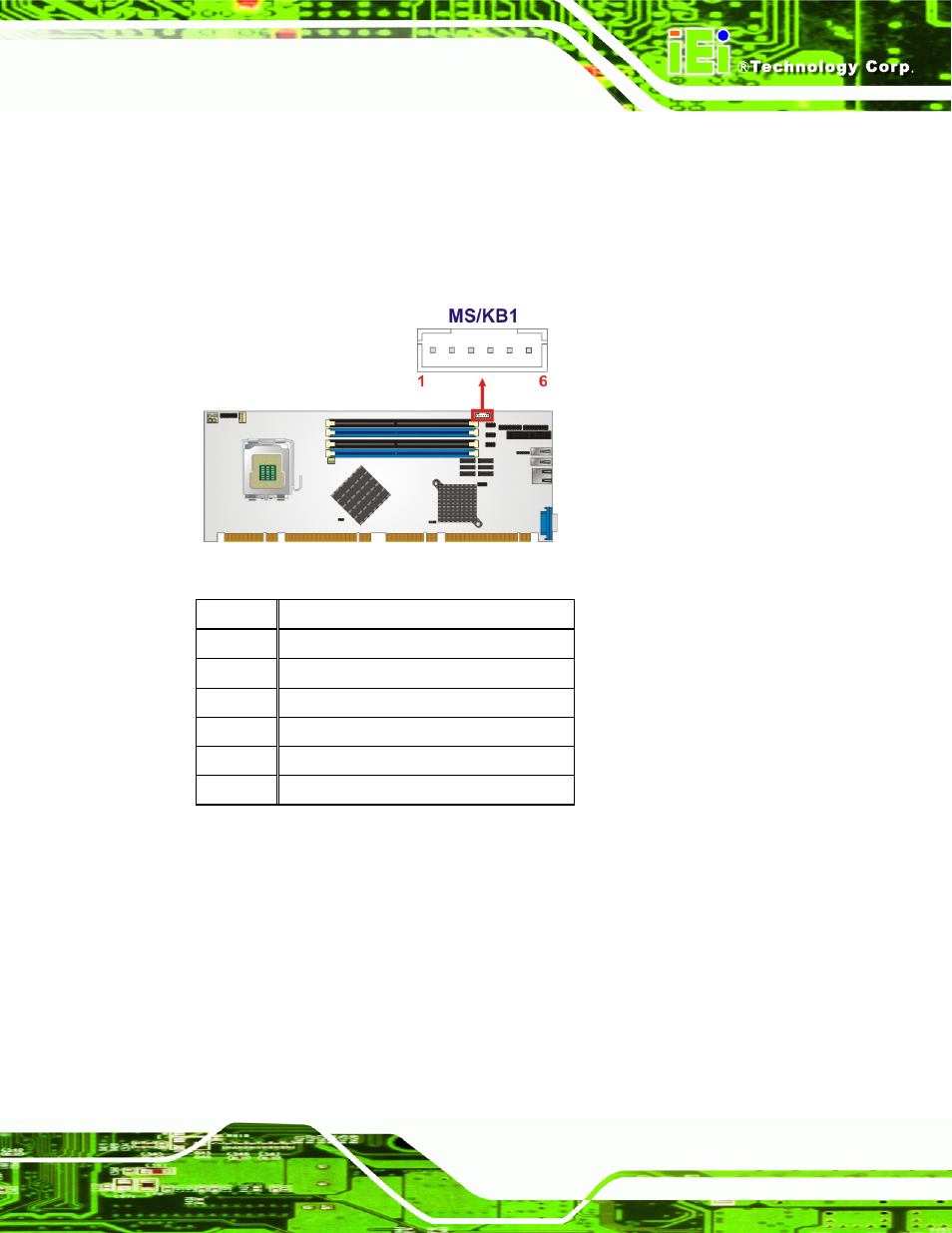

Figure 4-9: Keyboard/Mouse Connector Location
PIN NO. DESCRIPTION
1 +5V KB DATA
2 MS DATA
3 MS CLK
4 KB DATA
5 KB CLK
6 GROUND
Table 4-10: Keyboard/Mouse Connector Pinouts
4.2.9 SATA Drive Connectors
CN Label: SATA1, SATA2, SATA3, SATA4, SATA5. and SATA6
CN Type: 7-pin SATA drive connectors
CN Location: See Figure 4-10
CN Pinouts: See Table 4-11
