PCIE-Q350 PICMG 1.3 CPU Card

Page 87

Step 1:

Find the PCIe x16 socket on the backplane.

Step 2:

Align the edge connectors on the bottom of the PCIe x16 graphics card with the

socket. See Figure 5-16.

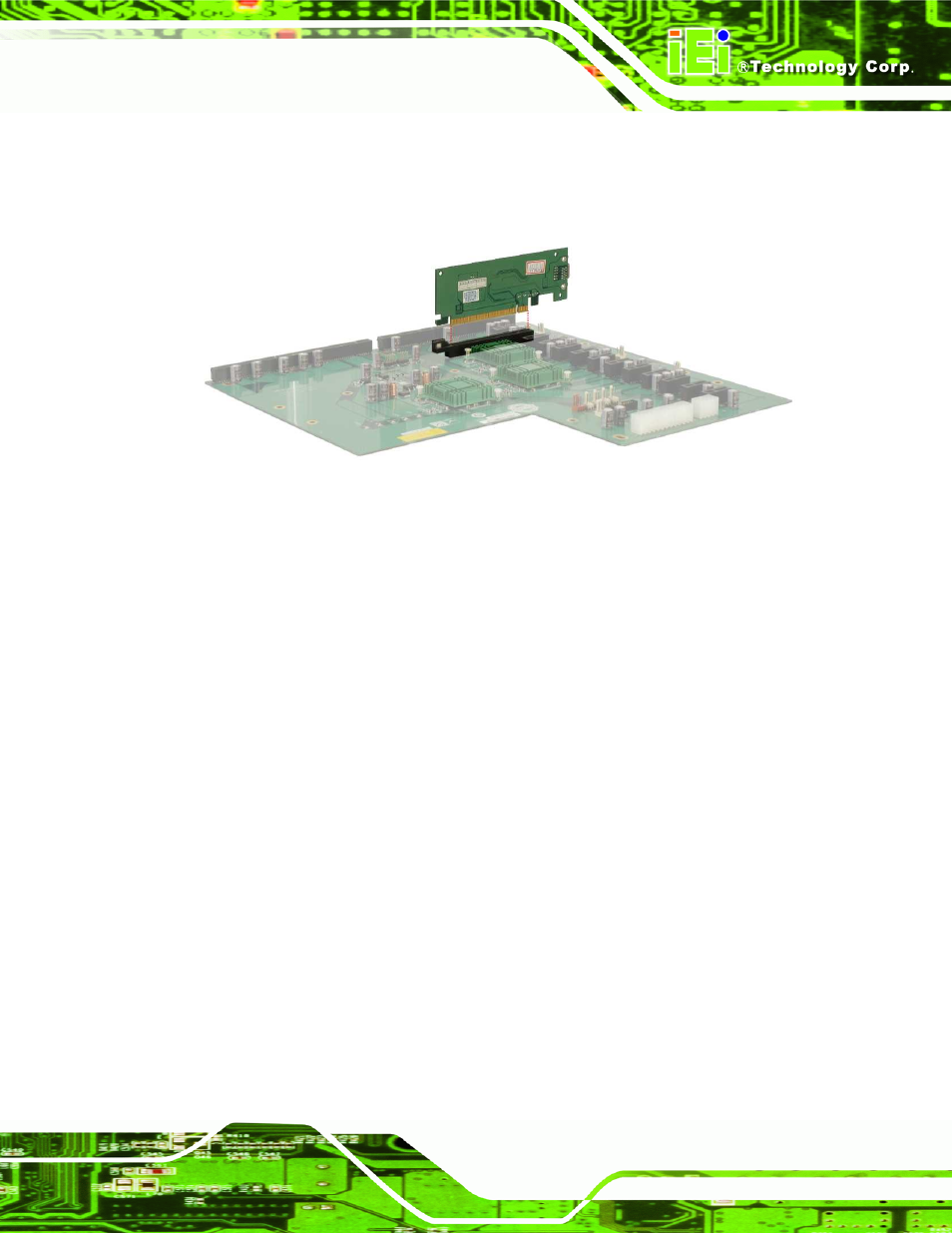

Figure 5-16: PCIe x16 Installation

Step 3:

Gently push the PCIe x16 graphics card into the PCIe x16 socket on the

backplane.

Step 4:

Secure the PCIe x16 to the chassis. To do this please refer to the reference

material that came with the chassis.
