PCIE-Q350 PICMG 1.3 CPU Card

Page 56

The six SATA drive connectors are each connected to second generation SATA drives.

Second generation SATA drives transfer data at speeds as high as 300 Mbps. The SATA

drives can be configured in a RAID configuration.

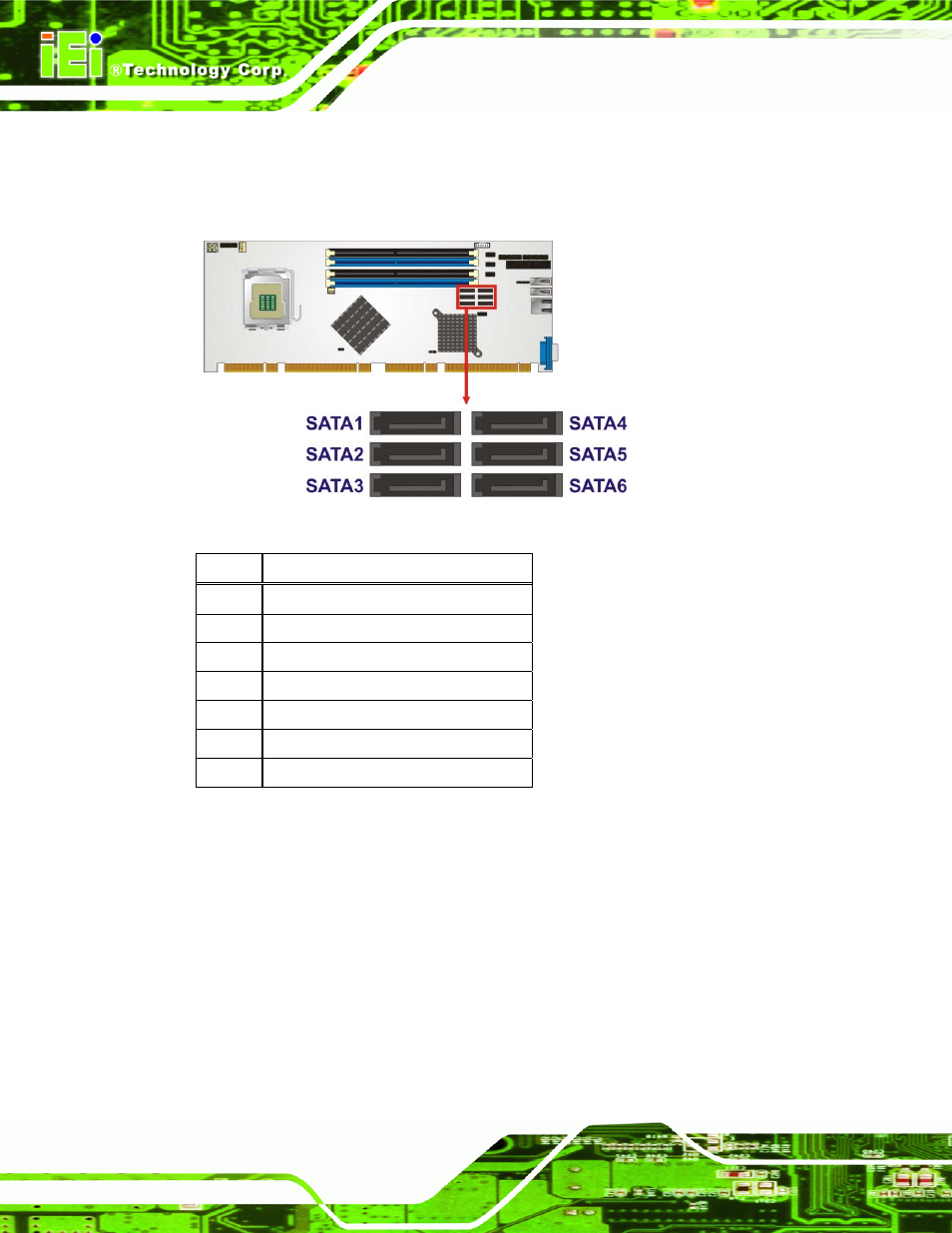

Figure 4-10: SATA Drive Connector Locations

PIN NO. DESCRIPTION

1 GND

2 TX+

3 TX-

4 GND

5 RX-

6 RX+

7 GND

Table 4-11: SATA Drive Connector Pinouts

4.2.10 Serial Port Connector (COM1, COM 2)

CN Label:

COM1 and COM2

CN Type:

10-pin box header (2x5)

CN Location:

See Figure 4-11

CN Pinouts:

See Table 4-12
