PCIE-Q350 PICMG 1.3 CPU Card
Page 86
Step 3: Insert the cable connectors. Once the cable connectors are properly aligned
with the USB connectors on the PCIE-Q350, connect the cable connectors to
the onboard connectors. See Figure 5-15.

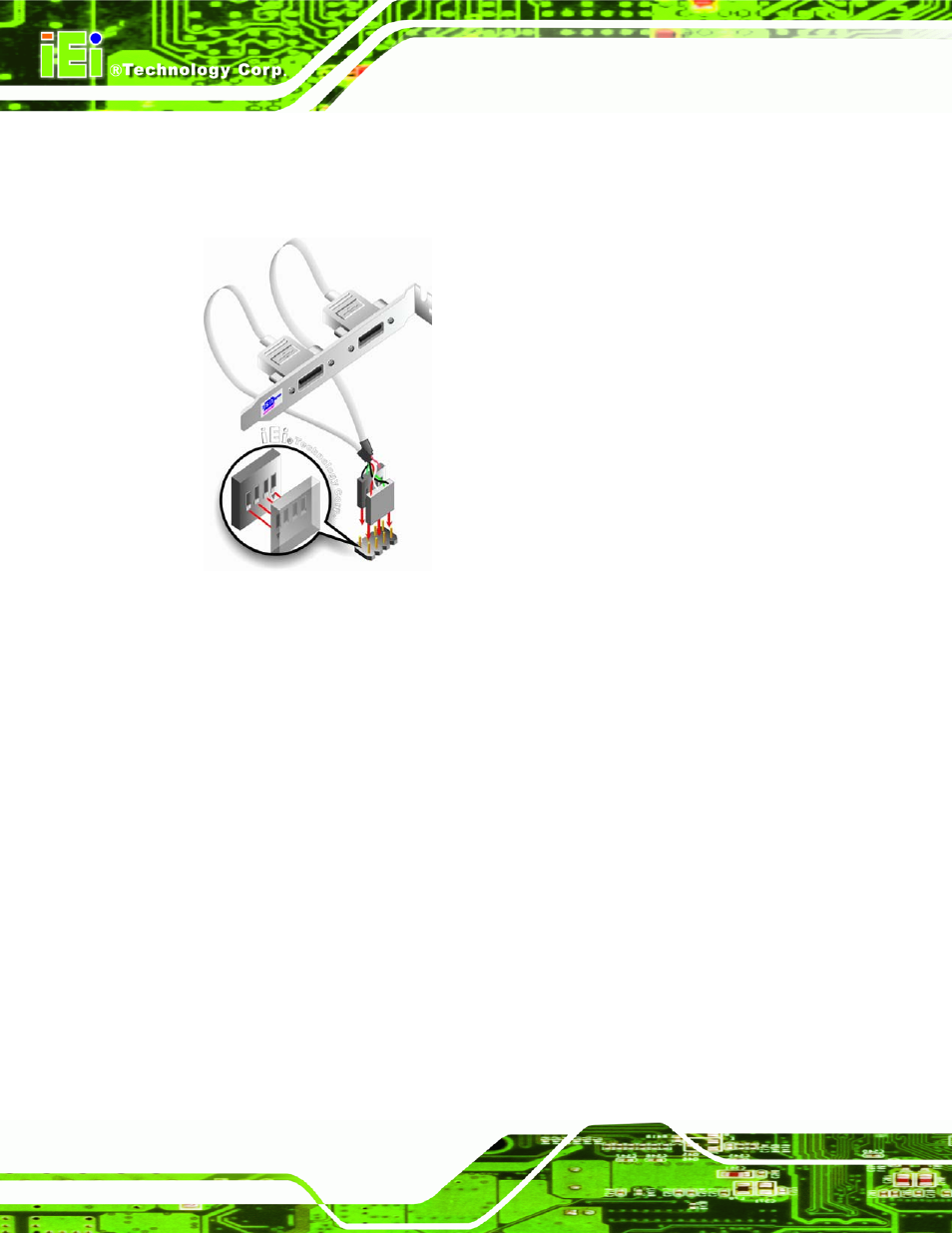

Figure 5-15: Dual USB Cable Connection
Step 4: Attach the bracket to the chassis. The USB 2.0 connectors are attached to a
bracket. To secure the bracket to the chassis please refer to the installation
instructions that came with the chassis. Step 0:
5.8 Installing Devices on a PICMG 1.3 Backplane
Compatible PICMG 1.3 backplanes can accommodate the following devices:
PCIe x16 graphics cards
SDVO device graphics card
PCIe x4 expansion cards
PCIe x1 expansion cards
PCI expansion cards
5.8.1 PCIe x16 Graphics Card Installation
To install a PCIe x16 graphics card onto a backplane, please do the following:
