PCIE-Q350 PICMG 1.3 CPU Card
Page 85

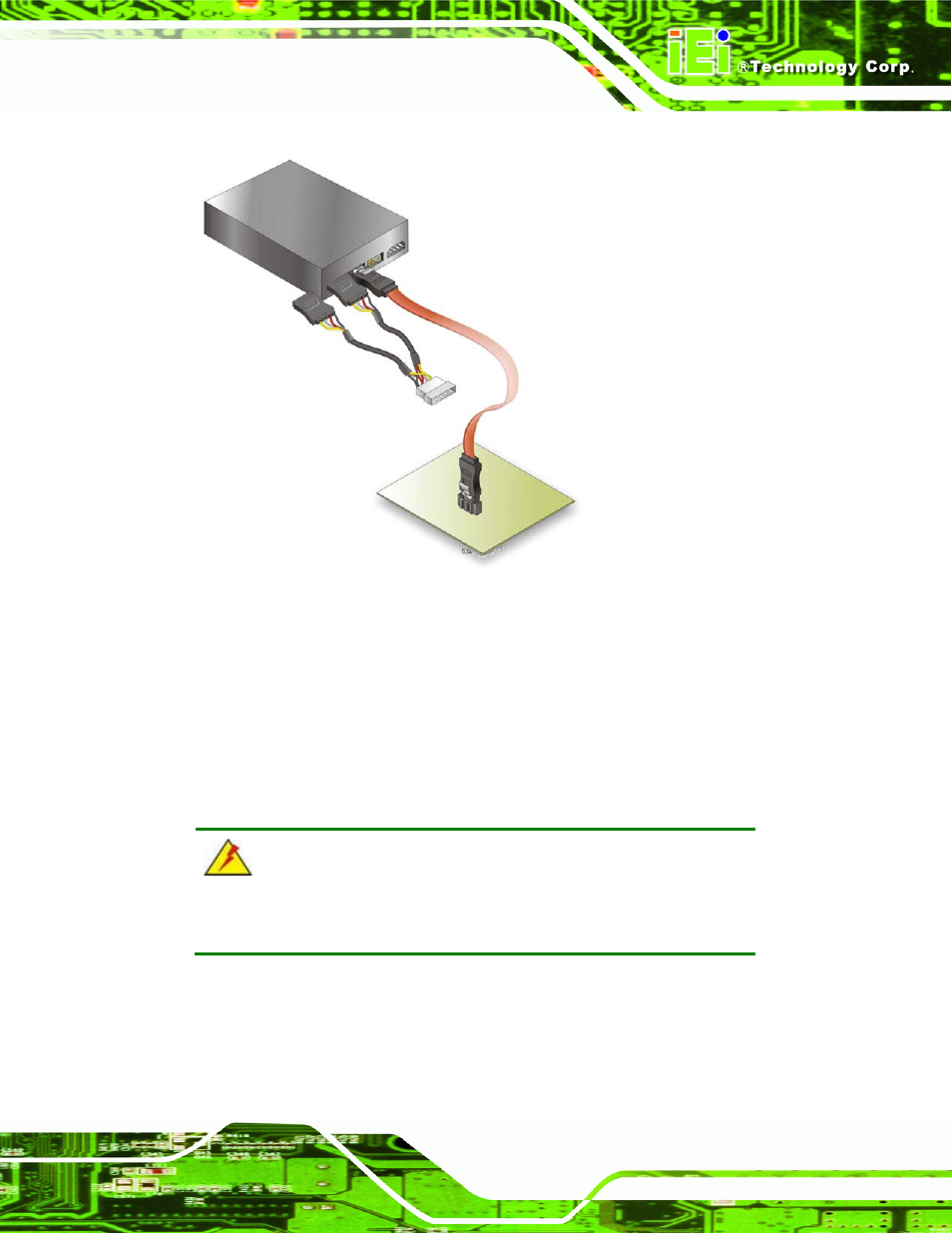

Figure 5-14: SATA Power Drive Connection
5.7.5 USB Cable (Dual Port)
The PCIE-Q350 is shipped with a dual port USB 2.0 cable. To connect the USB cable
connector, please follow the steps below.
Step 1:
Locate the connectors. The locations of the USB connectors are shown in
Chapter 3.
WARNING:
If the USB pins are not properly aligned, the USB device can burn out.
Step 2:
Align the connectors. The cable has two connectors. Correctly align pin 1on
each cable connector with pin 1 on the PCIE-Q350 USB connector.
