30 Warner Electric • 800-825-9050 P-202-01 • 819-0482

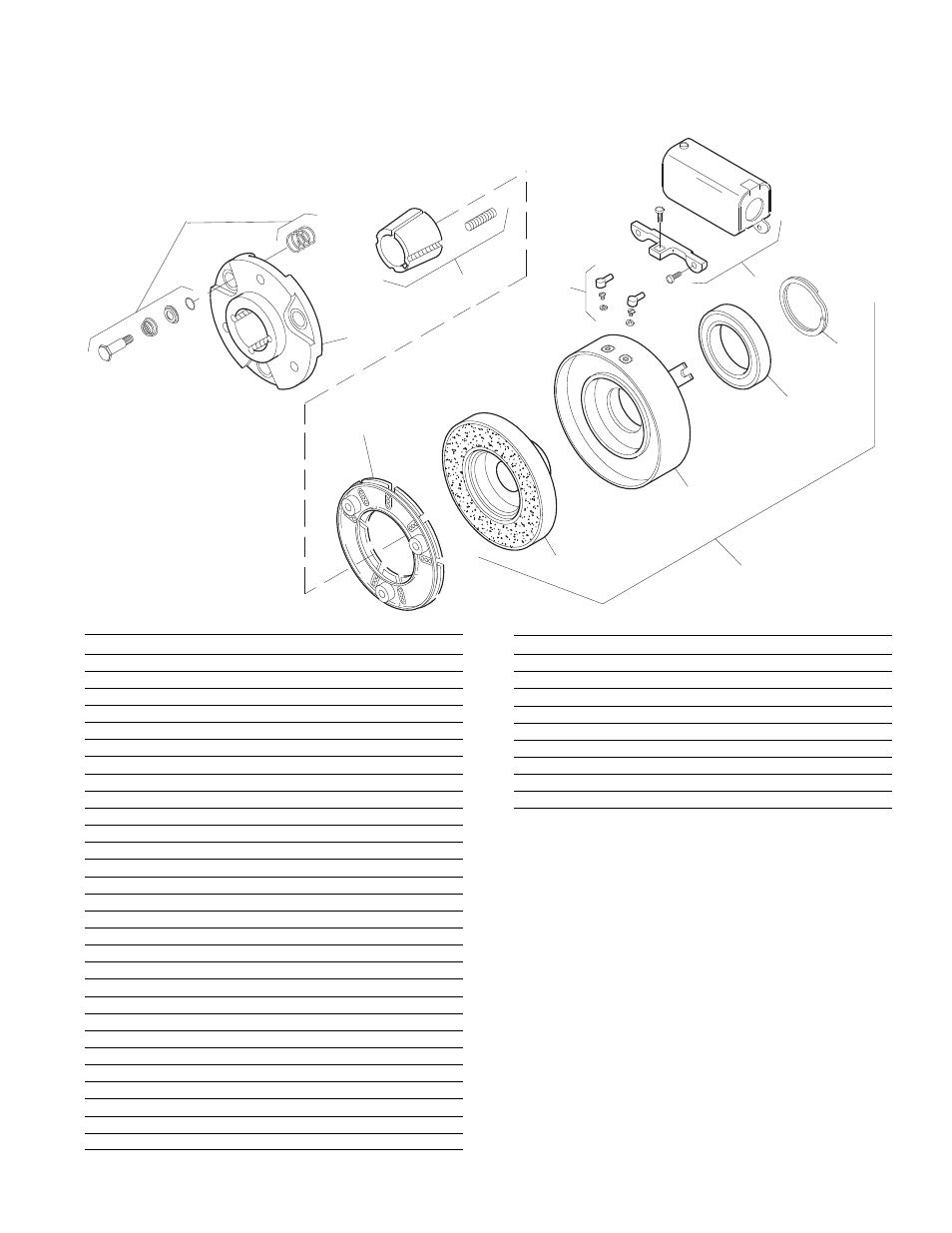

3
1
2
5-2-1
5-4
6
5-3
5-2
5
(Shipped Assembled)
5-1
4
Item Description Part Number Qty.
1 Armature Hub 5300-541-004 1
2 Bushing*
1/2" to 1-1/4" Bore 180-0116 to 180-0128 1
3 Autogap Accessory 5200-101-009 3
4 Armature 5300-111-002 1
5 Field and Rotor Assembly 1
6 Volt – 3/4" Bore 5200-452-002
24 Volt – 3/4" Bore 5200-452-004
90 Volt – 3/4" Bore 5200-452-005
6 Volt – 7/8" Bore 5200-452-008
24 Volt – 7/8" Bore 5200-452-010
90 Volt – 7/8" Bore 5200-452-011
24 Volt – 15/15" Bore 5200-452-016
90 Volt – 15/16" Bore 5200-452-017
6 Volt – 1" Bore 5200-452-020
24 Volt – 1" Bore 5200-452-022
90 Volt – 1" Bore 5200-452-023
6 Volt – 1-1/8" Bore 5200-452-026
24 Volt – 1-1/8" Bore 5200-452-028
90 Volt – 1-1/8" Bore 5200-452-029
6 Volt – 1-1/4" Bore 5200-452-032
24 Volt – 1-1/4" Bore 5200-452-034
90 Volt – 1-1/4" Bore 5200-452-035
5-1 Rotor 1
3/4" Bore 5200-751-002
7/8" Bore 5200-751-003
15/16" Bore 5200-751-004
1" Bore 5200-751-005
1-1/8" Bore 5200-751-006
How to Order:
1. Specify Bore Size for Item 2 and Item 5.
2. Specify Voltage for Item 5.
Example:
SFC-500 Clutch Coupling per I-25540 - 90 Volt
3/4" Bores
These units, when used in conjunction with the correct
Warner Electric conduit box, meet the standards set of
UL508 and are listed under guide card #NMTR2, file
#59164.
These units are CSA certified under file #LR11543.
Item Description Part Number Qty.
1-1/4" Bore 5200-751-007
5-2 Field & Bearing Assembly 1
6 Volt 5200-451-024
24 Volt 5200-451-026
90 Volt 5200-451-027
5-3 Terminal Accessory 5311-101-001 1
5-4 Ball Bearing 166-0110 1
5-5 Retainer Ring 748-0002 1
6 Conduit Box 5200-101-010 1
*See page 44 for specific part numbers.
SFC-500 Bearing Mounted Clutch Coupling Normal Duty
