Using the InfiniBand Compliance Test Suite Overview of the Compliance Test Suite
66
CATC IBTrainer InfiniBand Exerciser, August 2002
Overview of the Compliance Test
Suite
The CATC IBTrainer Compliance Test Suite window is the user
interface for setting up and running system tests.

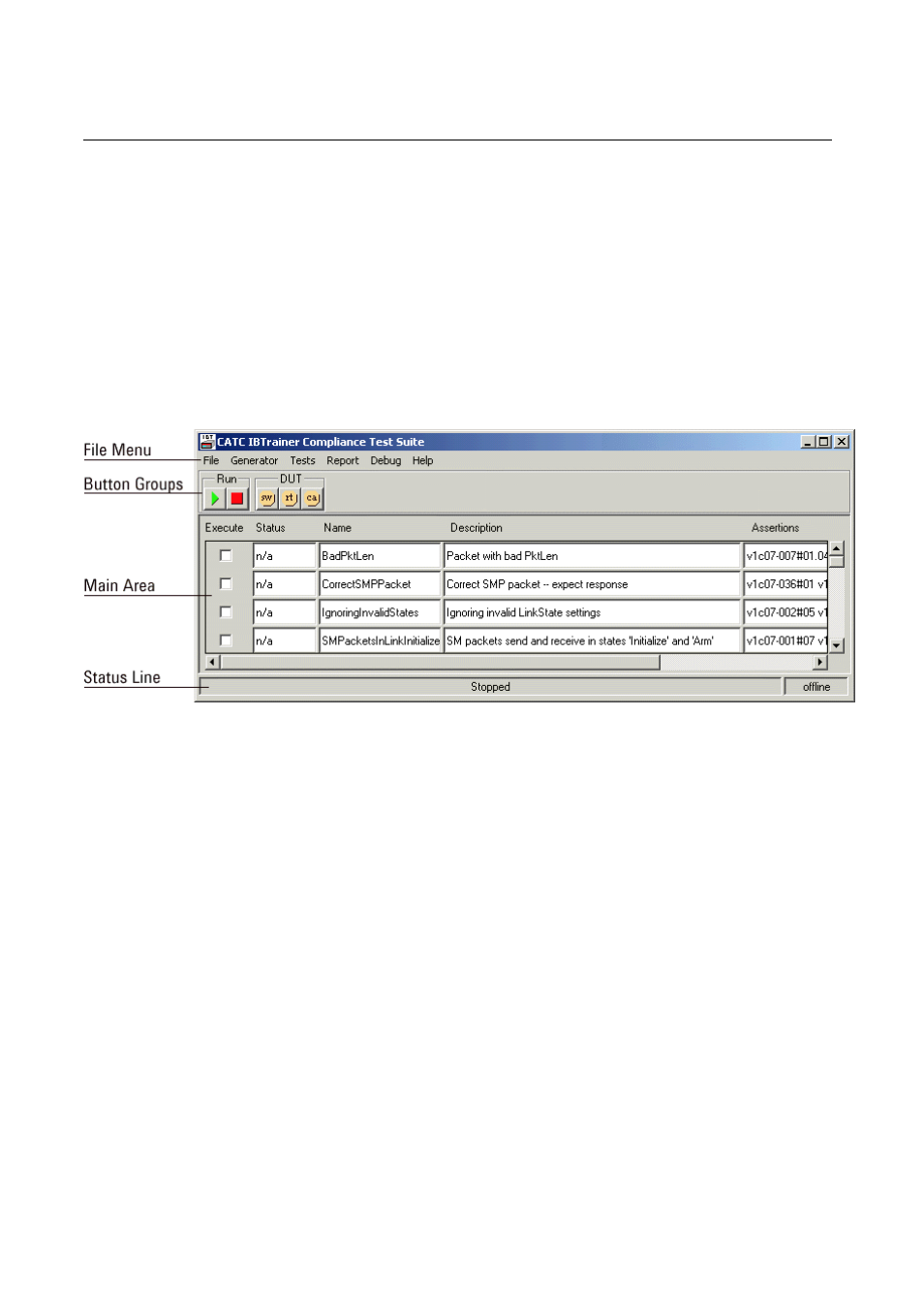

The Main Window of the User Interface consists of the menu bar, button
groups, the main area, and the status line.
Menu Bar The different menus in the menu bar give you access to all of the
InfiniBand Compliance Tester functions.
Button Groups The software provides the following button groups:
Run Contains two buttons for running and stopping the tests.
DUT Contains three buttons to select all tests for Switches (SW),
Routers (RT) and Channel Adapter (CA)
Main Area In the main area, a table lists all available tests. The columns of the table
provide the following information:
• Execute
This column shows which will be executed during the test run.
• Status
– If n/a is displayed in the status field, no status for this test is
available (the test has not yet been started).
– If the status field background is blue, the test is currently running.
