Using Auxiliary Features Visualizing the Network Topology
58
CATC IBTrainer InfiniBand Exerciser, August 2002
Visualizing the Network
Topology
With the software, you can graphically visualize the network architecture
of the network to which your IBTrainer is connected.

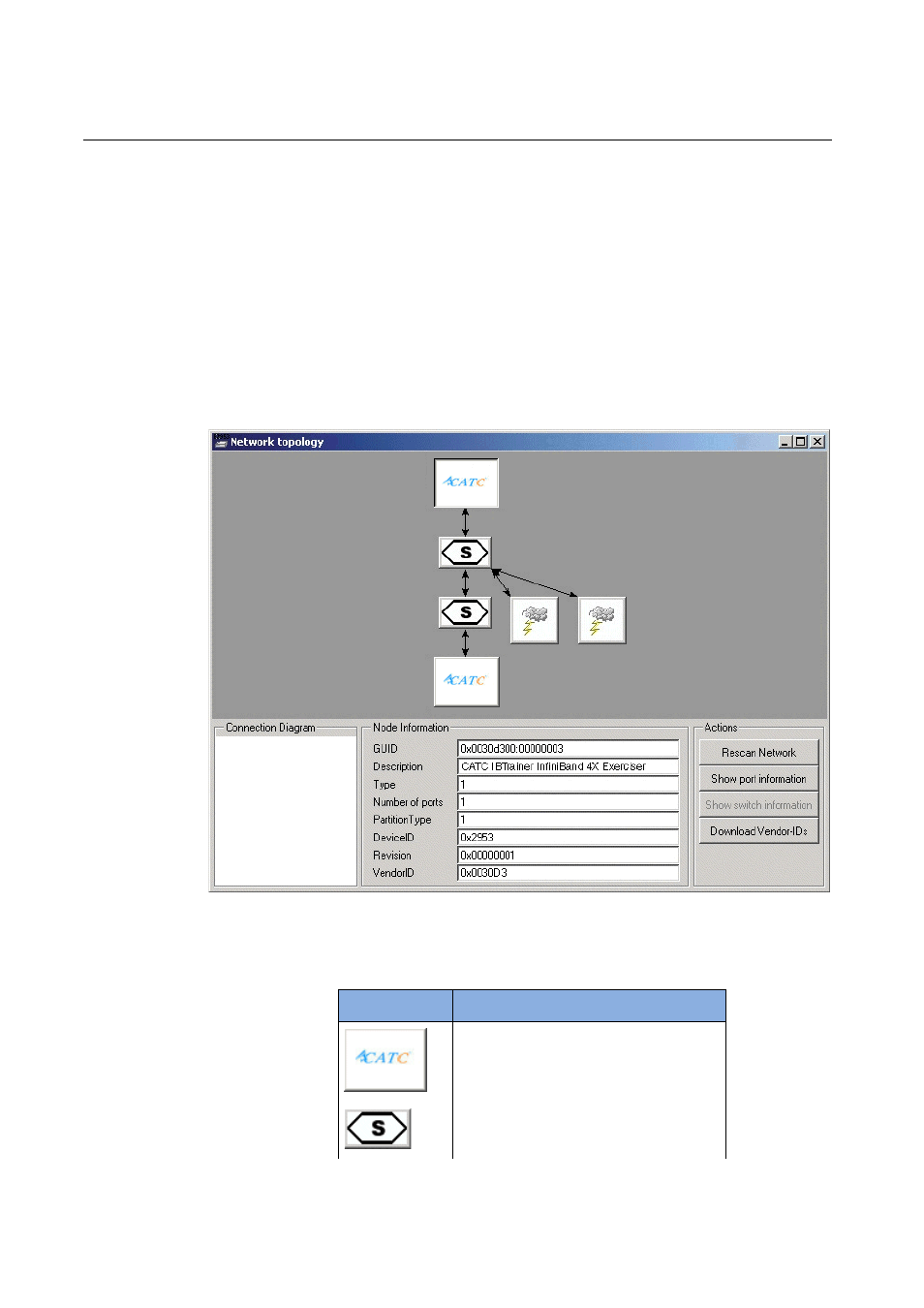

Select Tools>Show network topology. The Network Topology dialog box
opens.
This dialog box shows the different InfiniBand devices attached on the
InfiniBand network and their interconnections. Following symbols are
used to represent InfiniBand devices:
Symbol Description
CATC IBTrainer 4X Exerciser (pressed)
Switch
