Setting Up the Test
Testing with the User Interface
CATC IBTrainer InfiniBand Exerciser, August 2002
41

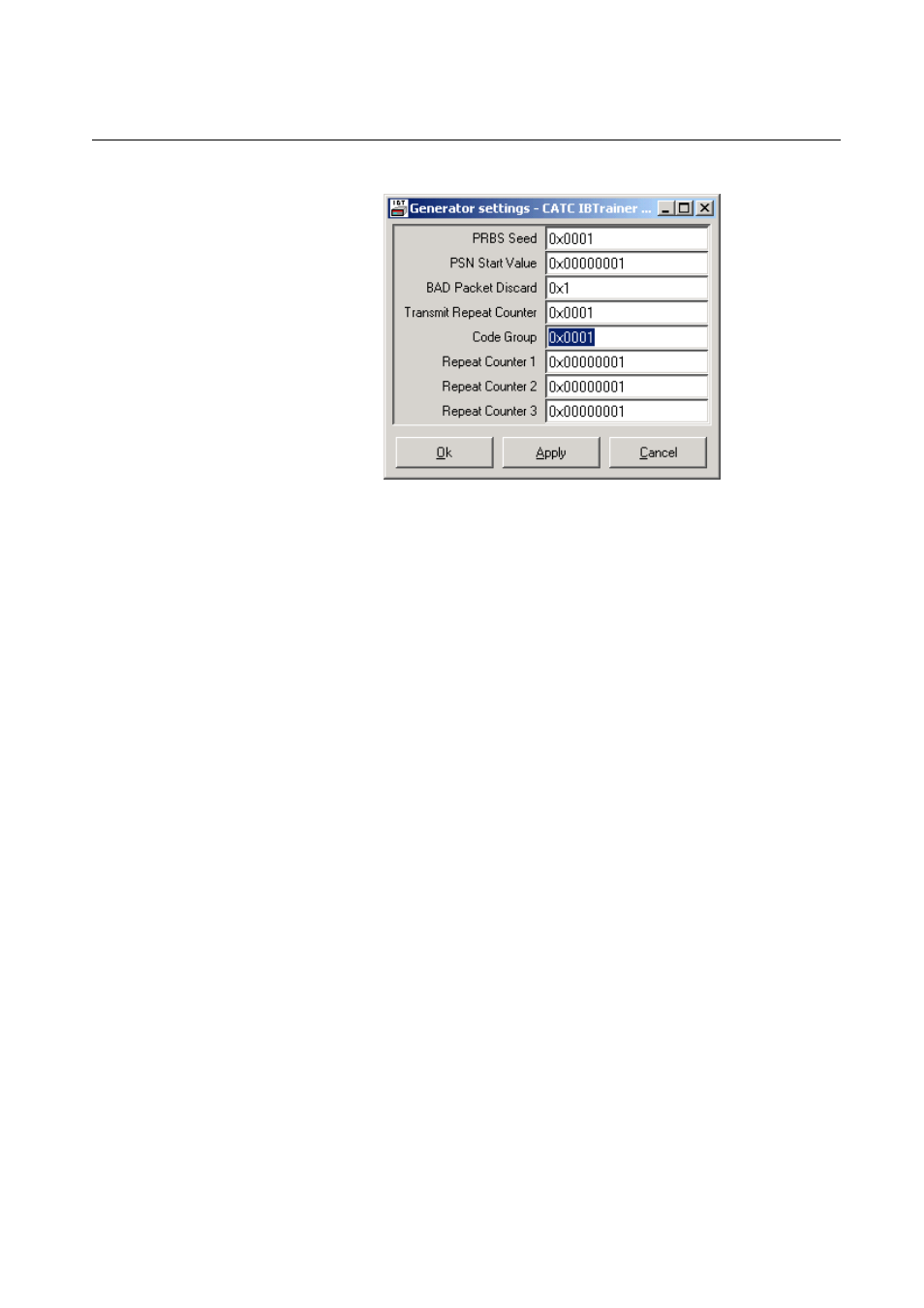

– Set the invalid code group in the Code Group box.
The invalid code group value is a 10B-Code.
– Click Ok.
Using the Transmit Memory for Generating
Sequences of Packets
You can fill a block memory with InfiniBand packets that are then sent
consecutively. The IBTrainer has 2 Mbytes of transmit memory.
There are additional properties that you can set for packets stored in the
transmit memory:
• You can, for instance, set the delay between packets stored in the
transmit memory. This method is described in detail in “Advanced
.
• The transmit memory offers a feature to repeatedly send single
packets from the programmed packet sequence. Refer to “How to
Send a Single Packet Multiple Times” on page 42
for more
information.
• If you have set up a lot of packets in the transit memory that should be
sent as a response to either a received packet or a software-controlled
event, you can specify in the packet properties that a certain packet
should wait for a step signal. This special attribute, called WaitStep, is
set as an advanced attribute in the packets’s properties. Refer to “How
