How to Set Up Outgoing Packets
To change the properties of a given packet:
1 Select the packet.

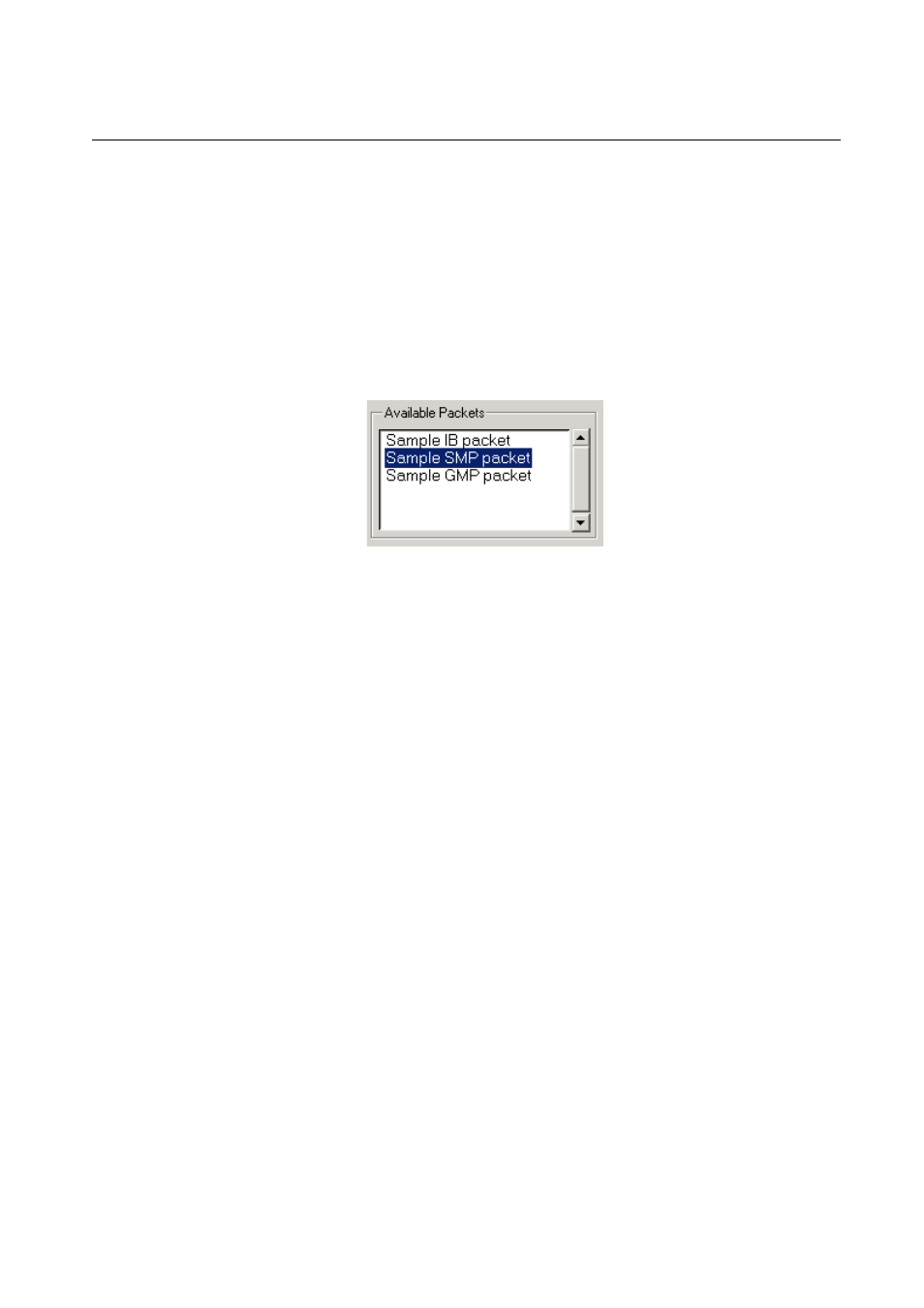

The packet can be located either in the Available Packets list if you
want to send it directly to the DUT or in the Transmit Memory list if
you want to use the transmit memory. Refer to “Using the Transmit
Memory for Generating Sequences of Packets” on page 41
to get more
information about the transmit memory.
2 Double-click the packet.
The dialog box that opens lists the properties of the selected packet.
You can change InfiniBand properties directly or/and set advanced
attributes by clicking Advanced attributes.
N O T E
Packet properties change with the type of packet selected (SMP, IBA,
GMP, RAW or IPv6).
3 For the RAW, IPv6 and IBA packets, you can type in the payload of the
packet directly or load an existing file containing the payload of the
packet by clicking Load Payload from File.
The following figure shows an example of an IBA packet for which the
payload has been specified directly.
