SierraNet M408 User Manual 75
Trigger and Filter Settings in Easy Mode Teledyne LeCroy

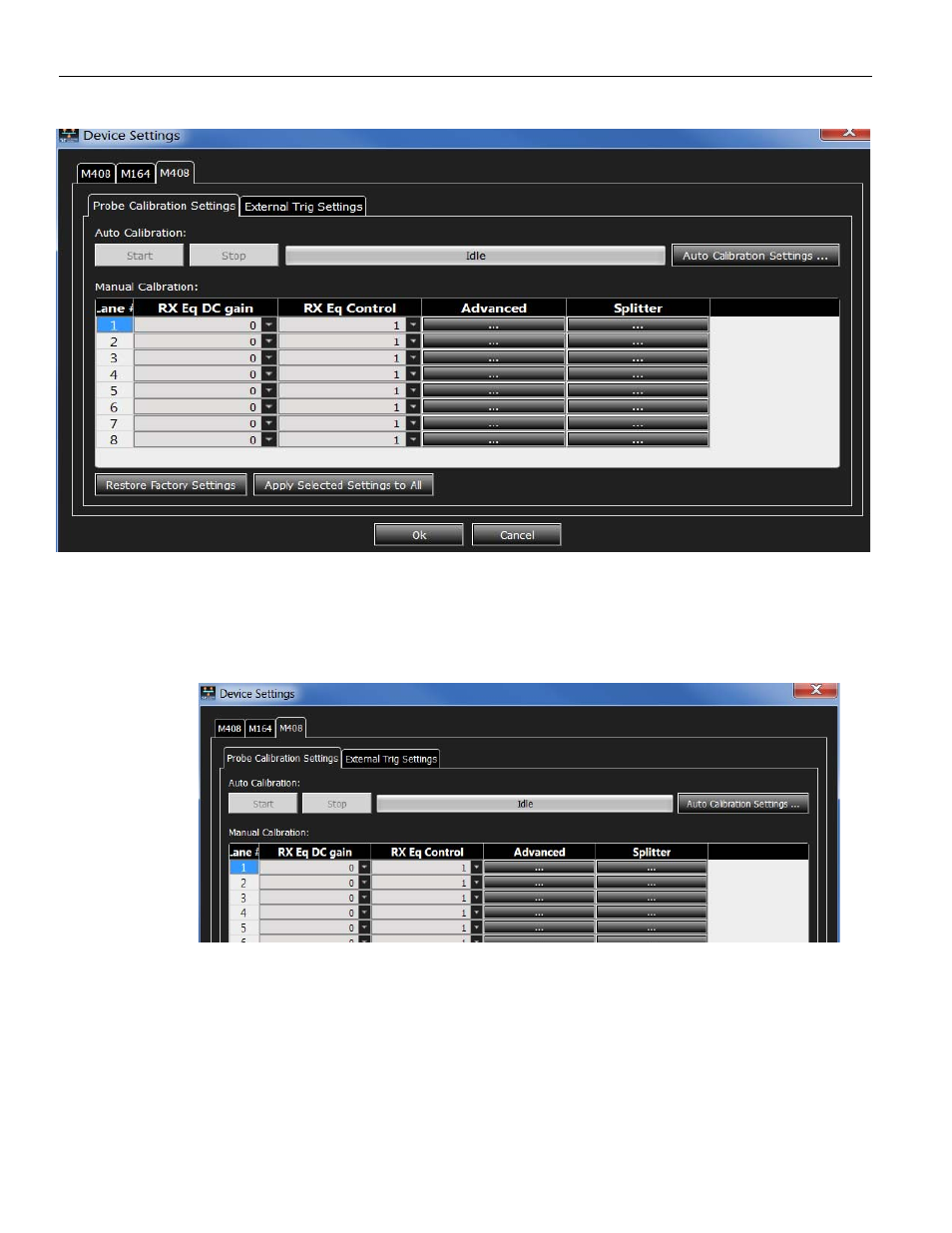

Figure 2.46: Probe Calibration Settings Dialog
Manual Calibration
You can manually calibrate the probe settings.
Figure 2.47: Manual Calibration Dialog
Set the parameters for the following:
 Port # ‐ Select the port.
 RX Eq DC gain ‐ Select value from the drop‐down list.
 RX Eq Control ‐ Select value from the drop‐down list.
 Advanced ‐ Clicking Advanced displays the Advanced Probe Setting dialog (see
Figure 2.48 on page 76 ). Enter the desired values for each of the parameters.
