SierraNet M408 User Manual

15

Expandability

 Teledyne  LeCroy

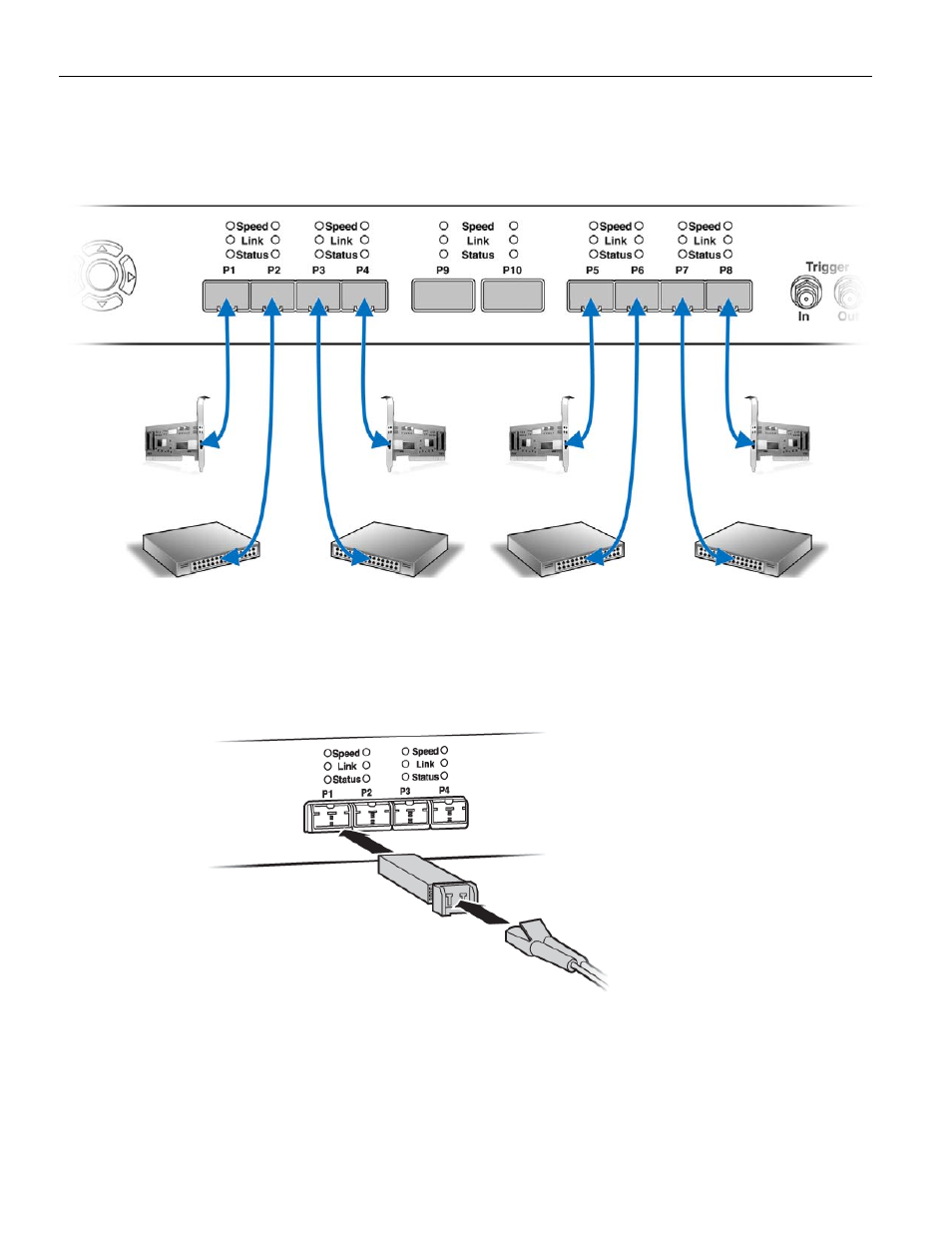

3. Connect the analyzer as shown in the following figure. The following figure shows

connections between Port‐pairs P1‐P2 to Device 1 and Device 2; P3‐P4 to Device 3
and Device 4; and so on.

Figure 1.6: Analyzer Connections

1.3.2

Cables to Use

Connect to and from devices using SFP+/QSFP and a cable suitable for your setup.

Figure 1.7: Analyzer Connections

1.4 Expandability

You can expand the functionality of the tester by cascading multiple SierraNet M408
analyzers with CATC SYNC Expansion Cards

You can remove expansion cards with two simple tools.

2

1

3

4
