SierraNet M408 User Manual 53
Analyzer Settings Teledyne LeCroy

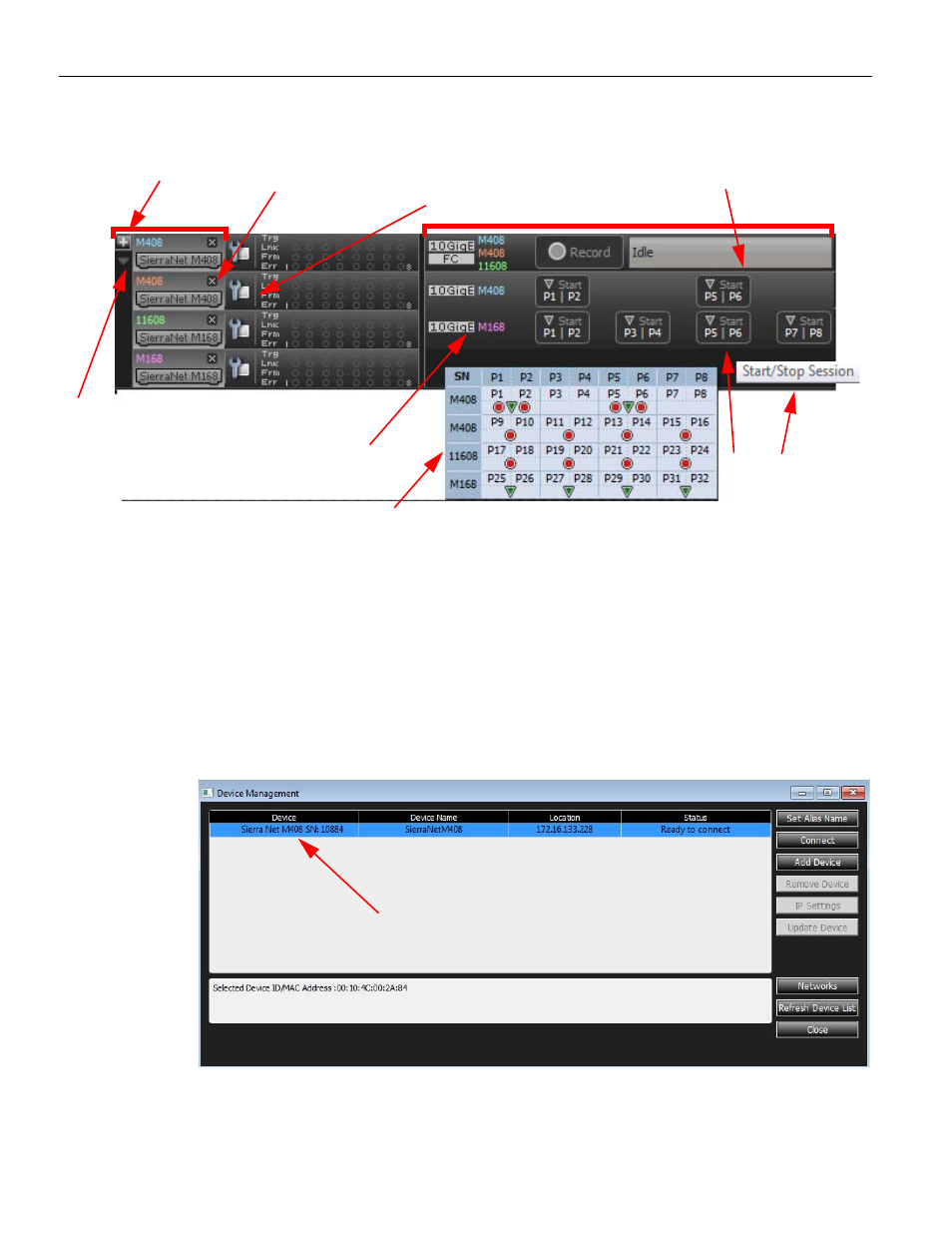

Figure 2.21: Device Pane Displaying Multiple Devices
1. Presents a physical representation of the analyzers.
2. Presents a logical representation of the analyzers.
Perform the following steps to add a device.
1. Click Setup > Device Management.
The Device Management dialog displays.
2. Click on the selected Device (Sierra Net M408 SN: 10884) and click Connect.
Click the + sign to
add a device
Click the x sign to
remove a device
Click the icon to display the
Device Settings dialog
Click any of the ports to
start/stop a session
1
2
Hover the cursor
over the
analyzers to
display port
configurations
Hover the cursor
over the ports to
display tooltip
