Teledyne LeCroy Batch Scenario Overview
236 SierraNet M408 Protocol Analyzer User Manual
5.2.1 Adding Commands
Four types of commands are available:
Start Analyzer
Drag and drop the Start Analyzer command to display the Command Property dialog.

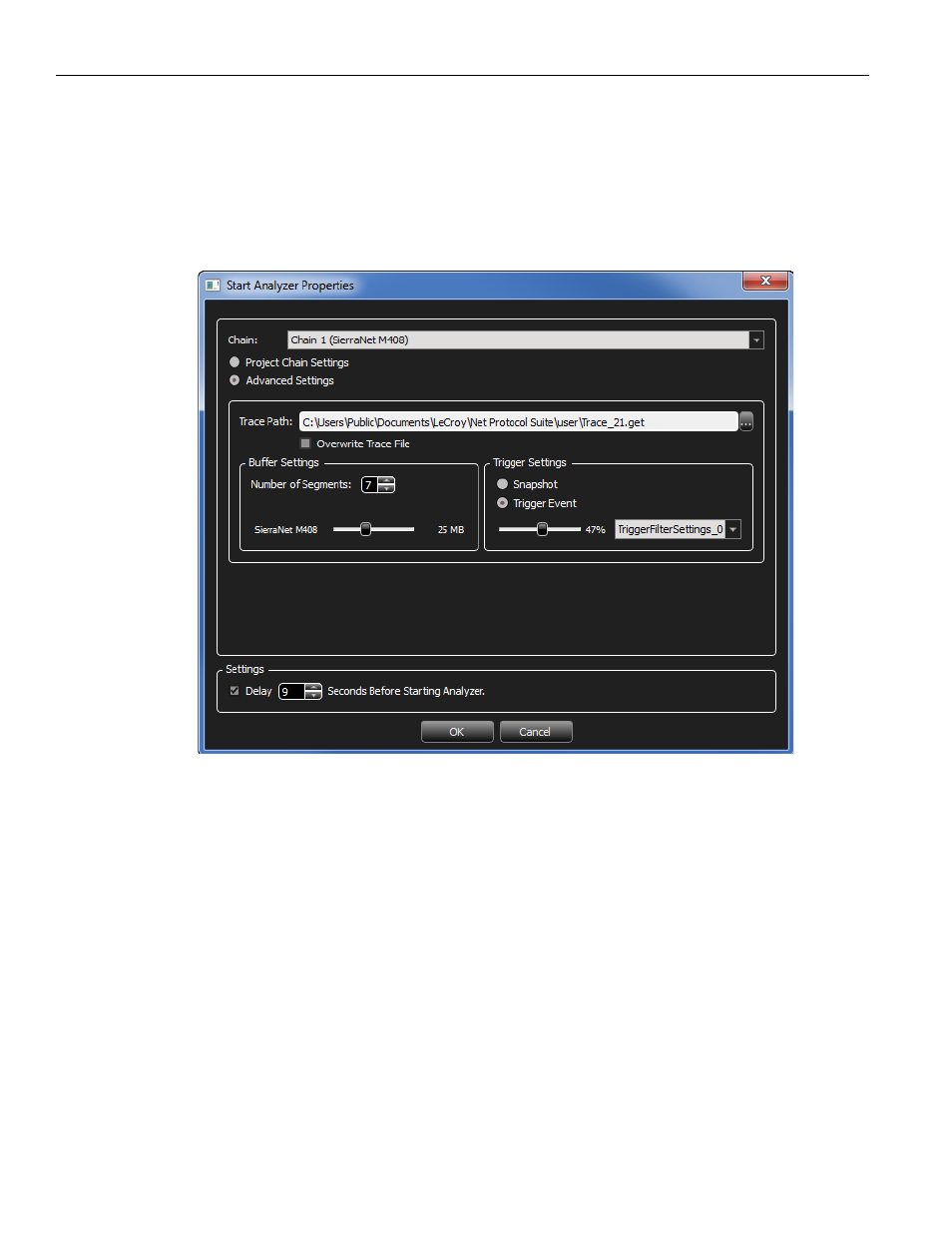

Figure 5.3: Start Analyzer Command Property Dialog
Chain: Select a Chain from the drop‐down list.
Project Chain Settings: Click this button to select Project Chain Settings.
Advanced Settings: Click this button to select Project Chain Settings to activate the
settings below:
Trace Path: Click the ellipsis button to display the Select Trace File Name dialog to
save the trace file.
Overwrite Trace File: Select the checkbox to overwrite the trace file.
Buffer Settings: Set the number of segments and the buffer size.
Trigger Settings: Select Snapshot or Trigger Event. Select the Trigger Filter Settings
from the dropdown list and move the slider to the desired
percentage.
If a delay is needed after the command is executed, check the Delay checkbox and set the
time in seconds.
