Teledyne LeCroy Trigger and Filter Settings in Easy Mode
112 SierraNet M408 User Manual
 iSCSI Reject
 iSCSI Task Mgmt Request
 iSCSI Text Request
ISCSI Cmd
Any SCSI Command
Double‐click 6‐Byte Any SCSI Cmd to open the dialog.

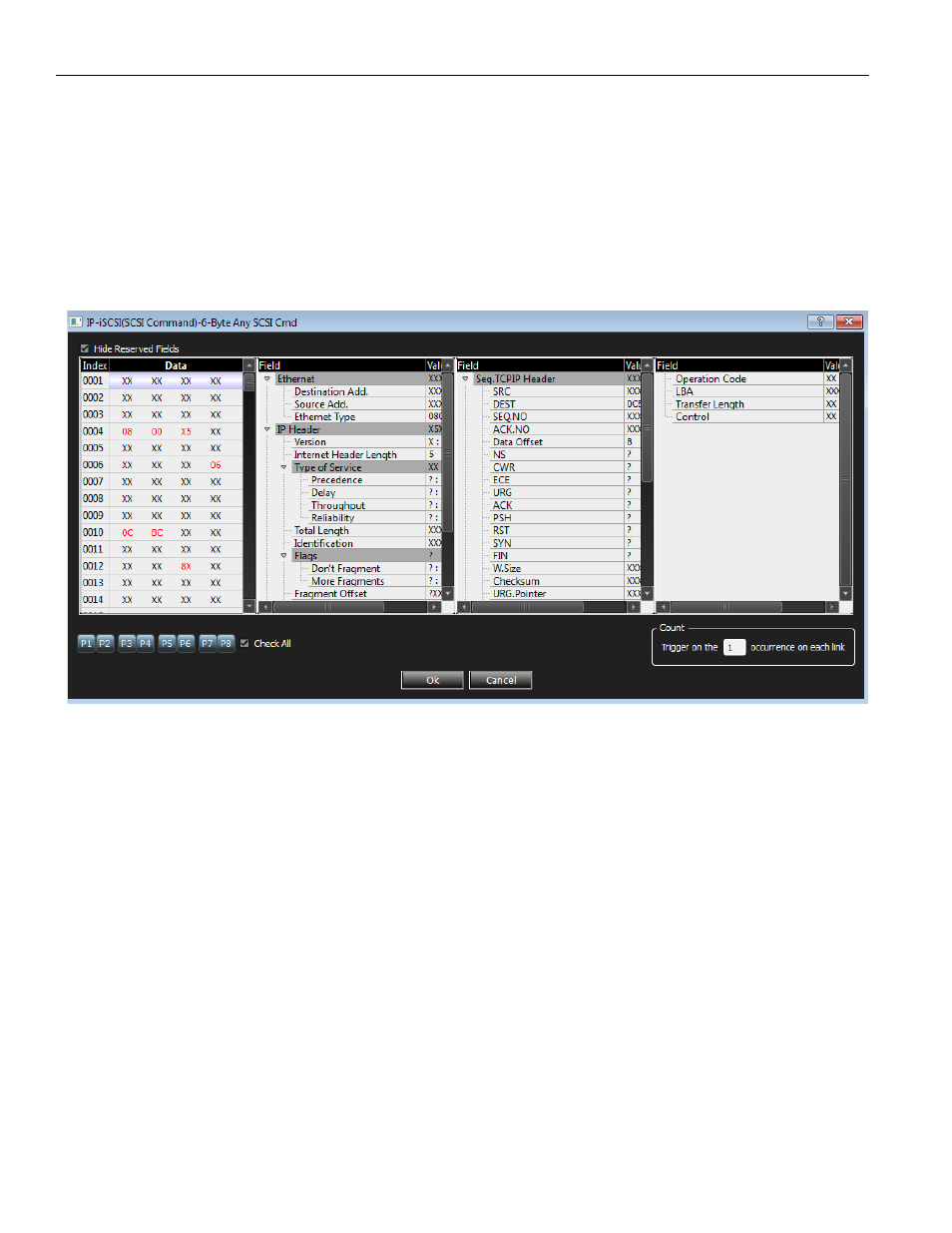

Figure 2.74: 6-Byte Any SCSI Cmd Dialog
Enter the values for the Ether header, IP Header and the count of the expected number of
occurrences. Check the Check All box to select ports P1 through P8 or individually select
ports.
Other ISCSI patterns available are:
 6‐Byte Any SCSI Cmd
 10‐Byte Any SCSI Cmd
 12‐Byte Any SCSI Cmd
 16‐Byte Any SCSI Cmd
 Long LBA16‐Byte Any SCSI Cmd
 Variable Length Any SCSI Cmd
 Variable Length For Long LBA 32‐Byte Any SCSI Cmd
 SPC4
 SBC3
 MMC6
 SMC2
 SSC2
 OSD2
 ADC3
