Traffic Summary View
Click on Analysis and select Traffic Summary View or click the icon to display the
Traffic Summary View.

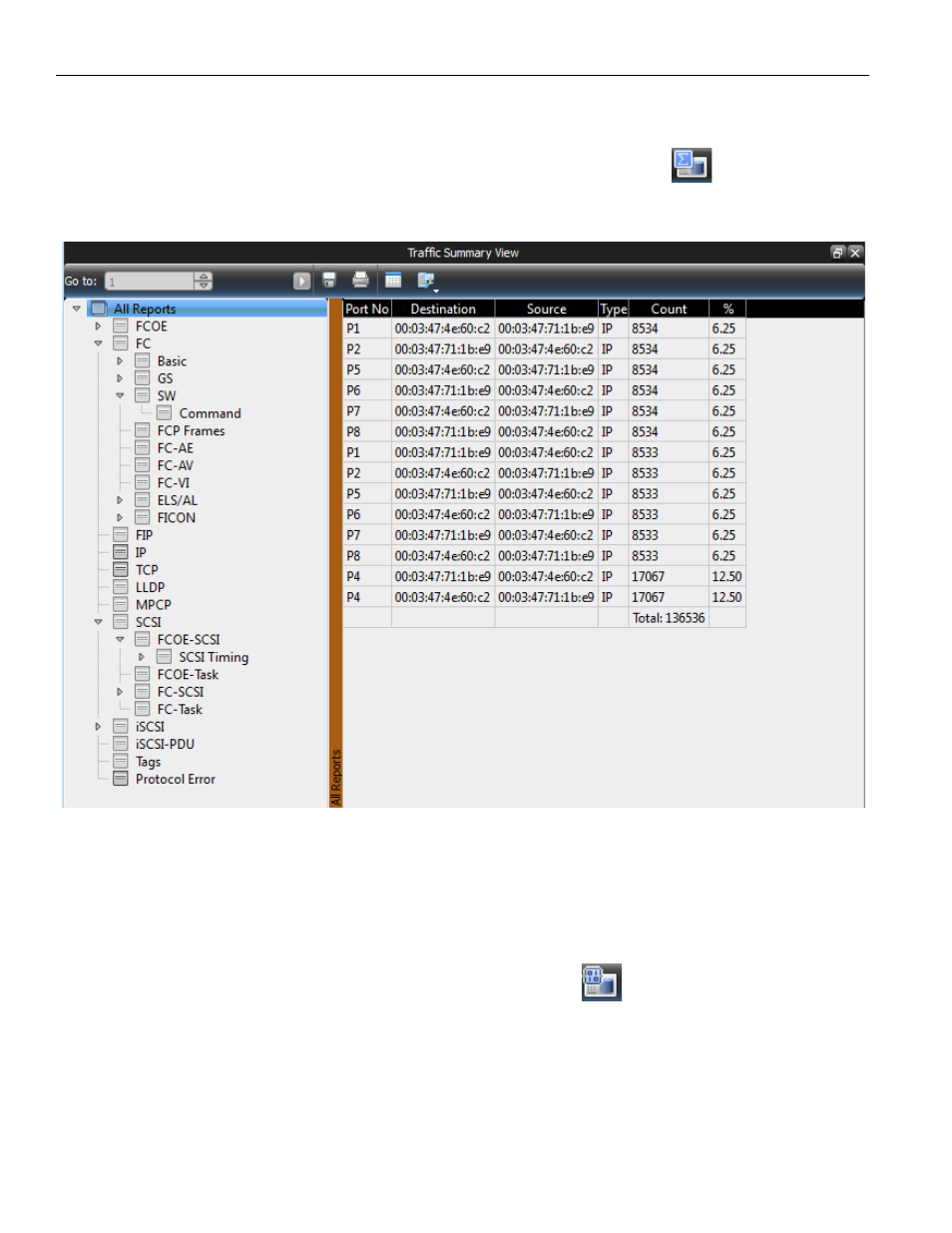

Figure 2.12: Traffic Summary View
The Traffic Summary View for each captured signal can be viewed. This Summary View
displays the statistics of commands, the type of command and the total count. For each
command it displays the percent of the total count.
Data View
Click on Analysis and select Data View or click the icon to display the Data View
(see Figure 2.13 on page 47 ).
