SierraNet M408 User Manual 149
Chapter 3
Display Manipulation
3.1 Viewer Display
After data is captured (Recorded), the Viewer displays the captured data and saves it as a
trace file with a .get file extension.
Note that statistics are available only after the whole trace has uploaded. The data is
available for analysis in various views which are explained in this section.
Click on Analysis in the Analyzer main menu options to enable and disable different trace
views.
You can decode assignments by selecting Analysis > Decoding Assignments... The
following SCSI Spec Assignment dialog displays. For additional information see
“Decoding
Assignments” on page 153 .

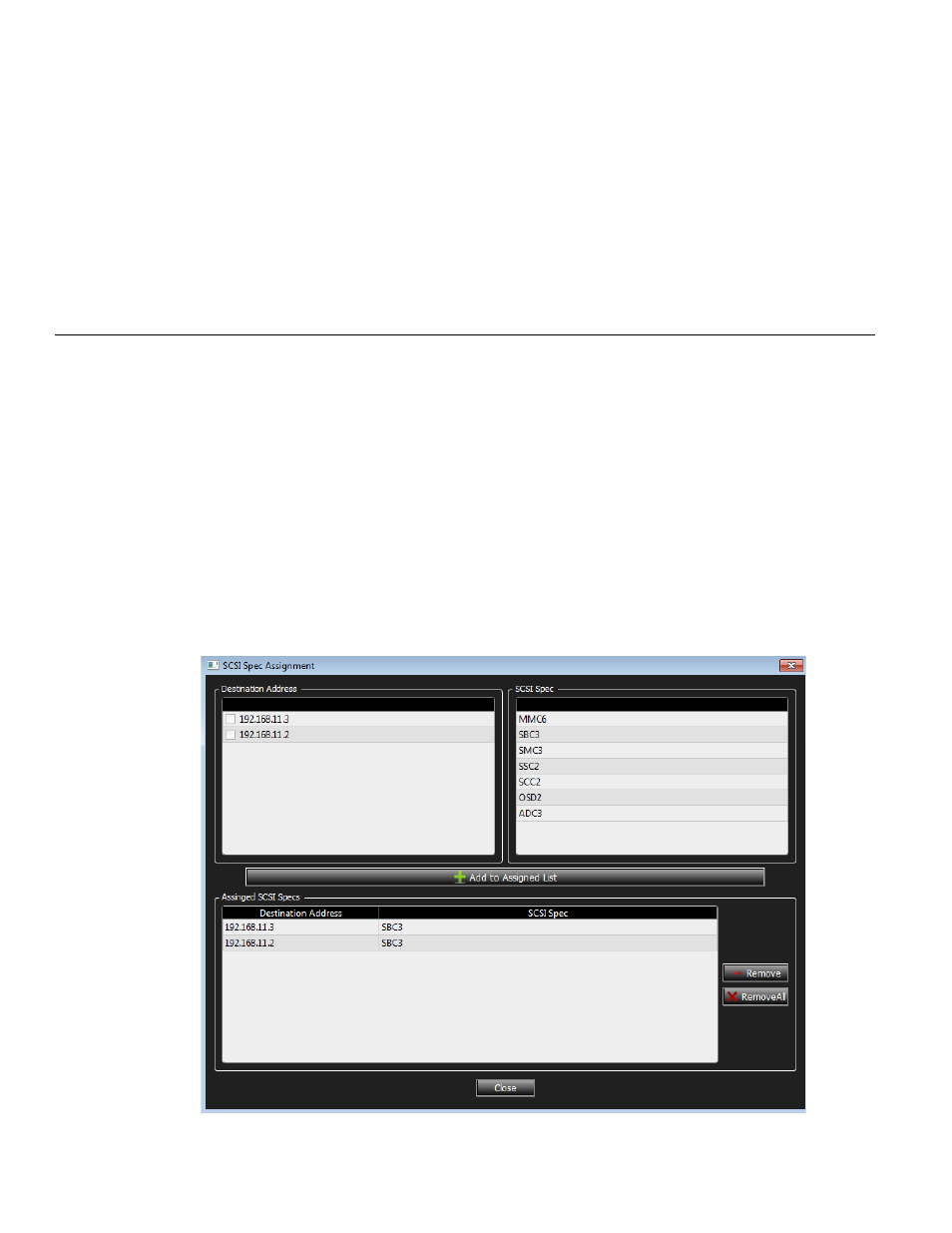

Figure 3.1: SCSI Spec Assignment
