LogicStudio
A
34 922294 Rev A
Setup
Setup functions are accessed under Setup on the menu bar.
The setup menu provides alternative access to Signals, Instrument, and
Trigger setup windows identical to the buttons on the dashboard.

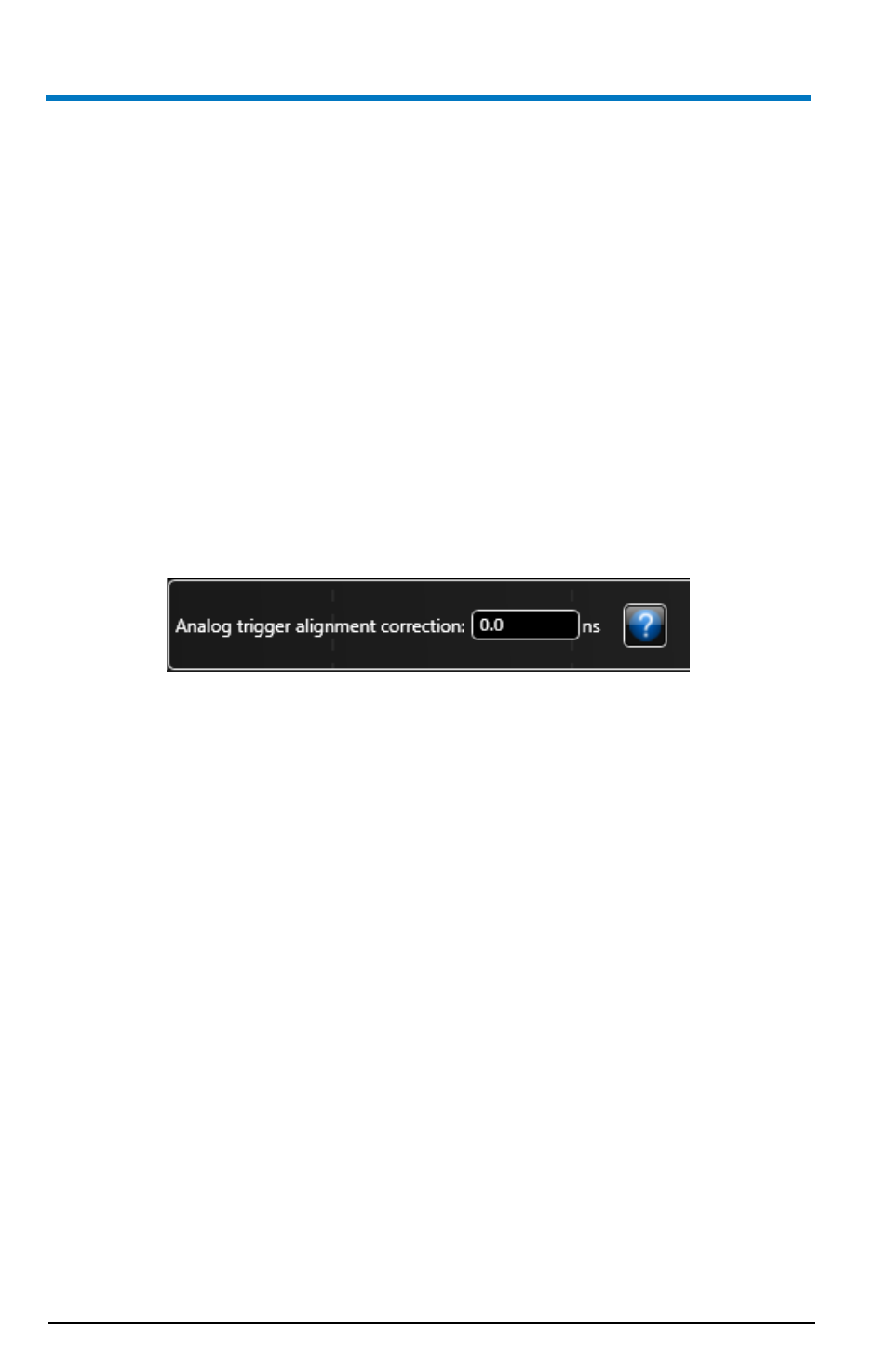

The Mixed Signal Setup Dialog
Located under Setup → Mixed Signal on the menu bar, this function shows
the Mixed Signal Setup Dialog where you can specify (in nanoseconds) an
analog trigger alignment correction value. This setting can be used to fine-
tune analog data acquired from the oscilloscope to the data from the
digital pod (for example to compensate if a different length of cross-trigger
cable is used). Positive values shift the analog trigger point later in time and
make the analog data move earlier in time relative to the digital data on
the Waveform Display Area. Negative value behaves inversely.
Help
Help information is accessed under Help on the menu bar.
Access the User Manual to conveniently retrieve this same documentation
or click About LogicStudio for the software version and Teledyne LeCroy
contact information.
Tell Teledyne LeCroy
Under Help on the menu bar, the Tell Teledyne LeCroy option is always
available for providing your feedback. It creates and sends an email to
LogicStudio support at Teledyne LeCroy. You can even automatically attach
your current setup and data with your feedback.
