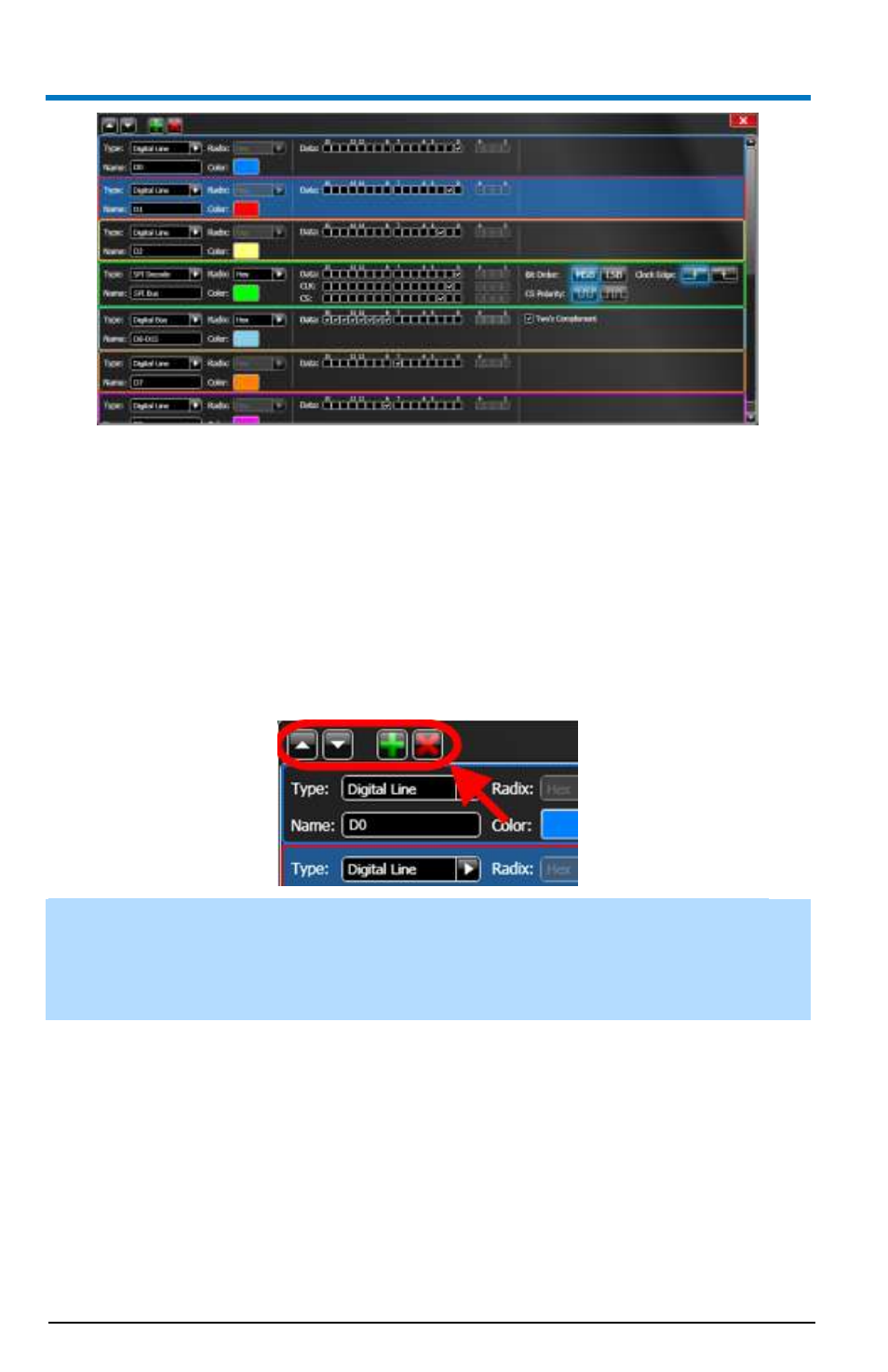

The Signals list allows you to conveniently configure all the signals at the
same time. Each row represents a single signal. Inside a single row, you can
modify the signal Type, Name, Color, and Source Channel(s), along with
additional options depending on the signal Type selected.
Supported signal Types include Digital Line, Digital Bus, Digital Wave,
Analog Channel, and I2C/SPI/UART Decodes.
Buttons at the top of the Signals list window allow you to add, delete, and
reorder the list.
NOTE : Making any modifications to the Signals List or the Signal Setup in
any way (even adding new signals) immediately affects currently displayed
acquisition data on the Waveform Display Area without requiring a refresh
from the device(s).
Instrument
The Instrument setup button shows a configuration screen where you can
configure how the digital instrument samples data - including the half/full
channel mode selection and setting threshold levels. Changes made on the
Instrument setup screen take effect on the next acquisition after you click
Apply or OK.
